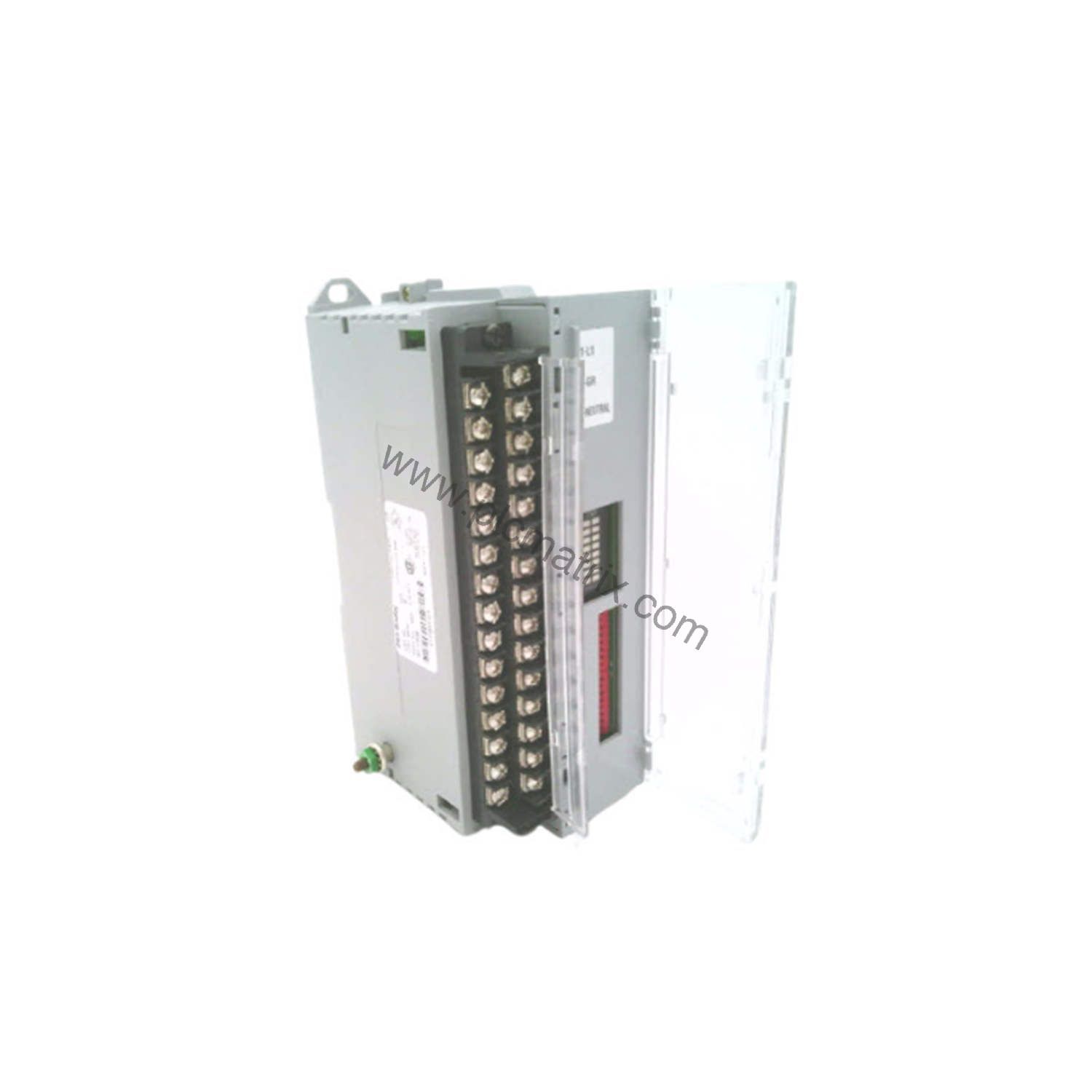

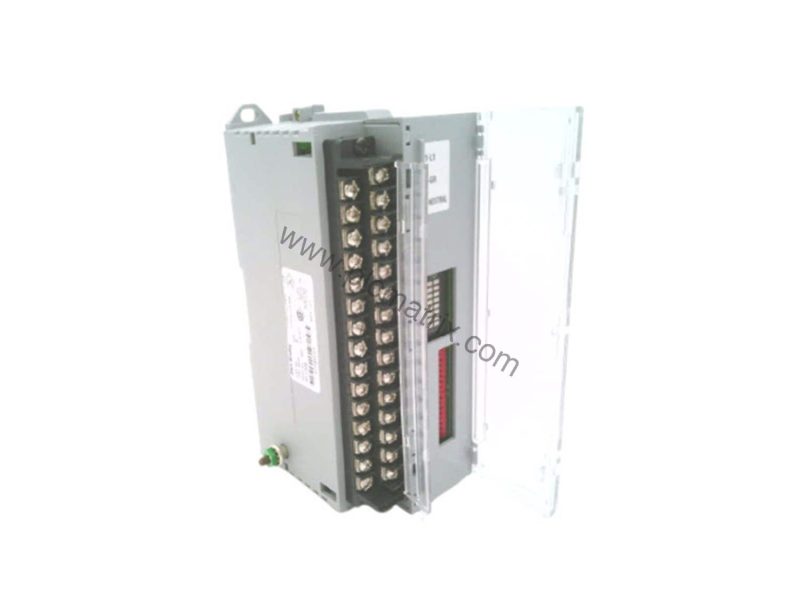

Allen-Bradley 1791-32A0 120VAC Discrete Input Block I/O Module

Product Overview

When building or expanding a distributed control system, the cost of wiring and maintenance can quickly escalate. The Allen-Bradley 1791-32A0 discrete input block I/O module addresses this challenge by consolidating 32 input points into a single, self-contained unit. Part of the 1791 Block I/O series, this module integrates the power supply, signal conditioning, and Remote I/O (RIO) communication interface, reducing installation complexity and material costs. With 32 channels operating at 120VAC, it directly connects to industrial sensors and switches, eliminating the need for separate I/O racks in many applications.

Technical Specifications

The 1791-32A0 features thirty-two (32) 120VAC input channels organized into four (4) groups of eight (8) channels each. Each channel accepts an on-state voltage range of 79-132VAC at 47-63 Hz. The external supply voltage is 85-132VAC, 47-63 Hz, with a current draw of 150 mA. Power dissipation is 13.62 Watts, and thermal dissipation is 46.44 BTU/hr. The module supports Remote I/O (RIO) protocol for communication with PLC-2, PLC-3, PLC-5/250, and PLC-5 family controllers, as well as SLC 5/02 modular controllers.

Cost-Effective Distributed Architecture

By using the 1791-32A0, you reduce the number of field wiring runs back to a central PLC chassis. Each block handles 32 inputs locally, communicating over a single RIO cable. This lowers copper costs, reduces installation labor, and simplifies troubleshooting. The module's 13.62W dissipation also means lower energy costs compared to multiple discrete I/O modules. For facilities with dozens of I/O points spread across a plant floor, the savings in cabling and panel space alone can justify the investment.

Installation and Mounting

The 1791-32A0 mounts on a standard DIN rail or directly to a panel using its integrated mounting slots. Connect the external power supply (85-132VAC, 47-63 Hz) to the dedicated terminals. The removable terminal strips on the left and right sides facilitate quick wiring of input field devices and RIO communication. Configure the starting I/O group, rack number, and communication rate using the two onboard switch assemblies. Use 14 AWG stranded wire with a maximum insulation thickness of 3/64 inch for reliable connections.

Compatibility and Integration

This module works with a wide range of Allen-Bradley programmable controllers, including PLC-2, PLC-3, PLC-5/250, and PLC-5 families, as well as SLC 5/02 modular controllers. The single Remote I/O (RIO) port provides isolation of 1250 VAC between I/O groups and between I/O group and logic, and 500 VAC between power supply and RIO port. This isolation protects against ground loops and voltage transients, enhancing system reliability. The module's half-cycle dropout capability (26 ms on-to-off delay) ensures stable operation even with brief power interruptions.

Maintenance and Reliability

Routine inspection of the 1791-32A0 should focus on verifying the input status LEDs and communication indicator. The module operates in temperatures from 0-60°C and can be stored from -40-85°C, with non-condensing relative humidity of 5-95%. These environmental tolerances reduce the risk of failure in typical industrial settings. Because the block I/O design minimizes external wiring, there are fewer points of failure compared to traditional rack-based I/O. Periodic cleaning of the enclosure and checking for loose connections will extend service life and reduce unplanned downtime.

Selection Guide and Purchasing Advice

Before ordering the 1791-32A0, verify that your controller supports Remote I/O (RIO) protocol and that the total I/O count and scan time meet your application requirements. This module is ideal for applications needing 32 discrete 120VAC inputs in a compact, distributed format. BluePLC Industrial stocks the 1791-32A0 and can provide current availability and lifecycle status. Contact our team for assistance with compatibility or to discuss volume pricing. For complete technical specifications, please contact BluePLC Industrial.
