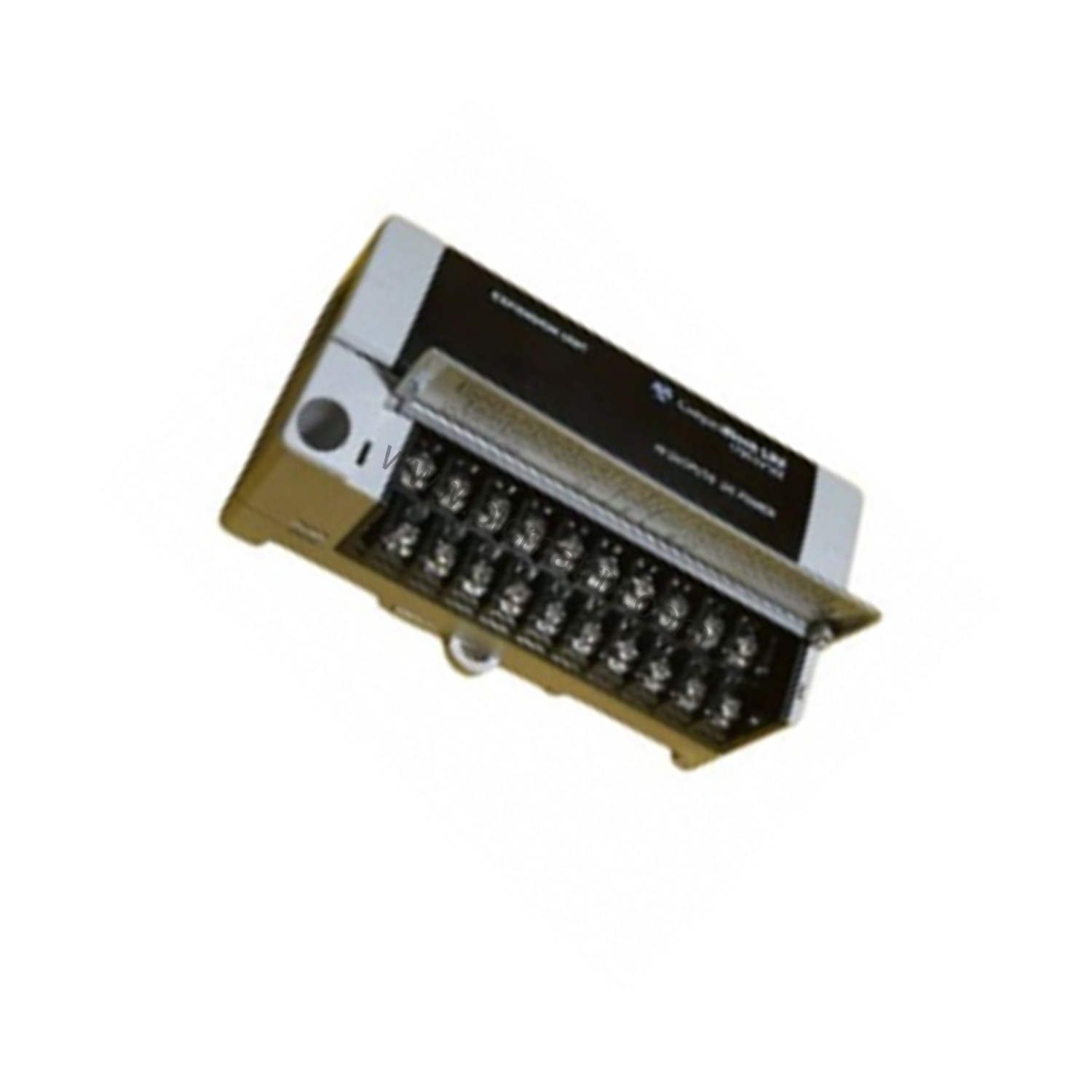

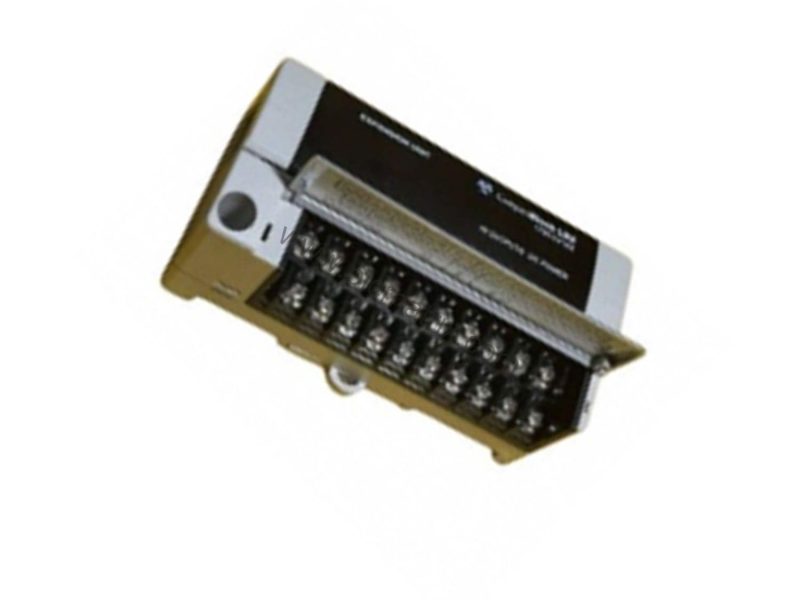

Allen-Bradley 1790D-T4T0 4-Channel Thermocouple Base Module for DeviceNet

Product Overview

When precise temperature monitoring is critical in industrial processes, the Allen-Bradley 1790D-T4T0 4-channel thermocouple base module for DeviceNet delivers reliable performance. As part of the CompactBlock LDX family, this I/O module connects up to four independent thermocouples, converting millivolt signals into digital data for central processors via DeviceNet. Maintenance engineers value its straightforward design and robust construction, which simplify integration and reduce downtime.

Technical Specifications

The 1790D-T4T0 provides four thermocouple or millivolt input channels with a range of -76.50 to +76.50 mV. It supports thermocouple types B, E, J, K, R, S, T, N, and 10 µV sensors. Resolution is 16 bits (0.1 °C/bit or 0.1 °F/bit) using a 20-bit Sigma-Delta modulation converter. Module scan time is 140 ms per channel with a 60 Hz notch filter. Overall accuracy is 0.2% full scale over 0 to 55 °C. The module includes settable notch filters (10 Hz default, 25 Hz, 50 Hz, 60 Hz, 100 Hz, 250 Hz, 500 Hz) and open wire detection indicated as an out-of-range message. Cold junction compensation range is 0 to 70 °C. Input impedance is 5 mΩ. DeviceNet power supply is 24 V DC nominal (11 to 28.8 V DC range), with 1.2 W max dissipation at 28.8 V DC. Field power is 24 V DC nominal (21.6 to 26.4 V DC), with 1.5 W max dissipation at 26.4 V DC. Isolation includes photocoupler isolation for I/O to logic with a type test of 1250 V AC RMS for 60 seconds; DeviceNet to logic and field power are nonisolated. Indicators include four red/green I/O status LEDs. Wiring uses a terminal block (M3.0) with screw torque of 7 lb-in max, using copper or copper-clad aluminum conductors.

Industry Applications

In plastic injection molding, the 1790D-T4T0 monitors mold temperatures to ensure consistent part quality. In chemical processing, it tracks reactor temperatures, providing critical data for safety and yield. For maintenance engineers, the module's open wire detection simplifies troubleshooting, reducing unplanned stops.

Installation and Setup

Mount the 1790D-T4T0 on a DIN rail within the specified temperature range of 0 to 55 °C. Connect thermocouples to the terminal block, ensuring proper polarity and secure screw torque (7 lb-in max). Use copper or copper-clad aluminum conductors. Supply 24 V DC DeviceNet power within 11 to 28.8 V DC and field power within 21.6 to 26.4 V DC. Configure notch filters via software to match your electrical noise environment (e.g., 60 Hz). Verify open wire detection by simulating a disconnected sensor.

Maintenance and Reliability

From a maintenance perspective, the 1790D-T4T0 requires minimal routine care. Periodically inspect wiring connections and check for loose terminals. Clean the enclosure with a dry cloth; avoid solvents. Monitor I/O status LEDs for red fault indications. The module's robust isolation and wide operating range contribute to long service life, reducing total cost of ownership.

Compatibility and Integration

The 1790D-T4T0 integrates seamlessly with DeviceNet networks, connecting to Allen-Bradley controllers such as CompactLogix or ControlLogix. It works with any DeviceNet scanner that supports generic I/O modules. For maintenance engineers, this plug-and-play compatibility simplifies upgrades and reduces integration time.

Selection Guide and Purchasing Advice

Before ordering, verify that your system supports DeviceNet and that the power supply meets the 24 V DC requirements. Confirm thermocouple types match your sensors. For current lifecycle status and availability, contact BluePLC Industrial, a trusted supplier of industrial automation parts. They can also advise on compatible cables and accessories.
