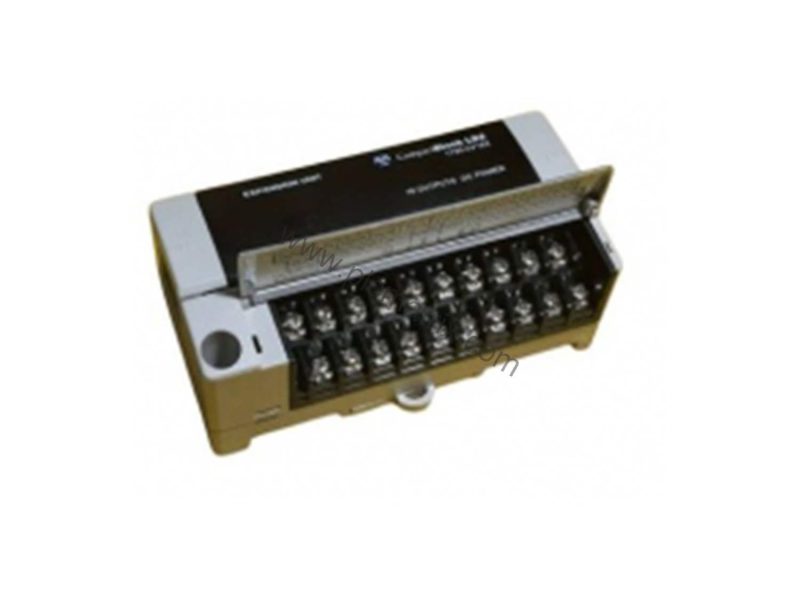

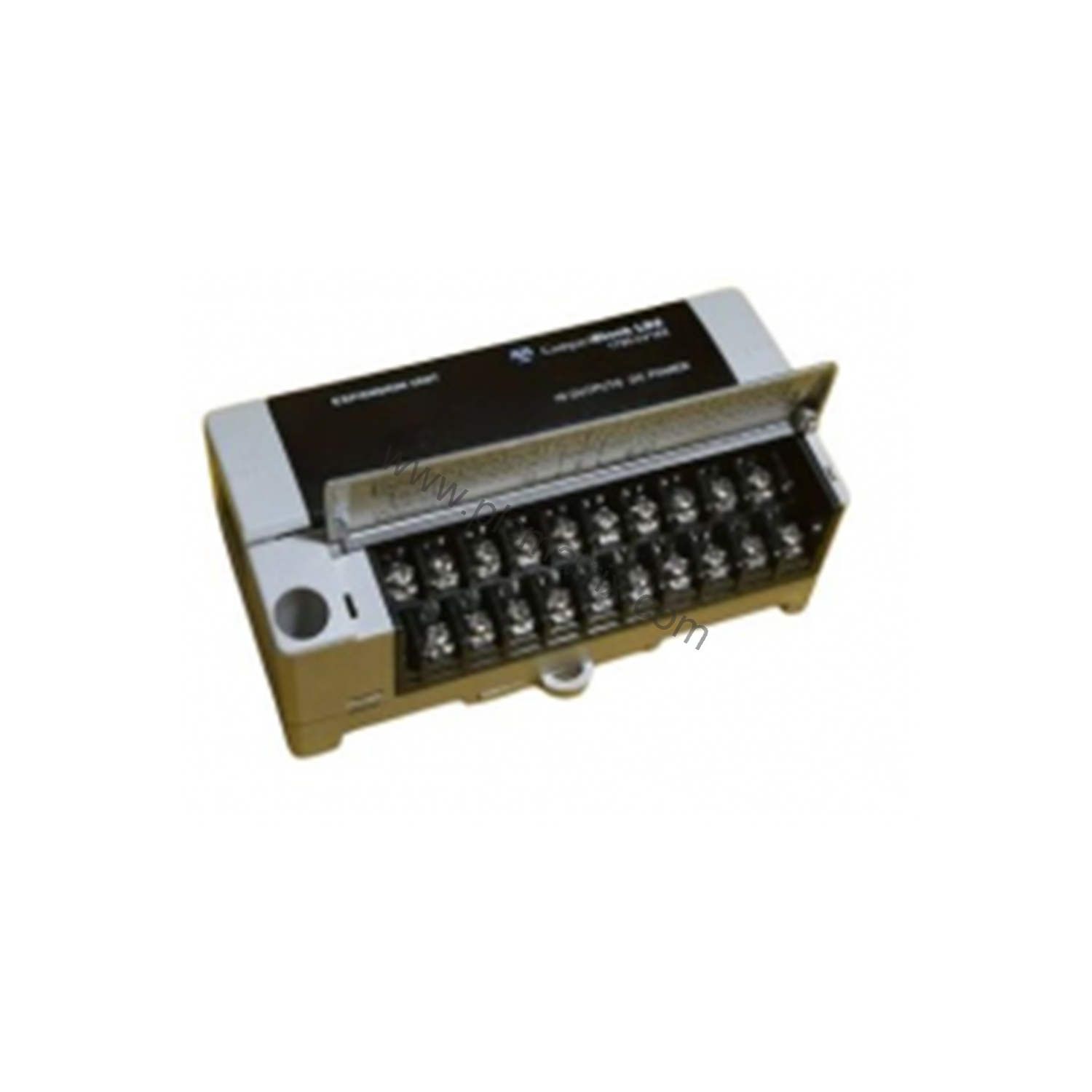

Allen-Bradley 1790D-T0V16 24V DC 16 Sinking Output Module

Introduction

When a manufacturing line experiences intermittent output failures due to electrical noise or ground loops, the Allen-Bradley 1790D-T0V16 provides a reliable solution. This 24V DC 16-point sinking output module is part of the 1790D series, designed for demanding industrial environments where precise control of actuators, solenoids, and indicators is essential. With its robust isolation and clear status indicators, it helps maintain uptime and simplifies troubleshooting.

Technical Specifications Breakdown

The 1790D-T0V16 offers 16 nonisolated sinking outputs, each rated at 0.5 A maximum. The on-state voltage ranges from 10V DC minimum to 28.8V DC maximum, with a nominal 24V DC. On-state voltage drop is a low 0.5V DC maximum, ensuring efficient power delivery. Off-state leakage is limited to 0.5 mA maximum, preventing false triggering. Output signal delay is fast: off to on in 0.5 ms maximum, and on to off in 1.0 ms maximum, suitable for high-speed applications.

The module uses photocoupler isolation between I/O and logic, with an isolation voltage of 1250V AC RMS, providing excellent noise immunity. Each output channel can sink up to 0.5 A, with a maximum of 4.0 A per common terminal. The common configuration is 8 points per 2 COM groups, allowing flexible wiring. Sixteen green LED indicators provide clear visual status for each output.

Industry Applications

In automotive assembly lines, the 1790D-T0V16 controls pneumatic valves and conveyor solenoids with its fast switching and high current capacity. In packaging machinery, it drives multiple actuators simultaneously, while the photocoupler isolation prevents noise from motor drives from corrupting the control logic. The module's compact design and terminal block wiring simplify integration into existing panels.

Installation & Setup Guidance

Mount the 1790D-T0V16 securely on a DIN rail or panel. Connect field power to the 24V DC nominal supply, ensuring voltage stays within 10 to 28.8V DC. Use copper or copper-clad aluminum conductors and tighten terminal block screws to a maximum torque of 7 lb-in. Wire sinking outputs to the load's positive side, with the module's output providing the ground path. Verify polarity before powering up.

Maintenance & Reliability

Periodically inspect the terminal block connections for tightness and signs of corrosion. Check the green status LEDs to confirm each output is functioning. The module's solid-state design has no moving parts, reducing wear. Ensure ambient temperature and humidity stay within the module's operating range to maximize lifespan. Regular system testing helps catch issues early.

Selection Guide & Purchasing Advice

Before purchasing the 1790D-T0V16, verify your system's voltage requirements and output current needs. This module requires a 24V DC field supply and is compatible with Allen-Bradley 1790D base modules. For complete technical specifications, please contact BluePLC Industrial. We stock genuine Allen-Bradley products and can help with availability and replacement options.
