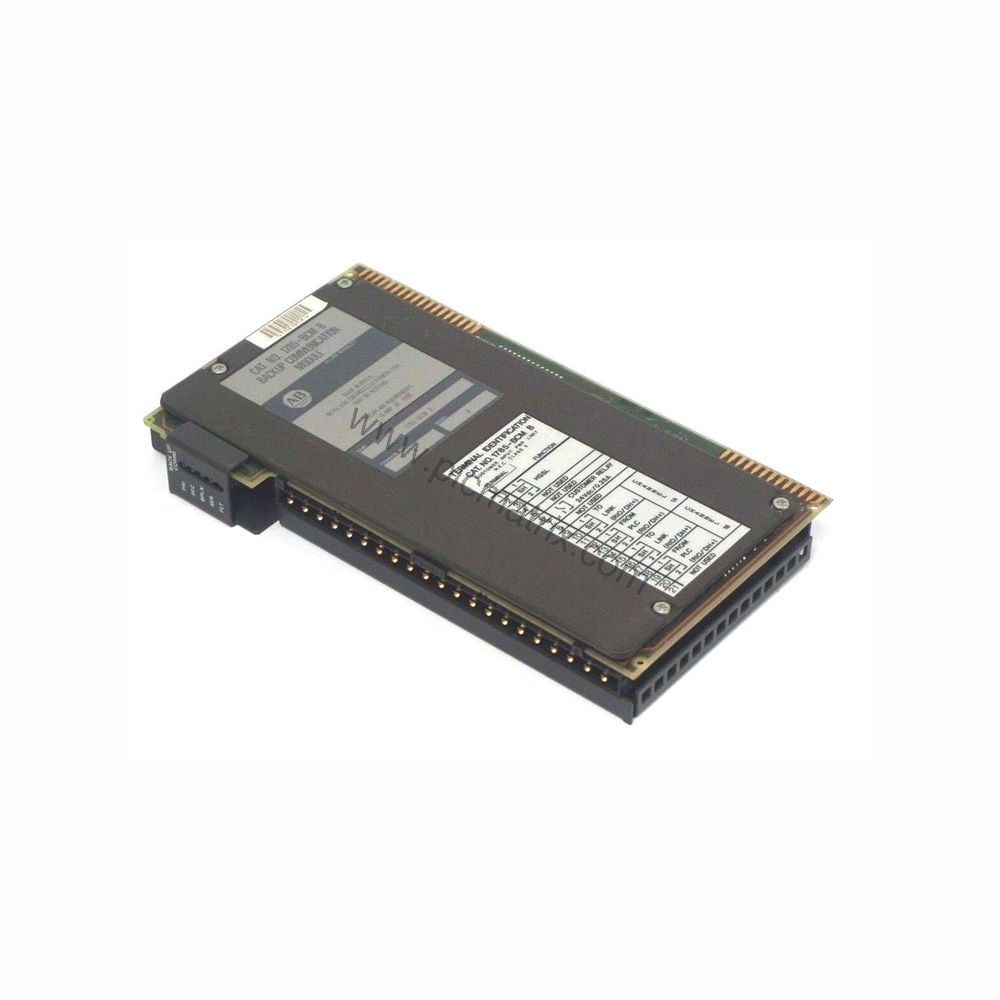

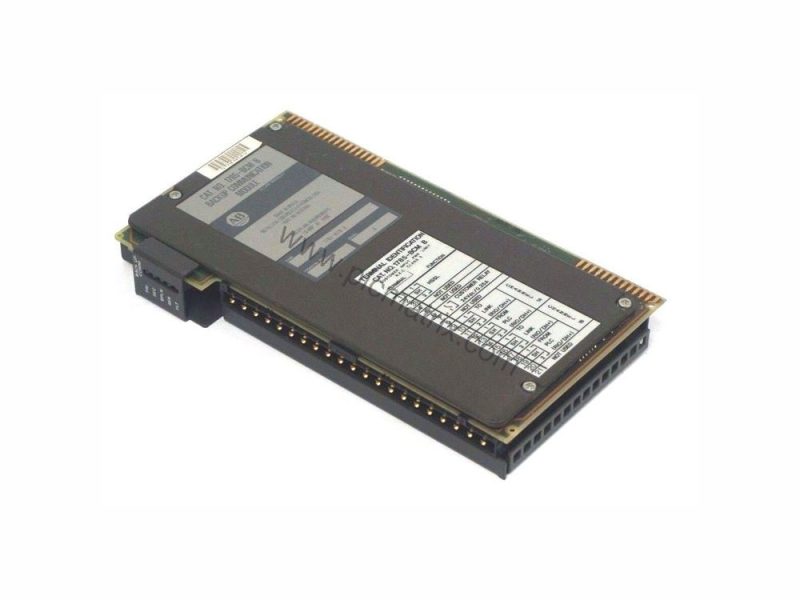

Allen-Bradley 1785-L80C15 ControlNet PLC5 Processor for Large-Scale Automation

Solving High-Density I/O Challenges in Large-Scale Automation

When a manufacturing facility needs to coordinate thousands of discrete I/O points across multiple remote racks while maintaining high-speed data exchange, the Allen-Bradley 1785-L80C15 ControlNet PLC5 Programmable Logic Controller provides a proven solution. This processor handles up to 3072 input and output devices in any mix, or 3072 inputs and 3072 outputs in complementary mode, making it suitable for complex applications like assembly lines, material handling, and process control.

Technical Specifications Breakdown

The 1785-L80C15 features a maximum user memory of 100 Kilowords, stored in battery-backed static RAM to retain logic and data during power loss. Program scan times are 0.5 ms per K word for bit logic and 2 ms per K word for typical instructions, ensuring responsive control. The controller supports 2-slot, 1-slot, and 1/2-slot hardware addressing, allowing flexible I/O module configurations. For 2-slot addressing, any mix of 8-pt and 16-pt modules can be used; 1-slot addressing accommodates 8-16 pt modules with 32-pt modules in I/O pairs; and 1/2-slot addressing allows any mix of 8, 16, or 32 pt modules.

The module is equipped with multiple communication ports: one serial interface supporting DF1 protocol, one Data Highway Plus (DH+) port, one Remote I/O (RIO) port, DH capability using 1785-KA, and two ControlNet ports using RG6 coax media cable. DH+ and RIO support data rates of 57.6 kbits/s, 115.2 kbits/s, and 230.4 kbits/s, while ControlNet operates at 5 Mbps. The processor also includes a ControlNet Network Access Port (RJ45 connector) and dedicated ControlNet Redundant Media Ports (BNC) for network redundancy.

Industry Applications

In automotive assembly plants, the 1785-L80C15 coordinates hundreds of weld controllers, conveyors, and robotic cells across multiple remote I/O racks using ControlNet's deterministic 5 Mbps network. The 0.5 ms per K word scan time ensures tight synchronization of high-speed operations. In water treatment facilities, the processor manages up to 3072 analog and discrete I/O points for pumps, valves, and sensors, with the ability to force up to 3072 analog I/O points and 50176 nonforcible points for troubleshooting and commissioning.

Installation & Setup Guidance

The 1785-L80C15 installs in the left-most slot of a 1771-A1B, -A2B, -A3B, -A3B1, or -A4B chassis, occupying a single slot. Keying requirements are between 40 and 42 and between 54 and 56. The module supports Bulletin 1771 I/O, 1794 I/O, 1746 I/O, and 1791 I/O, including 8-, 16-, and 32-point modules and intelligent modules. For I/O scan times, ControlNet I/O averages 0.5 ms per rack, while Universal Remote I/O ranges from 3 ms at 230.4 kbits/s to 10 ms at 57.6 kbits/s. The maximum number of I/O chassis is 125, with up to 60 Universal Remote chassis.

Maintenance & Reliability

The 1785-L80C15 includes a battery compartment for the replaceable Allen-Bradley 1770-XYC battery, which maintains memory during power-down. The module operates in temperatures from 0 to 60 °C (32 to 140 °F) and can be stored from -40 to 85 °C (-40 to 185 °F). Relative humidity tolerance is 5-95% non-condensing. It withstands operating shock of 30 g (3 pulses, 11 ms) and nonoperating shock of 50 g (3 pulses, 11 ms), with ESD immunity of 4 kV contact discharges. Regular inspection of the battery status indicator (red LED) and periodic testing of the processor RUN/FAULT indicator are recommended.

Compatibility & Integration

The 1785-L80C15 integrates seamlessly with other Allen-Bradley controllers via DH+, RIO, and ControlNet networks. It supports controller redundancy for critical applications. Memory modules 1785-ME32, -ME64, and -M100 provide EEPROM program backup. The serial port supports RS-232-C/422-A/423-A for connection to HMIs, SCADA systems, or programming terminals. The Control Coprocessor Expansion Port allows additional processing capabilities.

Selection Guide & Purchasing Advice

Before purchasing the 1785-L80C15, verify that your existing chassis and I/O modules are compatible. Confirm the required memory capacity (up to 100 Kilowords) and communication protocol needs (DH+, RIO, ControlNet). The module weighs approximately 3 lbs, 2 oz (1.42 kg). For current lifecycle status and availability, contact BluePLC Industrial. We stock the 1785-L80C15 and related accessories such as the 1770-XYC battery and 1785-ME series memory modules.
