Allen-Bradley 1785-L80B PLC-5/80 Enhanced Controller for Reliable Automation

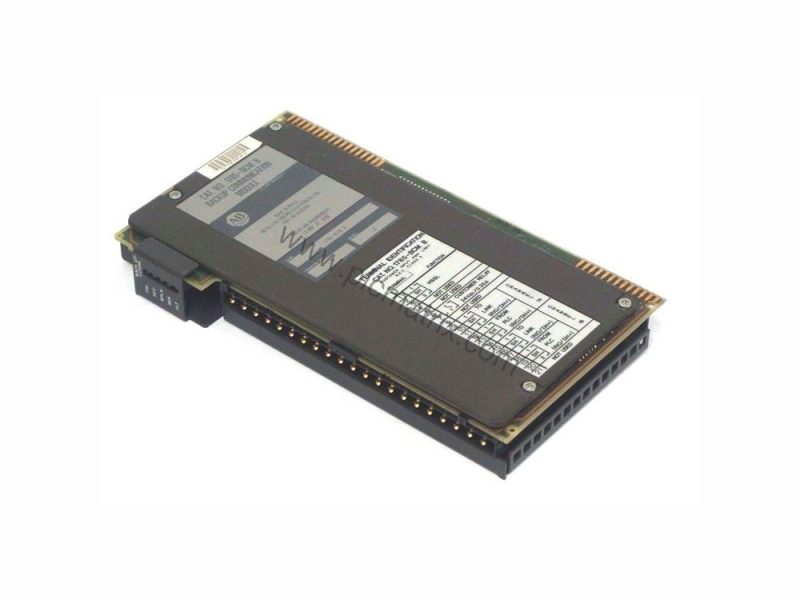

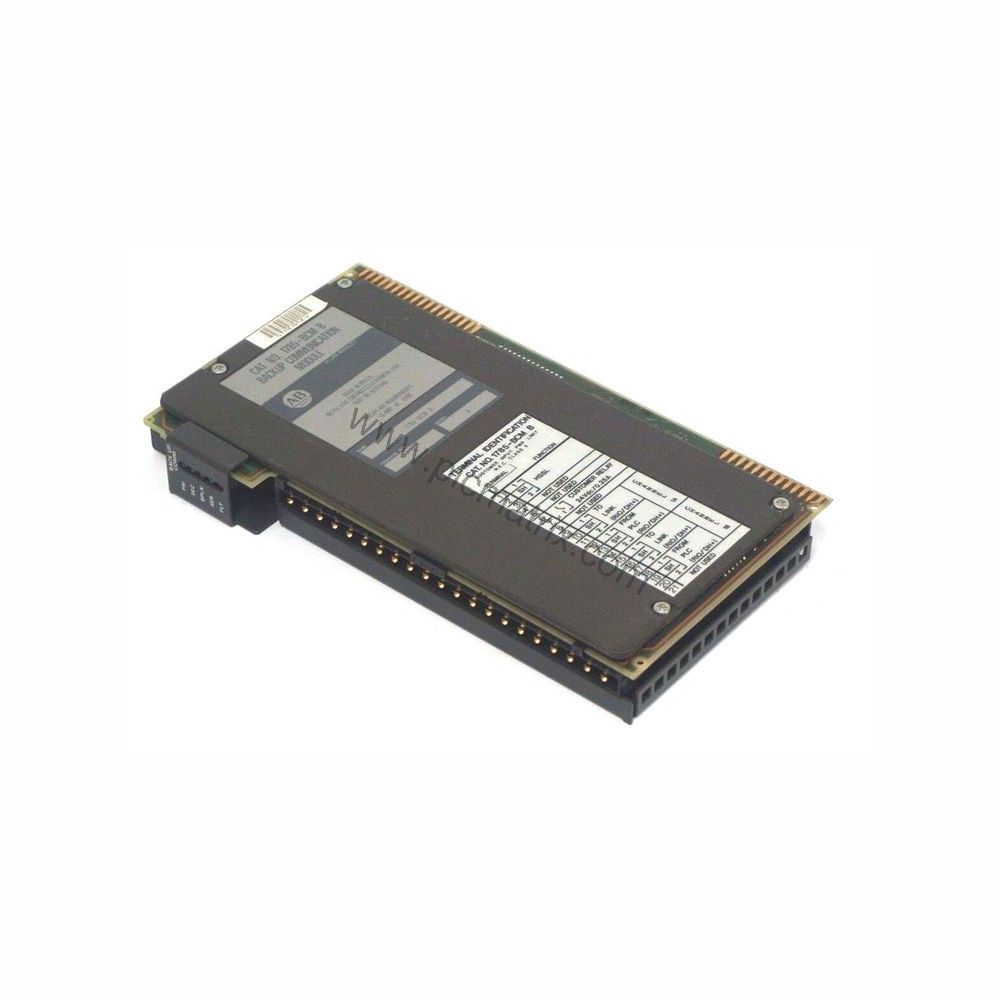

Product Overview

When your control system demands reliable communication with many remote I/O devices and Data Highway Plus networks, the Allen-Bradley 1785-L80B delivers. This enhanced PLC-5/80 controller from the PLC-5 series provides 100 Kilowords of user memory and supports up to 3072 total I/O in any mix or 3072 inputs plus 3072 outputs in complementary mode. As a maintenance engineer, you need a controller that simplifies troubleshooting and keeps production running—the 1785-L80B is built for that.

Technical Specifications

The 1785-L80B offers a robust set of specifications for demanding applications. It features four DH+/Remote I/O ports (channels 1A, 1B, 2A, 2B) configurable as adapter or scanner, plus one serial port supporting RS-232, RS-423, and RS-422A standards. Supported protocols include DF1, ASCII, Data Highway Plus, and Remote I/O. The controller handles up to 32 I/O racks and 93 total I/O chassis, with a maximum analog I/O count of 3072. I/O scan time per rack is 10 ms at 57.6 kbits/s, 7 ms at 115.2 kbits/s, and 3 ms at 230.4 kbits/s. Power dissipation is 12 W, and backplane current draw is 2.3 A. Battery-backed static RAM ensures program retention, and EEPROM backup is available using 1785-ME16, -ME32, -ME64, or -M100 memory modules. Controller redundancy is supported for high-availability systems.

Industry Applications

In manufacturing plants, the 1785-L80B excels at coordinating multiple remote I/O racks across large production lines. For example, in a material handling system, it can manage conveyor zones, sensors, and actuators spread over 32 remote racks, using DH+ for peer-to-peer communication with other PLC-5 controllers. In process industries, its 3072 analog I/O capacity makes it suitable for monitoring and controlling temperature, pressure, and flow loops. The controller's ability to act as both scanner and adapter on its four ports simplifies system design and reduces wiring costs.

Installation & Setup Guidance

Install the 1785-L80B in a compatible 1771-A1B, 1771-A2B, 1771-A3B, 1717-A3B1, or 1771-A4B chassis. Use supported power supplies such as 1770-P1, 1770-P45, 1770-P5, 1771-PE, 1771-P4S1, 1771-P6S1, 1771-P4R, or 1771-P6R. When configuring the four communication channels, ensure all devices on a DH+ link operate at the same baud rate—cable length varies from 3048 m at 57.6 kbits/s to 762 m at 230.4 kbits/s. The front panel provides clear status indicators: BATT for battery, PROC for run mode (green) or fault (red), FORCE (amber) when I/O forces are active, and COMM for channel 0 communication.

Maintenance & Reliability

From a maintenance perspective, the 1785-L80B is designed for easy service. The battery-backed static RAM protects your program during power loss; replace the 1770-XYC battery periodically as part of routine maintenance. The front panel LEDs let you quickly diagnose communication or processor faults without opening the chassis. For long-term reliability, keep the controller in a clean, dry environment within the specified operating conditions. Regular inspection of the DH+ and serial connections helps prevent intermittent communication issues. When upgrading memory, use the 1785-ME16, -ME32, or -ME64 expansion modules to increase controller memory up to 64KWords.

Compatibility & Integration

The 1785-L80B integrates seamlessly with the PLC-5 ecosystem. It supports up to 32 remote I/O racks per link and communicates via DF1, ASCII, DH+, and Remote I/O protocols. The serial port (channel 0) can be configured for RS-232, RS-423, or RS-422A, making it compatible with programming terminals, HMI panels, and other serial devices. For system expansion, the control coprocessor expansion port allows additional functionality. When planning a new installation or upgrading an existing PLC-5 system, verify that your I/O modules and chassis are compatible with this enhanced controller.

Selection Guide & Purchasing Advice

Before purchasing the 1785-L80B, confirm your system's I/O count (up to 3072 total), number of remote racks (max 32), and communication requirements. If you need additional memory, order the appropriate 1785-ME16, -ME32, or -ME64 module. The controller requires a 1770-XYC battery for memory backup. For complete technical specifications and current availability, contact BluePLC Industrial. Our team can help you verify lifecycle status and recommend the best options for your application.
