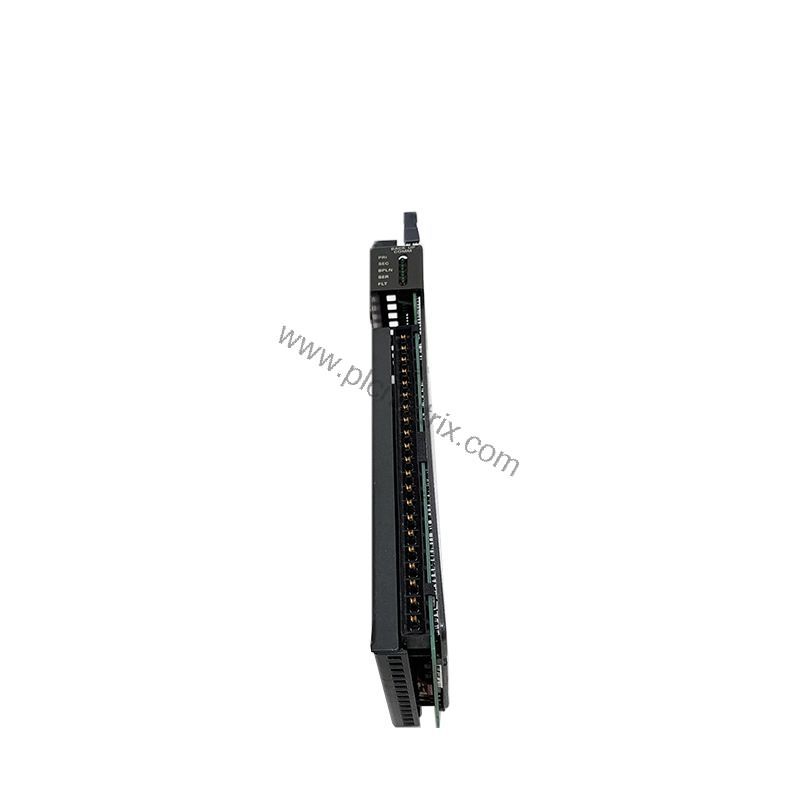

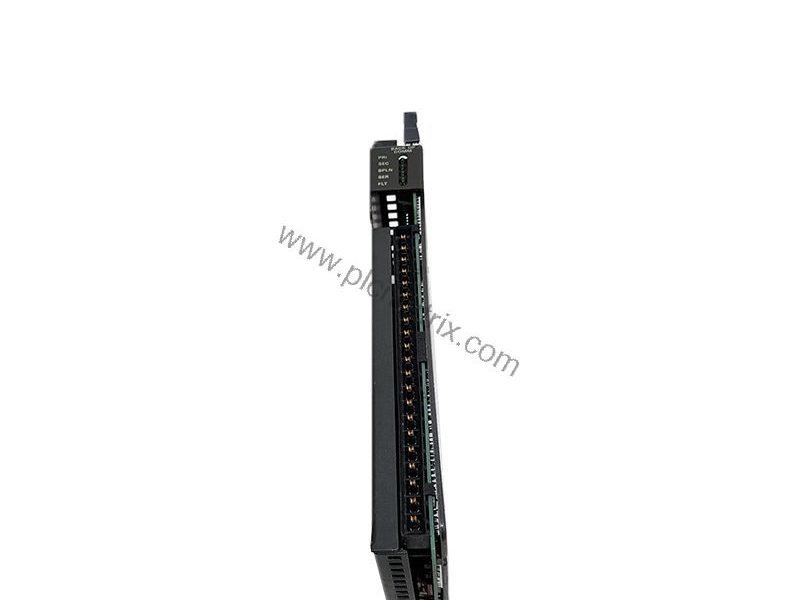

Allen-Bradley 1785-L60B PLC5 Enhanced Ethernet Controller Overview

Product Introduction

When your medium to large scale automation system requires reliable control and flexible communication, the Allen-Bradley 1785-L60B delivers. This enhanced Ethernet PLC5 Programmable Logic Controller is designed to handle complex processes with up to 64KWords of user memory and support for 3072 input and output signals in any mix, or 3072 inputs plus 3072 outputs in complementary mode. Built by Rockwell Automation, the 1785-L60B integrates seamlessly into existing PLC5 architectures, providing a robust solution for demanding industrial environments.

Technical Specifications Breakdown

The 1785-L60B offers a maximum user memory of 64 Kilowords, backed by battery-backed static RAM to protect your program during power loss. It supports up to 24 I/O racks and a maximum of 93 total I/O chassis, with 92 remote I/O chassis for distributed control. The controller handles a maximum total I/O of 3072 (any mix) or 3072 in plus 3072 out in complementary mode, with analog I/O also reaching 3072 points. I/O scan time per rack varies by baud rate: 10 ms at 57.6 kbits/s, 7 ms at 115.2 kbits/s, and 3 ms at 230.4 kbits/s, ensuring fast response for time-critical applications.

Communication and Integration

The 1785-L60B is equipped with four DH+/Remote I/O ports (configurable as adapter or scanner), one serial port supporting RS-232, RS-423, and RS-422A, and two programming terminals. Supported protocols include DF1, ASCII, Data Highway Plus (DH+), and Remote I/O (RIO), enabling connection to a wide range of devices and networks. The DH+ and RIO ports use 3-pin terminals with 1770-CD or Belden 9463 cable, while the serial port uses a 25-pin sub-D connector. This flexibility simplifies integration into existing plant networks and reduces wiring complexity.

Industry Applications

In manufacturing facilities, the 1785-L60B controls assembly lines, material handling systems, and packaging machinery, leveraging its 3072 I/O capacity to manage numerous sensors and actuators. For process industries like chemical or food processing, the controller handles batch control and monitoring tasks, with battery-backed memory ensuring data integrity during outages. Its multiple communication ports allow seamless connection to supervisory systems, reducing downtime and improving overall equipment effectiveness.

Installation and Setup Guidance

When installing the 1785-L60B, ensure the chassis is properly grounded and that the 1770-XYC battery is inserted before power-up. The controller supports three I/O addressing modes: 2-slot, 1-slot, and half-slot, allowing flexibility based on module types (8, 16, or 32-point modules). Use the 25-pin serial port for initial programming via DF1 or ASCII protocol. For DH+ networks, connect using the 3-pin terminals with the recommended cable. Verify that the maximum I/O chassis count of 93 (32 per link) is not exceeded to maintain reliable communication.

Maintenance and Reliability

The 1785-L60B features status LED indicators for battery (BATT), run/fault, force, and communication status, enabling quick diagnostics. The internal 1770-XYC battery discharges 30 days after the BATT LED activates, so replace it promptly to avoid memory loss. For critical applications, consider memory backup modules like the 1785-ME16 (16KWords), 1785-ME32 (32KWords), or 1785-ME64 (64KWords) to protect your program. The controller operates in temperatures from 0 to 60 °C (32 to 140 °F) and humidity of 5-95% non-condensing, with shock resistance of 30G and vibration tolerance of 2G at 10-500 Hz, ensuring durability in harsh environments.

Selection Guide and Purchasing Advice

Before purchasing the 1785-L60B, verify your system's I/O requirements and memory needs. The controller supports up to 64KWords of user memory, expandable with compatible modules. Ensure you have the correct battery (1770-XYC) and consider adding EEPROM backup for program security. For complete technical specifications and current availability, contact BluePLC Industrial. We stock genuine Allen-Bradley parts and can help you select the right components for your application.
