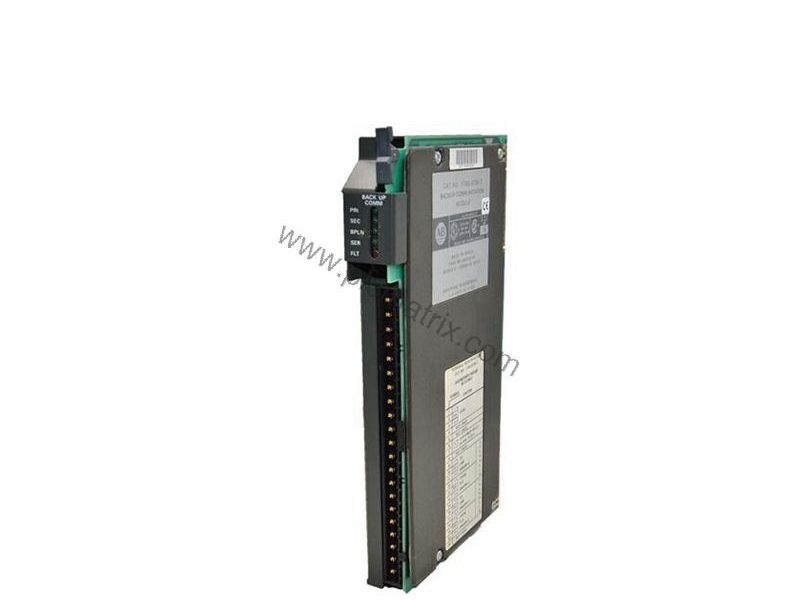

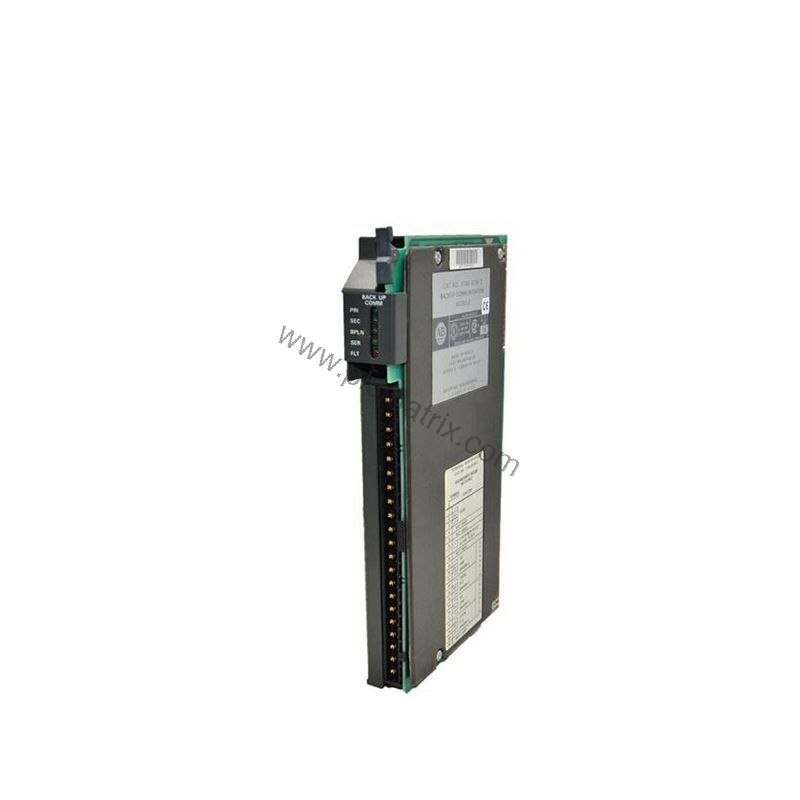

Allen-Bradley 1785-L46C15 PLC-5/46C ControlNet Processor Overview

Product Introduction

When industrial processes require reliable and high-performance control, the Allen-Bradley 1785-L46C15 delivers as a PLC-5/46C ControlNet processor with protected memory. This module from Rockwell Automation is designed to manage field device inputs and outputs efficiently within a 1771 I/O chassis. It features a 48-kiloword user memory capacity and supports both forcible and nonforcible I/O configurations, making it a versatile choice for complex automation systems.

Technical Specifications Breakdown

The 1785-L46C15 offers key specifications that define its performance. It provides a maximum user memory of 48 kilowords, with battery-backed static RAM for data retention. The processor supports up to 2048 forcible total I/O (any mix) and 48000 nonforcible analog I/O. ControlNet I/O scan time averages 0.5 ms per rack, while universal remote I/O scan times vary from 10 ms at 57.6 kbits/s to 3 ms at 230.4 kbits/s. The module draws 3.3 A backplane current at 5 V DC and has a thermal dissipation of 59 BTU/hour. Operating temperature ranges from 0 to 60 °C (32 to 140 °F), with storage from -40 to 85 °C (-40 to 185 °F). It weighs approximately 1.42 kg (3 lbs) and carries UL, CE, CSA, and C-TICK certifications.

Industry Applications

In manufacturing environments, the 1785-L46C15 excels at controlling discrete and analog I/O for assembly lines, material handling, and process control. Its ControlNet interface enables high-speed, deterministic communication for synchronized operations. For example, in a packaging line, the processor manages multiple I/O racks with minimal scan time, reducing cycle delays. Compared to older PLC-5 models without ControlNet, this processor offers faster remote I/O scanning and enhanced memory protection, improving overall system reliability.

Compatibility & Integration

The 1785-L46C15 integrates seamlessly with 1771, 1794, 1746, and 1791 I/O modules, supporting 8-point, 16-point, and 32-point configurations. It includes one RS-232-C/422-A/423-A port and a control coprocessor expansion port. The ControlNet port operates at 5 Mbit/s with up to 99 nodes per link (with repeaters). The remote I/O and DH+ ports support transmission speeds from 57.6 to 230.4 kbit/s. It also supports the Allen-Bradley 1785-CHBM ControlNet Hot Backup Cartridge for system redundancy.

Installation & Setup Guidance

When installing the 1785-L46C15, mount it in a compatible 1771 chassis using the keying pins 40 and 42 and pins 54 and 56. Ensure the backplane current does not exceed 3.3 A at 5 V DC. Configure the ControlNet network with proper termination and node addresses. For remote I/O, set the baud rate to match the scanner. Use the 1785-ME16, -ME32, -ME64, or -M100 EEPROM modules for program backup. Verify all connections before powering up to avoid communication errors.

Maintenance & Reliability

To maintain reliable operation, inspect the 1785-L46C15 periodically for dust accumulation and ensure adequate airflow around the chassis. The battery-backed SRAM retains user programs during power loss; replace the battery every 2-3 years as per manufacturer guidelines. The processor tolerates 30G operational shock and 1G vibration at 10-500 Hz, making it suitable for harsh industrial environments. Regular monitoring of thermal dissipation (59 BTU/hour) helps prevent overheating.

Selection Guide & Purchasing Advice

Before purchasing the 1785-L46C15, verify compatibility with your existing ControlNet network and I/O chassis. Confirm the required user memory (48 kilowords) meets your application needs. For redundancy, consider the 1785-CHBM hot backup cartridge. BluePLC Industrial offers this processor with certified quality and fast shipping. Contact their team for current availability and lifecycle status.
