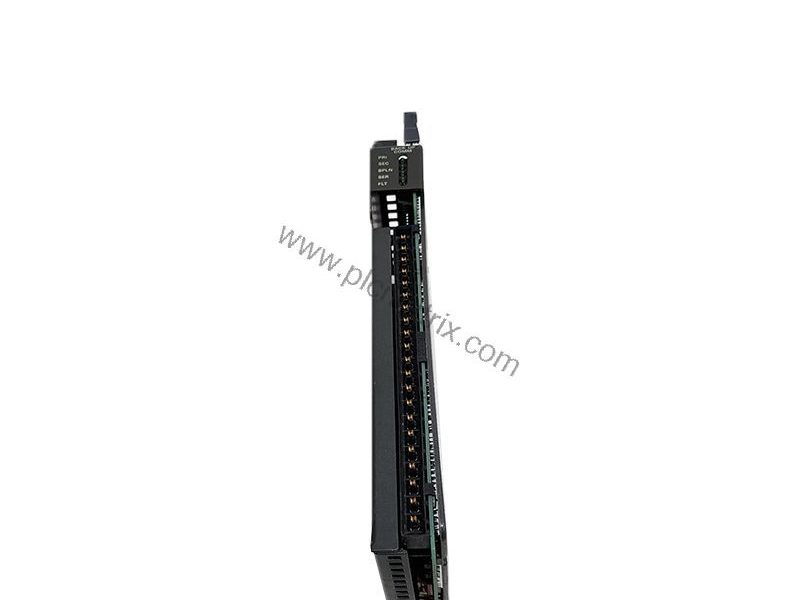

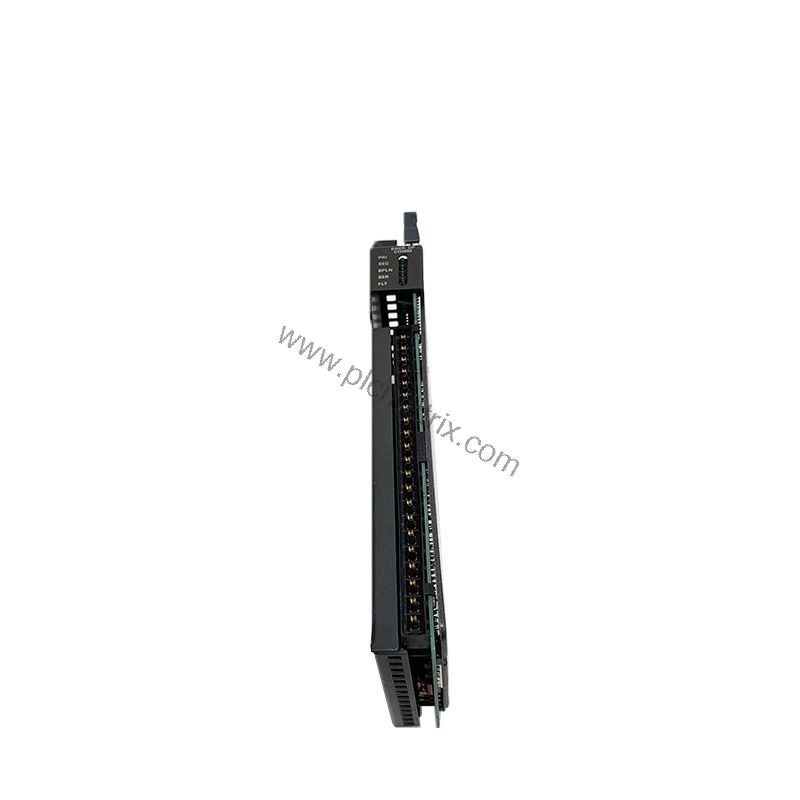

Allen-Bradley 1785-L40E PLC-5/40E Controller for Medium to Large Automation

Product Overview

Struggling to manage complex automation tasks across multiple devices? The Allen-Bradley 1785-L40E delivers reliable control for medium to large applications. This Programmable Logic Controller (PLC) from the PLC-5 family integrates seamlessly with a 1771 chassis, providing robust processing power and versatile connectivity.

The 1785-L40E features 48 KWords of user memory and supports up to 2048 I/O points in any mix or 2048 inputs plus 2048 outputs in complementary mode. It handles both discrete and analog devices, making it suitable for a wide range of industrial processes.

Technical Specifications Breakdown

Key specifications of the 1785-L40E include:

Memory: 48 KWords for storing control programs and data.

Backplane Current Load: 3.3A, ensuring efficient power usage within the chassis.

Power Dissipation: 17.3W, minimizing heat generation in the control cabinet.

Maximum I/O per Link: 32, allowing flexible device connections.

Battery: 1770-XYC for memory backup during power loss.

Power Supply Compatibility: 1771-P4S, -P6S, -P4S1, -P6S1.

These parameters ensure the controller operates reliably in demanding industrial environments.

Industry Applications

The 1785-L40E excels in manufacturing lines, process control, and material handling systems. For example, in a bottling plant, it coordinates conveyor belts, fillers, and labelers using its embedded communication ports. It supports Two DH+/Remote I/O ports, one serial port (RS-232, 423, 422A), and one Ethernet port for 10/100 Mbps networking. This connectivity enables integration with visualization systems and other Allen-Bradley controllers, streamlining operations.

Installation & Setup Guidance

Install the 1785-L40E into a compatible 1771 chassis such as 1771-A1B, -A2B, -A3B, -A3B1, or -A4B. Connect the appropriate power supply from the 1771-P4S, -P6S, -P4S1, or -P6S1 series. Ensure the backplane current load does not exceed 3.3A. Use the embedded ports for network connections: DH+/RIO for device-level control, serial for configuration, and Ethernet for higher-level communication. Refer to the manual for proper addressing modes (2-slot, 1-slot, half-slot) based on your I/O modules.

Maintenance & Reliability

Regularly inspect the 1770-XYC battery and replace it as needed to preserve memory. Keep the controller within its operating temperature range of 0 to 60 °C (32 to 140 °F) and non-condensing humidity of 5 to 95%. The unit withstands operational shock of 30G and vibration of 1G at 10 to 500 Hz. Periodic checks of connections and environmental conditions help maximize uptime.

Compatible Systems & Integration

The 1785-L40E integrates with 8-point, 16-point, 32-point, and 1771 intelligent I/O modules. It supports up to 61 I/O chassis (1 local, 60 remote) and 16 I/O racks. Communication protocols include DH+, Remote I/O, and Ethernet/IP with TCP/IP. This compatibility simplifies expansion and integration into existing Allen-Bradley networks.

For complete technical specifications for the 1785-L40E, please contact BluePLC Industrial.
