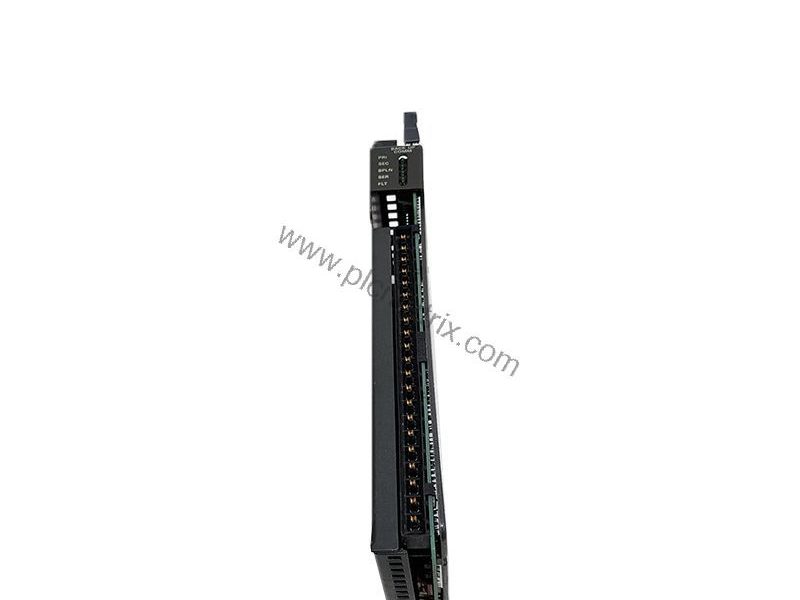

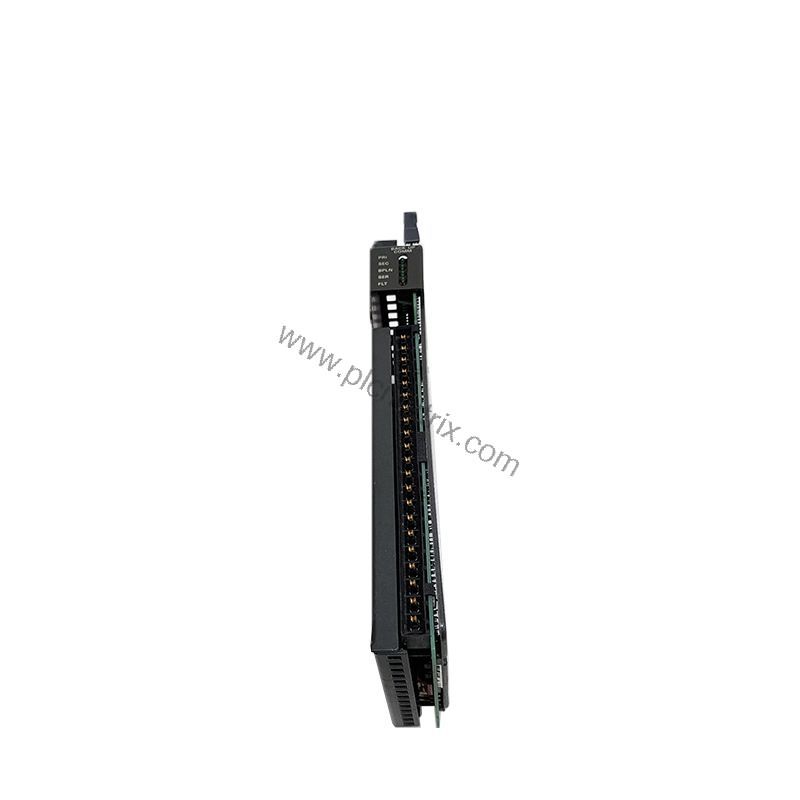

Allen-Bradley 1785-L40B PLC5 Controller – 48K Words, 2048 I/O

Product Introduction

As industrial automation evolved from relay panels to programmable logic controllers, the need for scalable, robust processing power became critical. The Allen-Bradley 1785-L40B, part of the trusted PLC5 family, emerged as a workhorse for medium to large applications. With 48K words of user memory and support for up to 2048 I/O points, this controller handles complex processes while maintaining reliable communication across multiple networks. Whether upgrading an existing line or building a new system, the 1785-L40B delivers the performance and flexibility that modern factories demand.

Technical Specifications Breakdown

The 1785-L40B offers several key specifications that define its capabilities:

Memory: 48 KWords of user memory, providing ample space for logic and data handling.

Maximum I/O: Supports 2048 total I/O in any mix, or 2048 inputs plus 2048 outputs in complementary mode, allowing flexible system design.

Backplane Current Load: 3.3A, ensuring compatibility with standard PLC5 chassis.

Power Dissipation: 17.3W, contributing to efficient thermal management within the enclosure.

Power Supply: Compatible with 1771-P4S, -P6S, -P4S1, and -P6S1 models.

Battery: Uses 1770-XYC for memory backup.

Maximum I/O per Link: 32 devices per remote I/O link.

Industry Applications

In manufacturing environments, the 1785-L40B excels at controlling assembly lines, material handling systems, and batch processes. Its 48K memory and 2048 I/O capacity allow it to manage multiple stations and sensors simultaneously. For example, in an automotive parts plant, the controller coordinates conveyor belts, robotic welders, and quality inspection stations, all while communicating over four independent DH+ or Remote I/O networks. This reduces wiring complexity and improves system uptime.

In water and wastewater treatment, the 1785-L40B handles pump sequencing, level monitoring, and chemical dosing. The serial port, configurable for RS-232, RS-423, or RS-422A, enables connection to SCADA systems for remote supervision. The controller's robust temperature range (operating 0...60 °C) ensures reliable performance in unconditioned pump houses.

Installation & Setup Guidance

Mount the 1785-L40B into a compatible PLC5 chassis such as 1771-A1B, -A2B, -A3B, -A3B1, or -A4B. Ensure the backplane current load of 3.3A does not exceed the chassis power supply rating. Connect the four DH+/RIO ports to separate networks for independent communication. Use the serial port for point-to-point connections with programming terminals or operator interfaces. Install the 1770-XYC battery to retain memory during power loss. For non-volatile backup, insert an EEPROM memory card (1785-ME16, -ME32, -ME64, or -ME100) into the expansion port.

Maintenance & Reliability

To maximize uptime, inspect the controller periodically for dust accumulation and ensure adequate ventilation. Replace the 1770-XYC battery every two years or as indicated by the low-battery alarm. Verify that the backplane current load remains within limits when adding I/O modules. The 1785-L40B's operating temperature range of 0...60 °C allows installation in most industrial environments without active cooling. Regular backup of user programs to EEPROM cards protects against data loss.

Compatibility & Integration

The 1785-L40B integrates seamlessly with PLC5 chassis and I/O modules. It supports up to 61 total I/O chassis, with one local rack and up to 28 remote I/O racks. Each remote link can handle 32 I/O devices. The four DH+/RIO ports can be configured as adapter or scanner, enabling the controller to act as master or slave on separate networks. The serial port supports RS-232, RS-423, and RS-422A standards for flexible connectivity to HMI panels, drives, and other serial devices. For expanded memory, use 1785-ME16, -ME32, -ME64, or -ME100 EEPROM cards.

Selection Guide & Purchasing Advice

Before purchasing the 1785-L40B, verify your system's I/O count and memory requirements. For applications exceeding 48K words, consider a higher-end PLC5 processor. Ensure your chassis and power supply (1771-P4S, -P6S, -P4S1, or -P6S1) can support the 3.3A backplane load. Order the 1770-XYC battery and optional EEPROM cards separately. BluePLC Industrial stocks the 1785-L40B and all compatible accessories, with fast shipping and expert support to help you select the right components for your automation project. For complete technical specifications, please contact BluePLC Industrial.
