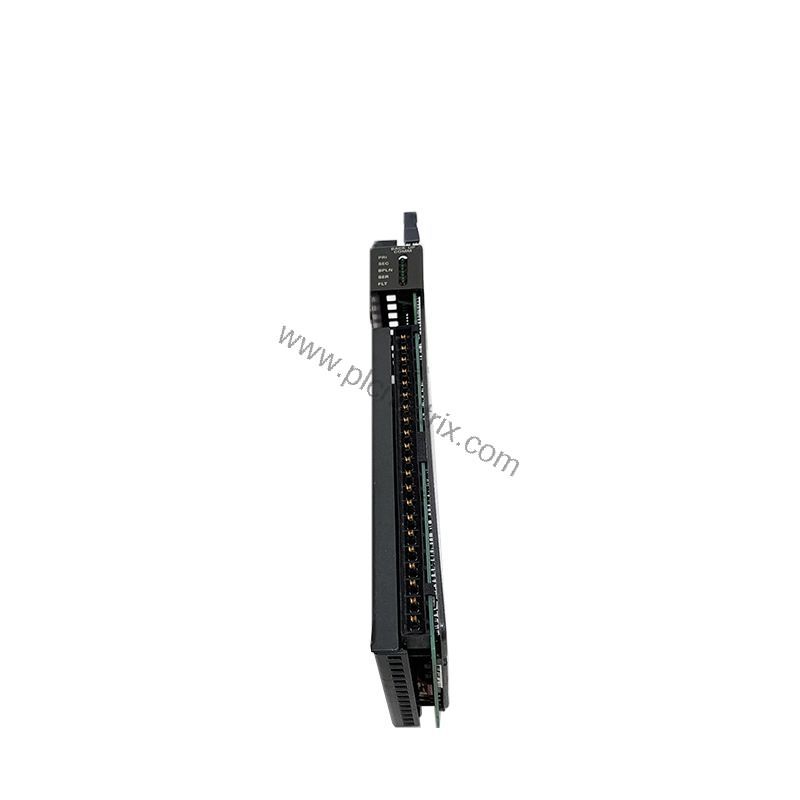

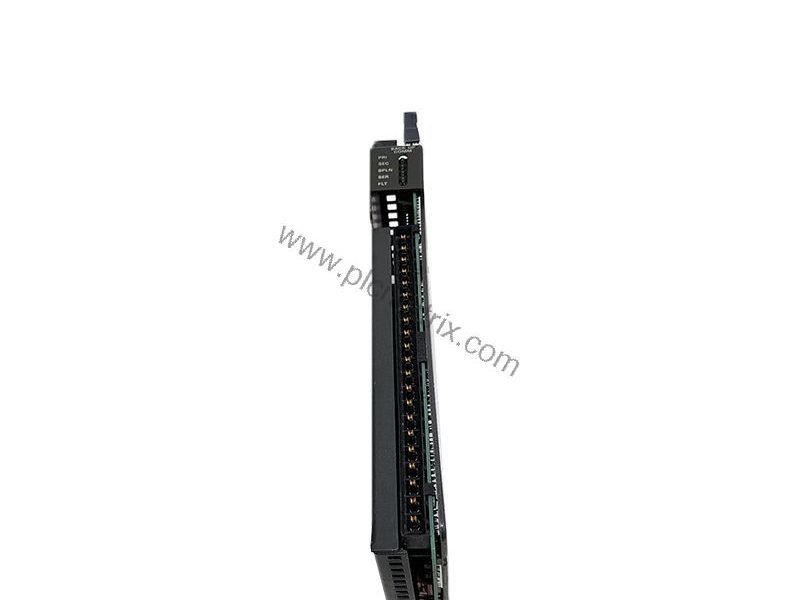

Allen-Bradley 1785-L11B PLC-5/11 Standard Processor for Industrial Control

Product Introduction

The Allen-Bradley 1785-L11B is a PLC-5 series standard processor designed for mid-range industrial control applications. As part of the trusted PLC-5 family from Rockwell Automation, this processor serves as the central controller in automation systems, managing local, extended, and remote I/O modules along with various communication interfaces. With 8K words of user memory and battery-backed static RAM, the 1785-L11B provides reliable program execution and data retention. Its compact design integrates multiple ports and status indicators, making it suitable for manufacturing, process control, and material handling environments where dependable logic execution is critical.

Technical Specifications Breakdown

The 1785-L11B standard processor offers several key specifications that define its performance. It features a maximum user memory of 8 Kilowords, providing sufficient space for medium-complexity control programs. The processor supports up to 512 total I/O points in any mix, or 384 inputs plus 384 outputs in complementary mode, allowing flexible system configuration. Analog I/O capacity reaches 512 points, enabling integration with analog sensors and actuators. The backplane current load is rated at 2.3 Amps at 5 Volts, and the processor dissipates approximately 12 Watts under normal operation. I/O scan time per rack varies with communication speed: 10 ms at 57.6 kbits/s, 7 ms at 115.2 kbits/s, and 3 ms at 230.4 kbits/s. The processor can manage up to 5 I/O chassis total, with 4 universal remote I/O chassis supported. It includes one RS-232-C/422-A/423-A port and a control coprocessor expansion port for enhanced connectivity.

Industry Applications

The 1785-L11B excels in applications requiring reliable sequential control and moderate I/O counts. In manufacturing assembly lines, it coordinates machine sequences, conveyor systems, and robotic cells using its DH+ and remote I/O capabilities. For water and wastewater treatment plants, the processor handles pump control, valve sequencing, and monitoring of analog parameters such as flow and pressure. Its ability to support up to 512 analog I/O points makes it suitable for batch processing in chemical and food industries. The processor's remote I/O scanner mode allows it to act as a supervisory controller for distributed I/O racks, reducing wiring costs and improving system scalability.

Installation & Setup Guidance

When installing the 1785-L11B, mount the processor in a suitable PLC-5 chassis and ensure proper backplane connection. Use the three-position key switch on the front panel to select RUN, PROG, or REM mode. For initial programming, connect a programming terminal to the DH+ port (channel 1A) using the 8-pin mini DIN connector. Configure channel 0 (RS-232-C port) for ASCII or DF1 protocols as needed. For remote I/O operation, set channel 1A as a remote I/O scanner or adapter via software configuration. Verify that all devices on the DH+ link use the same transmission rate; maximum cable length is 3048 m at 57.6 kbits/s and 762 m at 230.4 kbits/s. Always follow the manufacturer's guidelines for proper grounding and shielding to minimize electrical noise.

Maintenance & Reliability

Regular inspection of the 1785-L11B ensures long-term reliability. Monitor the front panel indicators: the BATT LED (red when battery is low) signals when to replace the battery to maintain RAM backup. The PROC indicator shows green in RUN mode and red when a fault exists; investigate any red status promptly. The FORCE indicator (amber) warns that I/O forces are active, which may affect system behavior. Keep the processor in a clean, dry environment within specified operating conditions. Periodically verify that all connections are secure and that the chassis cooling fans (if present) are functioning. For safety-rated systems, follow the manufacturer's safety manual for testing and maintenance procedures. Contact BluePLC Industrial for replacement batteries or memory modules.

Compatibility & Integration

The 1785-L11B integrates seamlessly with other PLC-5 family components and supports multiple communication protocols. Channel 1A can be configured as a Data Highway Plus (DH+) link for peer-to-peer communication with other PLC-5 controllers or higher-level systems. It also supports remote I/O scanner and adapter modes for real-time data exchange with I/O modules, operator interfaces, and other devices. Channel 0 provides an optically isolated RS-232-C port for ASCII and DF1 full-duplex, half-duplex master, and half-duplex slave protocols. The processor works with up to 5 I/O chassis, including 4 universal remote chassis, and supports memory module backup via 1785-ME16, -ME32, -ME64, and -M100 EEPROM modules. This compatibility makes the 1785-L11B a versatile choice for expanding or upgrading existing PLC-5 systems.

Selection Guide & Purchasing Advice

Before purchasing the 1785-L11B, verify that your application requires a standard processor with 8K memory and up to 512 I/O points. Confirm compatibility with your existing chassis, power supply, and I/O modules. The processor supports EEPROM program backup using specific memory modules; ensure you have the correct module if backup is needed. For new installations, consider the total I/O count and communication requirements to ensure the processor meets your needs. BluePLC Industrial offers the 1785-L11B with expert support to help you select the right components. Contact us for current availability, lifecycle status, and any replacement options if needed. We provide genuine Allen-Bradley products backed by our commitment to quality and customer service.
