Allen-Bradley 1771-IN PLC-5 AC/DC Input Module Overview

Product Introduction

When your PLC-5 system needs reliable signal detection from pushbuttons, limit switches, or pilot lights, the Allen-Bradley 1771-IN digital AC/DC input module delivers consistent performance. This module, part of the Bulletin 1771 I/O family, occupies just one slot in a standard chassis and provides eight input channels. It converts incoming AC or DC signals into logic levels the processor can use, simplifying system integration and reducing engineering effort.

Technical Specifications

The 1771-IN operates with an AC voltage range of 12-28 Volts. It draws a maximum backplane current of 80 milliamperes from the 1771 I/O chassis power supply. The module dissipates between 0.4 Watts and 5.4 Watts during normal operation. Key electrical characteristics include a maximum AC off-state current of 2.8 milliamperes, ensuring clear distinction between on and off states. Typical AC signal delays are 18 milliseconds (plus or minus 10 ms) for both turn-on and turn-off, providing predictable response times for your control logic.

Industry Applications

In manufacturing environments, the 1771-IN interfaces directly with on/off devices such as limit switches on conveyor systems and pushbuttons on operator panels. Its 8-input configuration suits discrete monitoring tasks like detecting part presence, machine status, or safety interlock conditions. The module also works well in material handling applications where reliable AC signal detection is critical for coordinating motor starters and enunciators.

Installation & Setup Guidance

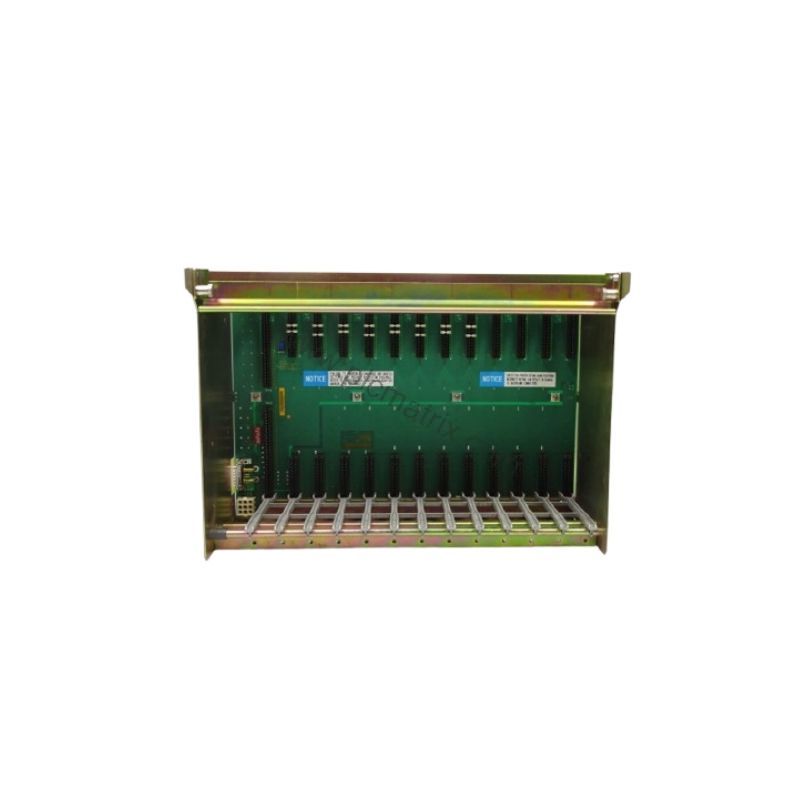

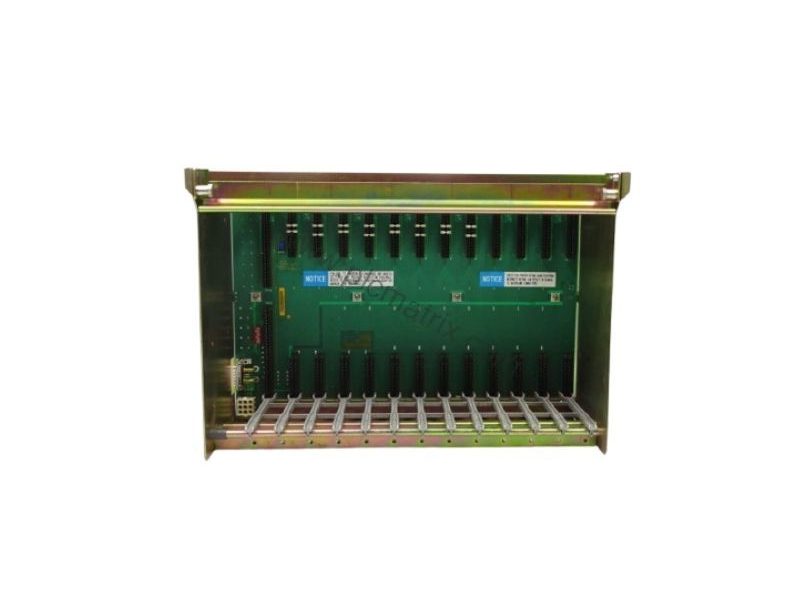

Mount the 1771-IN in any available slot of a 1771 chassis using the rack-mountable design. Connect field wiring through the 1771-WA wiring arm, which simplifies installation and maintenance. The module draws power directly from the chassis backplane, so no external power supply is needed for the module itself. Status indicator lights on the front panel show the on/off condition of each input, aiding quick visual verification during commissioning.

Maintenance & Reliability

The 1771-IN includes electrical-optical isolation and filter circuits that help protect against noise and simplify troubleshooting. Regularly inspect the module for any signs of damage or loose connections. The fault mode selection feature, accessible via a configuration plug on the printed circuit board edge, allows you to choose the last state or reset to a safe configuration in case of output failure. This capability reduces downtime and supports consistent system behavior.

Compatibility & Integration

The 1771-IN is compatible with all current Allen-Bradley programmable controllers that support the 1771 I/O architecture. It integrates seamlessly with PLC-5 processors and works with the associated 1771 chassis power supply. The module uses the backplane for communication and power, making it a straightforward addition to existing systems without complex wiring changes.

Selection Guide & Purchasing Advice

Before ordering, verify that your system uses a 1771 chassis and that the AC operating voltage range of 12-28 Volts matches your field devices. The 1771-WA wiring arm is required for field connections and should be ordered separately if not already available. For complete technical specifications and current availability, please contact BluePLC Industrial. Our team can help confirm lifecycle status and recommend suitable alternatives if needed.
