Allen-Bradley 1771-IGD TTL Input Module for Reliable PLC Signal Detection

Product Introduction

When your PLC system demands precise and fast TTL signal detection, the Allen-Bradley 1771-IGD delivers reliable performance. This 16-point TTL input module from the 1771 series offers selectable positive or negative logic levels, making it versatile for various industrial control applications. Whether you are upgrading an existing system or building a new one, the 1771-IGD provides the accuracy and speed you need.

Technical Specifications Breakdown

The 1771-IGD operates at a DC voltage of 5.0 to 5.3 Volts, drawing 130 mA from the backplane. Its power dissipation ranges from 0.4 Watts minimum to 2.7 Watts maximum, ensuring efficient energy use. The module functions within an operating temperature range of 32 to 131 degrees Fahrenheit, suitable for most industrial environments. With a signal delay of less than 1 millisecond, it handles high-speed input signals effectively.

Industry Applications

In high-speed manufacturing lines, the 1771-IGD monitors TTL-level signals from sensors and encoders, ensuring precise timing for assembly processes. For semiconductor fabrication equipment, its selectable logic levels allow seamless integration with different voltage standards, reducing signal mismatch errors. In automated testing systems, the module's fast response time supports accurate data acquisition and control.

Installation & Setup Guidance

Mount the 1771-IGD in any compatible 1771 chassis, such as the 1771-A1B or 1771-A2B Series A or B. Use the 1771-WH wiring arm for signal termination. Set the logic level jumper according to your application: position the jumper towards the front for negative logic, or leave it at default for positive logic. Ensure the DC supply voltage stays within 5.0 to 5.3 Volts to avoid damage.

Compatibility & Integration

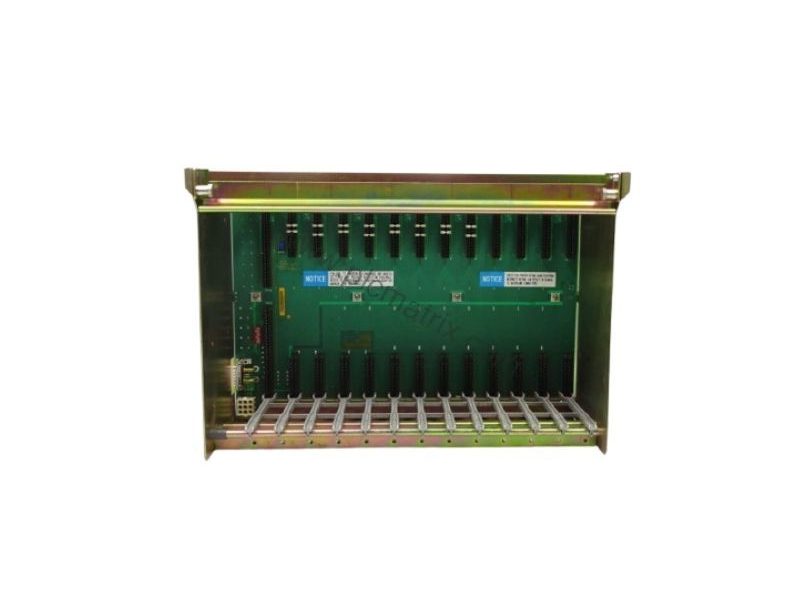

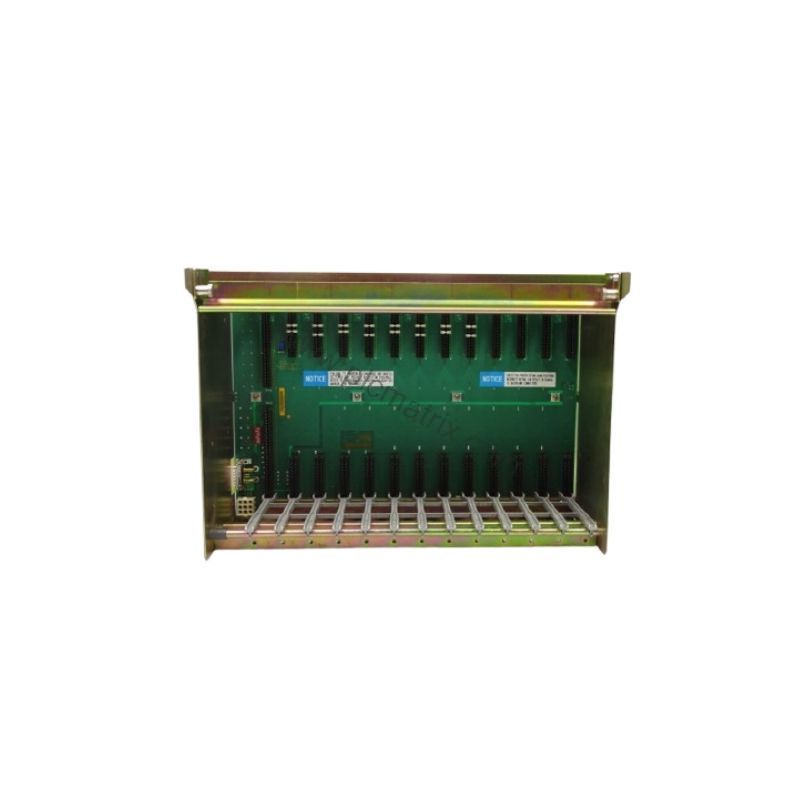

The 1771-IGD integrates seamlessly with Allen-Bradley PLC systems using 1771 I/O chassis. It is compatible with Series A or B chassis models 1771-A1B, 1771-A2B, 1771-A3B, 1771-A3B1, and 1771-A4B, as well as 1771-AM1 and 1771-AM2 I/O chassis. This broad compatibility simplifies upgrades and expansions in existing installations.

Selection Guide & Purchasing Advice

Before ordering, verify your chassis compatibility and required logic level configuration. The 1771-IGD is an earlier model, so confirm current lifecycle status with BluePLC Industrial for availability and any replacement options. For complete technical specifications, contact BluePLC Industrial. Our team ensures you get the right part for your system.
