Allen-Bradley 1771-ID Isolated AC/DC Input Module Overview

Product Introduction

When electrical noise and contact bounce threaten signal integrity in industrial environments, the Allen-Bradley 1771-ID provides a robust solution. This isolated input module from the 1771 product bulletin delivers six individually isolated channels for 120V AC or DC signals. Each channel operates independently, allowing different voltage ratings per channel if needed. The module mounts to any 1771 I/O chassis and uses the 1771-WD Field Wiring Arm for modular wiring.

Technical Specifications

The 1771-ID operates within an AC voltage range of 92-138 Volts and a DC voltage range of 92-138 Volts. The AC input frequency spans 47 to 63 Hz. Nominal input current is 8 mA at 120V AC and 8 mA at 120V DC. Input signal delay measures 24+10 ms for AC on/off transitions, 10+4 ms for DC turn-on, and 20+9 ms for DC turn-off. Power dissipation ranges from 0.4 to 4.4 Watts, with thermal dissipation from 1.3 to 15.0 BTU/hr. The module draws 74 mA from the backplane and has a maximum off-state current of 1.7 mA for both AC and DC. Dimensions are 3.5 x 6.5 x 2.0 inches (89 x 165 x 51 mm).

Cost-Efficiency Through Isolation

Individual channel isolation in the 1771-ID reduces the need for external isolators, lowering total system cost. Each channel can handle different voltage types or levels, minimizing wiring complexity and potential errors. The input filtering improves power quality by limiting voltage transients, which reduces electrically-related downtime and extends equipment life. This translates to fewer replacements and lower maintenance expenses over time.

Industry Applications

The 1771-ID is ideal for isolated-circuit multi-phase applications. It works well with float switches, limit switches, pushbuttons, and selector switches. In manufacturing lines, the module monitors multiple discrete inputs from different voltage sources without cross-talk. In process control, it isolates signals from various zones, enhancing safety and reliability. The cost advantage becomes clear when comparing to systems requiring separate isolation modules for each channel.

Installation & Setup Guidance

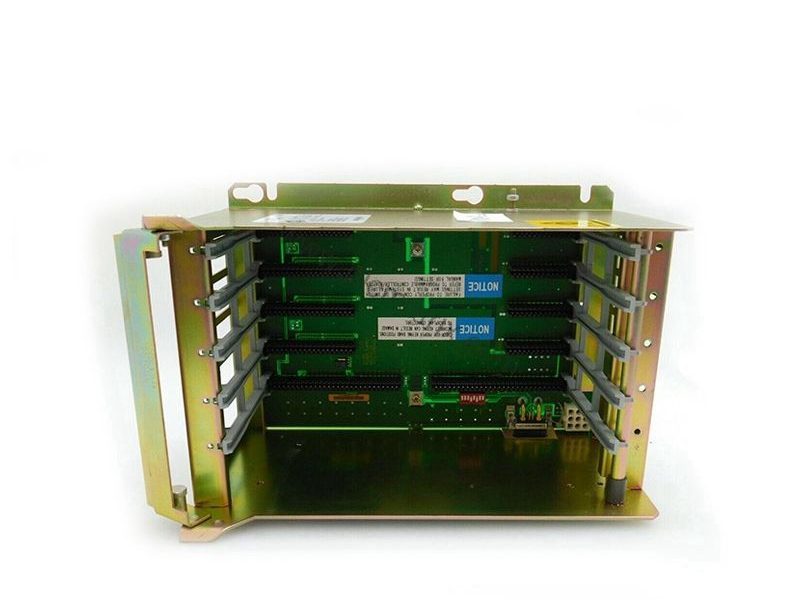

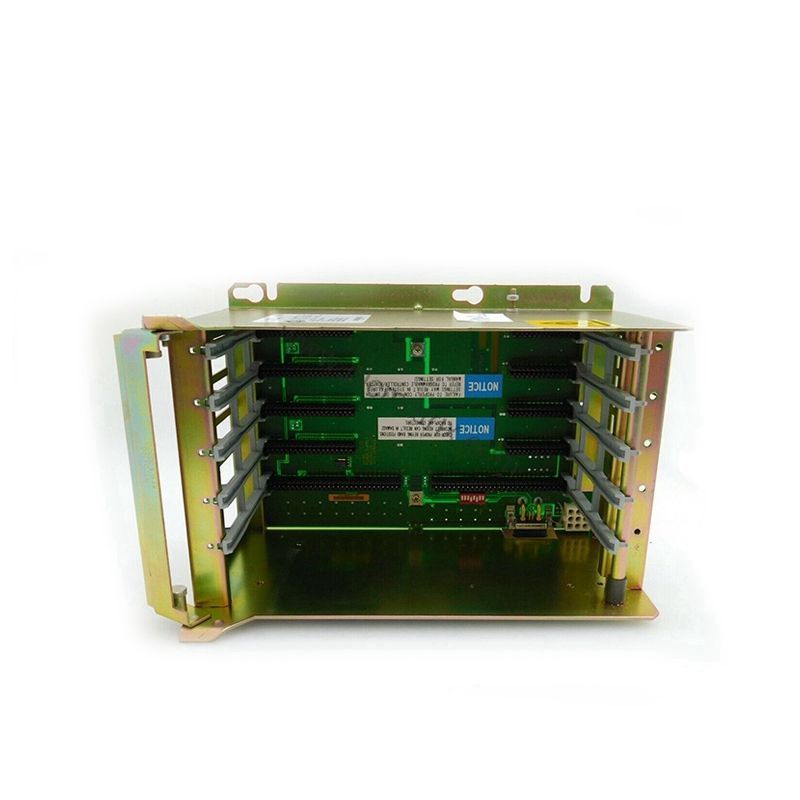

Install the 1771-ID into any 1771 I/O chassis, occupying a single slot. Use keying positions between 4 and 6 and between 28 and 30 to prevent incorrect insertion. Connect the 1771-WD field wiring arm using 14-gauge stranded or solid copper wire with 3/64-inch maximum insulation. Tighten wiring arm screws to 7-9 inch-pounds. Ensure total backplane current from all modules does not exceed the chassis power supply rating.

Maintenance & Reliability

Periodically inspect the module and wiring arm for loose connections or signs of wear. The 1771-ID operates in temperatures from 0° to 60°C (32° to 140°F) and stores from -40° to 85°C (-40° to 185°F) with 5-95% non-condensing humidity. The opto-electrical isolation is rated at 1500V AC (rms). Regular inspection according to manufacturer guidelines helps maintain reliability and avoids unexpected downtime.

Selection Guide & Purchasing Advice

Before ordering, verify that your system uses 1771 I/O chassis and that the backplane current budget accommodates the 74 mA draw. Confirm the field wiring arm part number 1771-WD is included or available separately. For complete technical specifications and current lifecycle status, contact BluePLC Industrial. Our team can confirm availability and recommend suitable replacements if needed.
