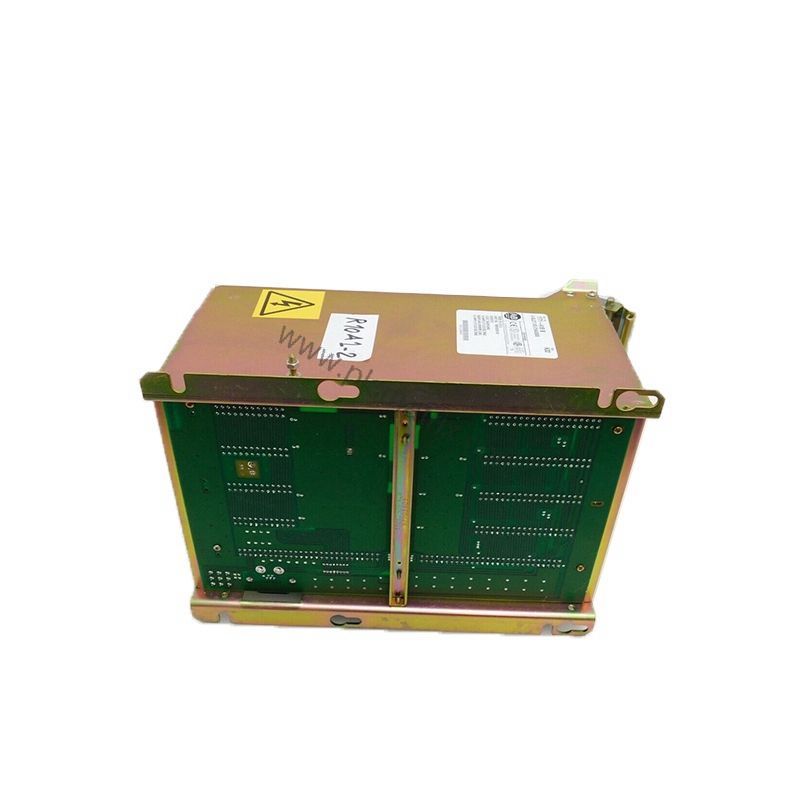

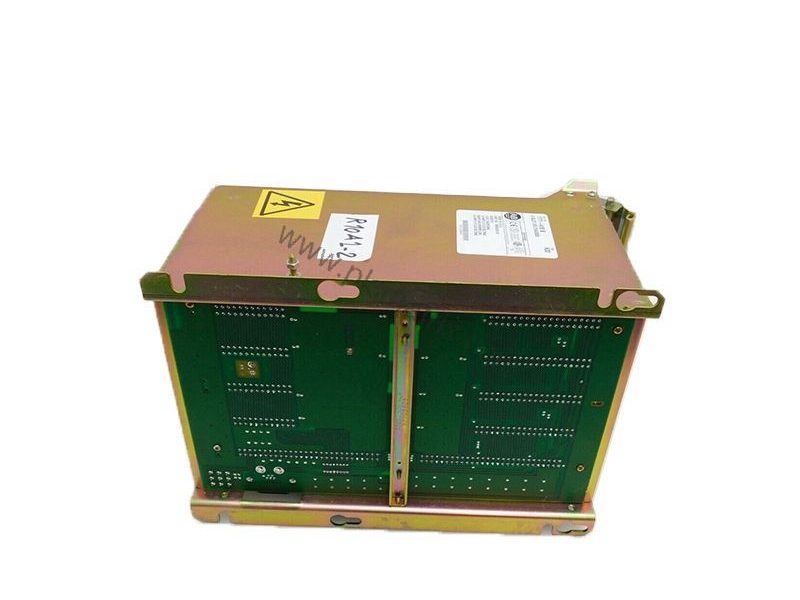

Allen-Bradley 1771-IBN PLC-5 Discrete Input Module Overview

Product Introduction

When you need reliable signal interfacing in a PLC-5 system, the Allen-Bradley 1771-IBN discrete input module delivers consistent performance. This DC input module accepts 32 input channels and operates within a 10-30 VDC range. It is designed for installation in 1771 chassis such as the 1771-A1B through 1771-A4B. As part of the Rockwell Automation family, this module connects field devices like switches and sensors to your control system.

Technical Specifications Breakdown

The 1771-IBN module features a DC operating voltage of 10-30 Volts. Its voltage category is 10-60 Volts DC, Sink (Source Load). These two key parameters define its electrical interface. The 10-30 VDC range covers common industrial sensor and switch voltages. The sink configuration means the module sources current from the load, making it compatible with sourcing field devices. With 32 inputs organized as 4 sets of 8, you can monitor multiple signals efficiently.

Industry Applications

In manufacturing lines, the 1771-IBN connects to pushbuttons, limit switches, and proximity sensors. For example, in a packaging machine, it reads signals from photo-eyes and actuators. In material handling systems, it monitors conveyor belt status and safety interlocks. The module's 32 inputs allow you to consolidate many discrete signals into one slot, saving space and wiring costs.

Installation & Setup Guidance

Mount the 1771-IBN in any 1771 I/O chassis that contains a PLC processor. Use the included 1771-WN wiring arm for field wiring. Ensure the wiring arm screw torque is set to 1.0 N-m. Use copper wire with 0.25-2.5 mm² (22-14 AWG) cross-section and insulation rated for 75 °C or higher. Keying bands between pins 18 and 20 (upper connector) and pins 14 and 16 (lower connector) prevent incorrect insertion. The module supports 1/2 and 1-slot I/O addressing.

Maintenance & Reliability

Routine inspection of the module and wiring arm ensures long service life. Check for loose connections or damaged wires during scheduled maintenance. The module's conformal coating protects against moisture and contaminants. Its optoelectrical isolation shields the PLC from electrical transients. An input filtering feature reduces electrical noise, improving signal reliability.

Selection Guide & Purchasing Advice

Before ordering, verify your chassis compatibility and required input count. The 1771-IBN is ideal for systems needing 32 DC inputs with sink configuration. For complete technical specifications, please contact BluePLC Industrial. We stock this module and can advise on availability and replacement options.
