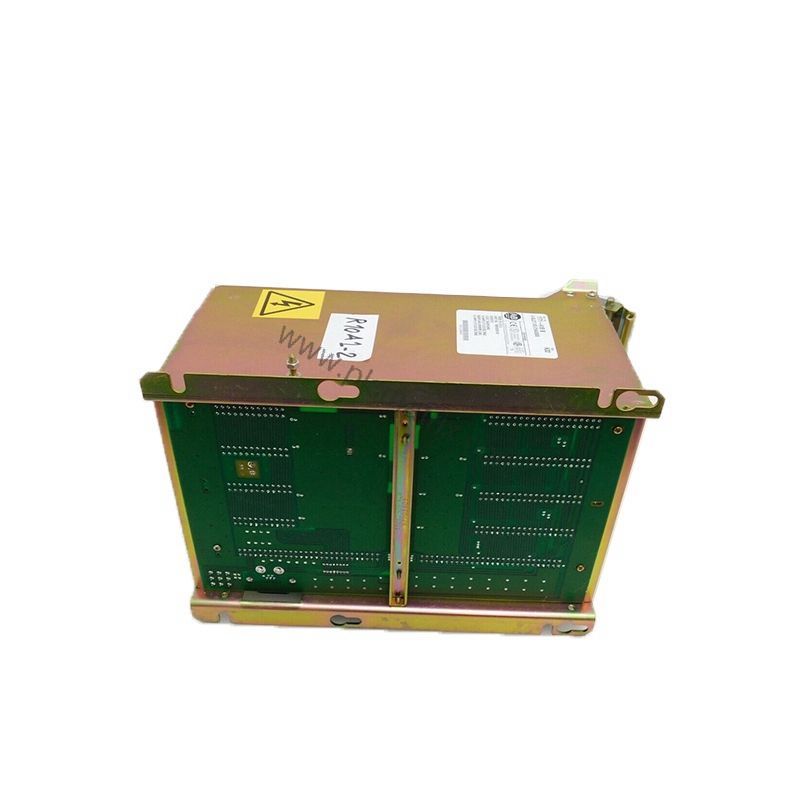

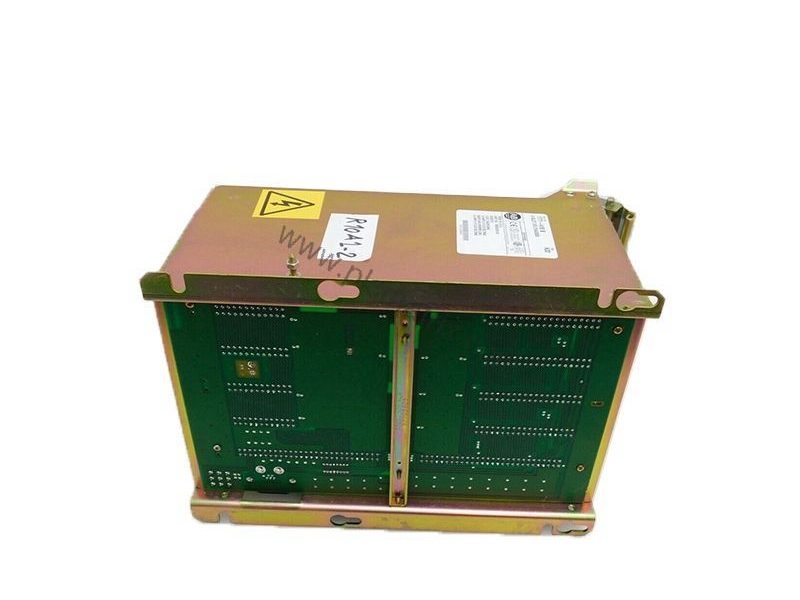

Allen-Bradley 1771-HSAR IMC Servo Controller Module for PLC-5 Systems

Product Overview

When your PLC-5-based motion control system demands precise servo positioning, the Allen-Bradley 1771-HSAR IMC servo controller module delivers reliable performance. This module from the Allen-Bradley PLC-5 series integrates a battery-backed memory cartridge storing application programs and AMP parameters. Its 96K memory capacity ensures ample space for complex motion profiles, while the included lithium battery provides up to 10 years of memory retention. The 1771-HSAR operates on a 120V AC or 220V AC power supply, connecting via a 1771-CAS power connector cable. Designed for demanding industrial environments, this servo controller module offers a practical solution for upgrading or maintaining existing PLC-5-based automation systems.

Technical Specifications Breakdown

The 1771-HSAR includes several key specifications that define its performance capabilities. The module features a pulse capture time ranging from 50 to 9.999 microseconds, enabling precise timing for encoder feedback and position capture. This wide adjustable range allows the controller to accommodate various encoder resolutions and motion speeds. The module provides +/-10 Volt DC analog command outputs, suitable for driving servo drives with standard analog velocity or torque inputs. Its maximum input frequency of 250 Kilohertz differential input supports high-resolution encoders for accurate position feedback. The module update period is 2 ms per axis, ensuring responsive control loop execution. Backplane current draw is 1.7 Amperes, which must be considered when planning system power budgets. The module occupies 2 slots per ES chassis and uses a 1771-WA wiring arm for field connections.

Industry Applications

The 1771-HSAR servo controller module is well-suited for packaging machinery, material handling systems, and assembly automation where precise motion control is critical. In packaging lines, the module can coordinate multiple servo axes for film feeding, sealing, and cutting operations. For material handling, it enables accurate positioning of conveyors, diverters, and robotic pick-and-place units. The battery-backed memory ensures that program parameters remain intact during power outages, reducing downtime in continuous production environments. When evaluating replacement options for older PLC-5 motion controllers, the 1771-HSAR offers a direct form-fit-function upgrade path.

Installation & Setup Guidance

Install the 1771-HSAR module into any compatible PLC-5 chassis slot, ensuring the backplane current draw of 1.7 Amperes does not exceed the power supply capacity. Connect the power supply module using the 1771-CAS power connector cable. For axis emergency stop functionality, use the 1771-CAP cable to connect the Axis E-Stop connector to the termination panel. The auxiliary feedback connector (AUX FDBK) uses a 15-pin connector for powering and receiving signals from an auxiliary encoder or resolver rotor. A 9-pin RS-232 connector allows connection to a T35 or T50 offline development system for testing and debugging MML programs. A hand-held pendant can be connected for convenient on-site modification of system variables and parameters.

Maintenance & Reliability

The lithium battery inside the 1771-HSAR memory cartridge has a typical lifespan of 3 years and can back up memory for up to 10 years. To prevent data loss, replace the battery proactively every 3 years or as recommended by the manufacturer. Regularly inspect the module for dust accumulation, loose connections, and signs of overheating. Ensure the chassis cooling fans are operational and ambient temperature stays within the PLC-5 system specifications. Periodic verification of the RS-232 communication link and auxiliary encoder feedback signals helps maintain system reliability.

Compatibility & Integration

The 1771-HSAR is designed for the Allen-Bradley PLC-5 programmable controller platform. It integrates with 1771-series I/O modules and uses standard PLC-5 backplane communication. The module supports various cables for connection: 1771-PS7 power connector cable, 1771-CAP Axis E-Stop connector cable, 1771-CAPA AUX FDBK connector cable, and 1771-CT50 RS-232 connector cable. The RS-232 port enables offline program development and parameter upload/download using the T35 or T50 development system. The auxiliary feedback connector supports an external encoder or resolver for additional position feedback.

Selection Guide & Purchasing Advice

Before purchasing the 1771-HSAR, verify that your PLC-5 chassis has an available slot and sufficient backplane current capacity. Confirm the power supply voltage matches your facility's 120V AC or 220V AC supply. Ensure you have the necessary cables: 1771-CAS for power, 1771-CAP for E-Stop, 1771-CAPA for auxiliary feedback, and 1771-CT50 for RS-232 communication. The 1771-WA wiring arm is required for field wiring connections. For complete technical specifications and current availability, contact BluePLC Industrial. Our team can help confirm compatibility with your existing system and provide guidance on replacement options if the module is nearing end-of-life.
