Allen-Bradley 1771-HS3CR 3-Axis Servo Controller Module Overview

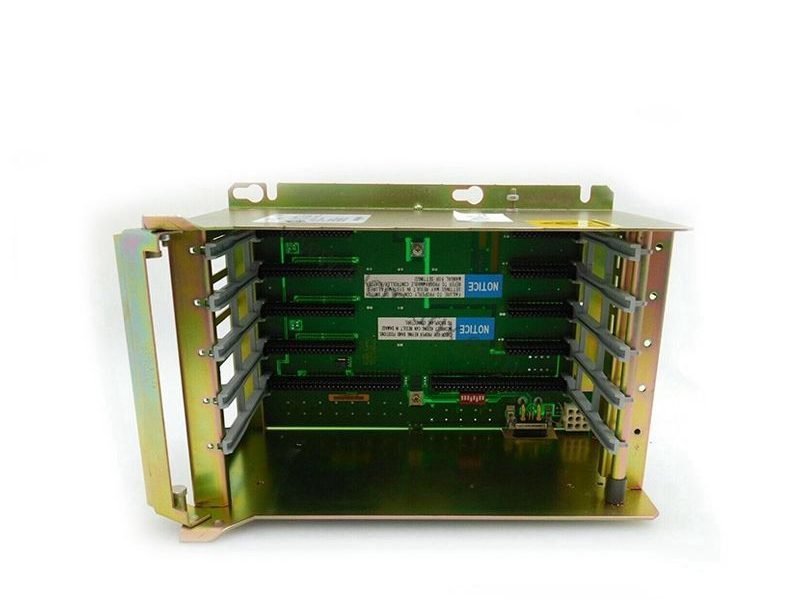

What Is the Allen-Bradley 1771-HS3CR?

When your multi-axis motion control system demands precise synchronization and reliable performance, the Allen-Bradley 1771-HS3CR servo controller module delivers. This 3-axis servo controller belongs to the Allen-Bradley/Rockwell Automation PLC-5 series and installs in any 1771 I/O chassis. It comes with a memory module, a power module, an encoder module, a resolver, and an optional hand-held pendant. The 1771-HS3CR uses the 120V AC, 1A 1771-PS7 power supply module connected through the 1771-CAS 9-pin connecting cable. It stores AMP parameters and MML downloaded programs using the 96KB 1771-HM3A battery-backed memory cartridges.

Technical Specifications Breakdown

The 1771-HS3CR offers several key specifications that define its performance:

Max Input Frequency: 250 Kilohertz Differential Input — This high-frequency input allows the controller to accurately capture encoder feedback signals from high-speed axes.

Outputs: ±10 Volt DC Analog Command — The module provides precise analog voltage commands to drive servo amplifiers, enabling smooth and accurate motion control.

Module Update Period: 2 ms/axis — Each axis updates its control loop every 2 milliseconds, ensuring responsive and stable operation for demanding applications.

Pulse Capture Time: 50-9.999 Microseconds — The controller can capture pulse inputs within this programmable window, useful for precise position or event timing.

Backplane Current: 1.7 Amperes — This current draw from the 1771 I/O backplane must be considered when sizing the power supply.

Industry Applications

The 1771-HS3CR excels in multi-axis motion control tasks. Common applications include:

Packaging Machinery: Synchronize multiple servo axes for film feeding, sealing, and cutting operations. The 2 ms update period ensures tight coordination.

Material Handling: Control conveyor diverters, lifters, and robotic pick-and-place arms with the 3-axis capability and ±10 VDC analog outputs.

Assembly Systems: Manage precise positioning of multiple actuators in automated assembly lines. The 250 KHz differential input handles high-resolution encoders.

Installation & Setup Guidance

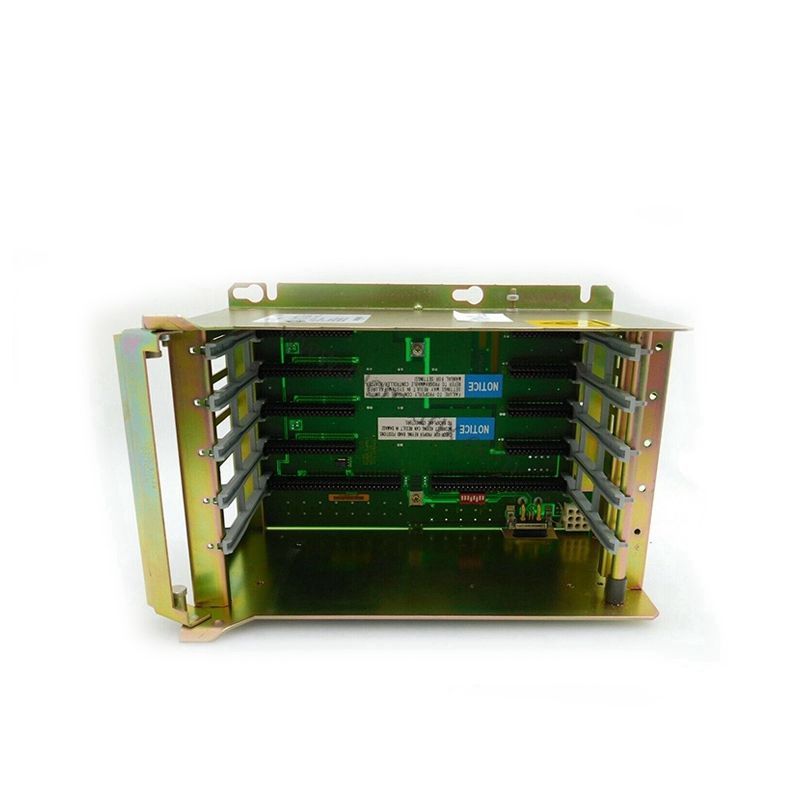

Install the 1771-HS3CR in any 1771 I/O chassis slot. It occupies 2 slots per ES (Extended Slot). Use the 1771-WA wiring arm for field wiring connections. Connect the 1771-PS7 power supply via the 1771-CAS 9-pin cable. The front panel includes a power port and an RS-232 connector for programming and debugging. Use the RS-232 port to upload/download MML programs and AMP parameters to the battery-backed memory module. You can also connect a T45 or T50 hand-held pendant for debugging.

Maintenance & Reliability

The 1771-HS3CR operates reliably in industrial environments. Its operating temperature range is 0-60°C with 5-95% relative humidity (non-condensing). The controller weighs approximately 1.36 kg with net dimensions of 11 in x 7 in x 3 in. It holds c-UL, C-TICK, and CE certifications. For long-term reliability, inspect the battery-backed memory cartridge periodically and replace the battery as recommended by the manufacturer. Keep the module free from dust and moisture.

Compatibility & Integration

The 1771-HS3CR integrates seamlessly with the Allen-Bradley PLC-5 family. It receives encoder feedback signals, resolver feedback signals, and E-stop status via a 50-pin I/O connector. The controller provides encoder feedback through its isolated 10V DC output and accepts 250 KHz differential single-ended input. It works with the 1771-PS7 power supply and 1771-HM3A memory cartridges. The RS-232 port enables connection to programming terminals and handheld pendants.

Selection Guide & Purchasing Advice

Before purchasing the 1771-HS3CR, verify your system requirements:

Confirm that your 1771 I/O chassis has available slots (the module uses 2 slots per ES).

Ensure you have a compatible 1771-PS7 power supply (120V AC, 1A).

Check that your application needs 3-axis servo control with ±10 VDC analog outputs.

Verify the required encoder feedback type (differential, up to 250 KHz).

BluePLC Industrial offers the Allen-Bradley 1771-HS3CR servo controller module for immediate purchase. Contact our team to confirm availability and compatibility with your existing system.
