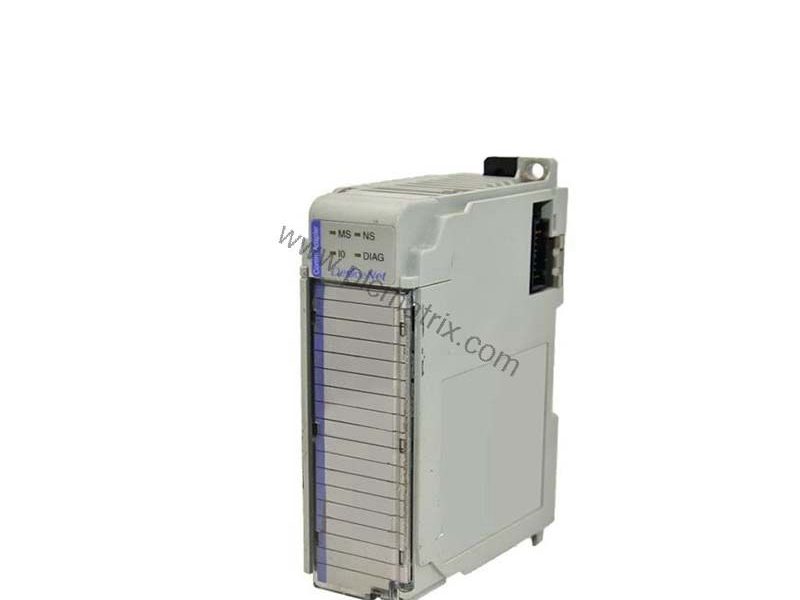

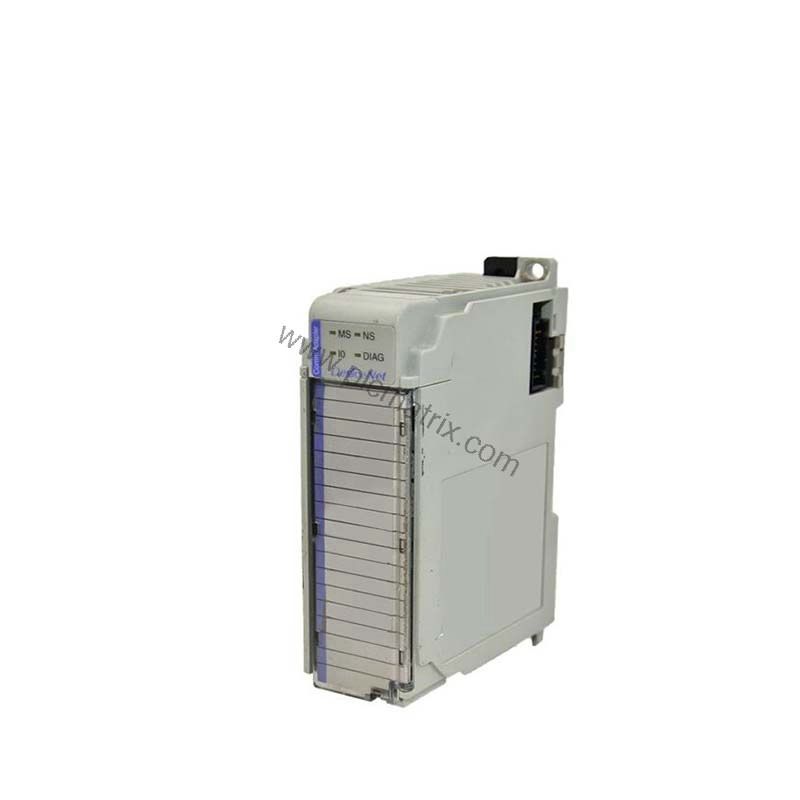

Allen-Bradley 1769-IA16 16-Point AC Discrete Input Module for CompactLogix

Product Introduction

When your industrial control system demands reliable detection of AC field device states, the Allen-Bradley 1769-IA16 delivers a cost-effective solution. This discrete input module is part of the CompactLogix product line and provides sixteen (16) AC input channels operating at a voltage range of 79 to 132 VAC. Designed for use with 1769 CompactLogix controllers and MicroLogix 1500 controllers, the 1769-IA16 interfaces with switches, auxiliary contacts, and sensors that generate or pass AC signals. By using this module, you reduce wiring complexity and improve system uptime, directly lowering maintenance costs.

Technical Specifications Breakdown

The 1769-IA16 operates with an input voltage of 100/120 VAC and an operating voltage range of 79 to 132 VAC at a frequency of 47 to 63 Hz. Its on-state minimum voltage is 79 VAC, while the off-state maximum voltage is 20 VAC. The module draws 115 mA at 5.1 Vdc from the backplane, with a maximum heat dissipation of 3.3 W. Input delay for both on and off states is 20 ms, ensuring consistent response. These specs translate to predictable energy consumption—power dissipation is 7.5 Watts—helping you budget for operational costs accurately.

Industry Applications

In manufacturing lines, the 1769-IA16 monitors limit switches and proximity sensors that signal part presence or machine status. For example, in a packaging conveyor system, the module’s 16 inputs can track multiple checkpoints simultaneously, reducing the need for additional I/O modules. This consolidation lowers hardware investment and simplifies troubleshooting, aligning with a cost-benefit approach. In material handling, the module’s 20 ms input delay ensures reliable detection of fast-moving items without false triggers.

Installation & Setup Guidance

Mount the 1769-IA16 on a DIN rail or panel within a 1769 CompactLogix chassis or MicroLogix 1500 system. Use wire sizes of 22…14 AWG solid or 22…16 AWG stranded copper rated for 90 °C. The module occupies one slot and includes a removable terminal block for easy wiring. Observe the power supply distance rating of 8 modules; if you need more than eight modules, place additional units after a compatible power supply like the 1769-PA2, 1769-PB2, 1769-PA4, or 1769-PB4. Proper installation reduces downtime and avoids costly rework.

Maintenance & Reliability

The 1769-IA16 features an open-style enclosure and electronically protected circuits, which minimize wear from electrical transients. Its operating temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) suits typical industrial environments. Periodically inspect the removable terminal block for secure connections and clean the module with a dry cloth to prevent dust buildup. These simple steps extend service life and protect your investment, supporting long-term cost savings.

Compatibility & Integration

This module works with MicroLogix 1500 and 1769 CompactLogix controllers. It uses a single group with internally connected commons, simplifying wiring for 16 points. The 1769-IA16 is compatible with power supplies 1769-PA2, 1769-PB2, 1769-PA4, and 1769-PB4. For systems requiring more than eight modules, add an additional power supply or I/O bank. This flexibility allows you to scale your system without replacing existing hardware, reducing upgrade costs.

Buying Guide

Before purchasing the 1769-IA16, verify your controller compatibility and power supply distance rating. The module ships with a removable terminal block and finger-safe covers. BluePLC Industrial stocks this module and can advise on current lifecycle status and availability. Choosing a reliable supplier ensures you receive genuine Allen-Bradley parts, avoiding counterfeit risks that could lead to system failures and unexpected expenses.
