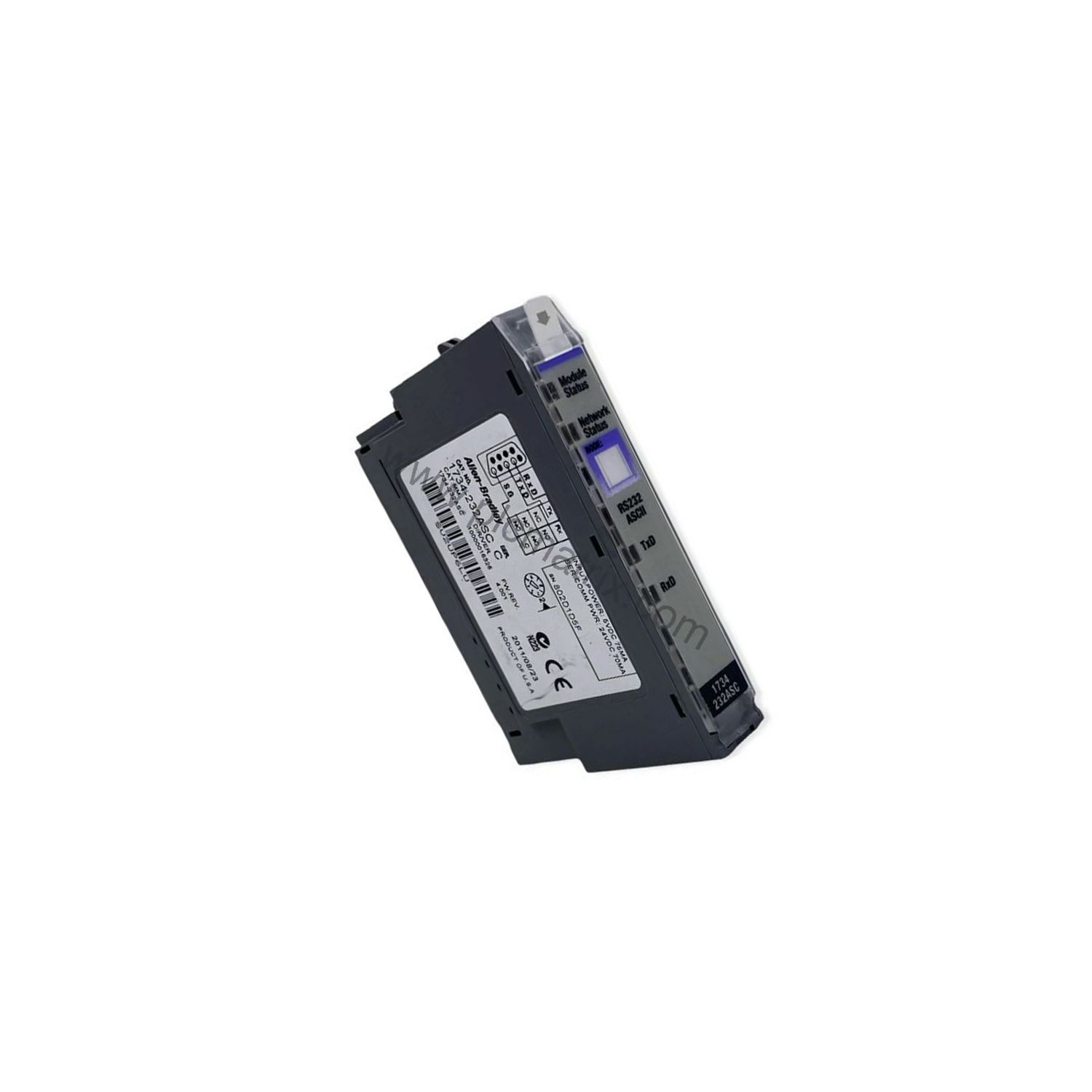

Allen-Bradley 1734-IJ POINT I/O Incremental Encoder Module Overview

Solving Precision Feedback Challenges with the Allen-Bradley 1734-IJ

In high-speed packaging lines, a sudden loss of encoder feedback can halt production and cause costly scrap. The Allen-Bradley 1734-IJ POINT I/O Incremental Encoder Module addresses this challenge by providing reliable, high-frequency pulse counting directly in a compact form factor. Designed for industrial environments where space is at a premium, this module integrates seamlessly into existing POINT I/O racks.

Product Introduction

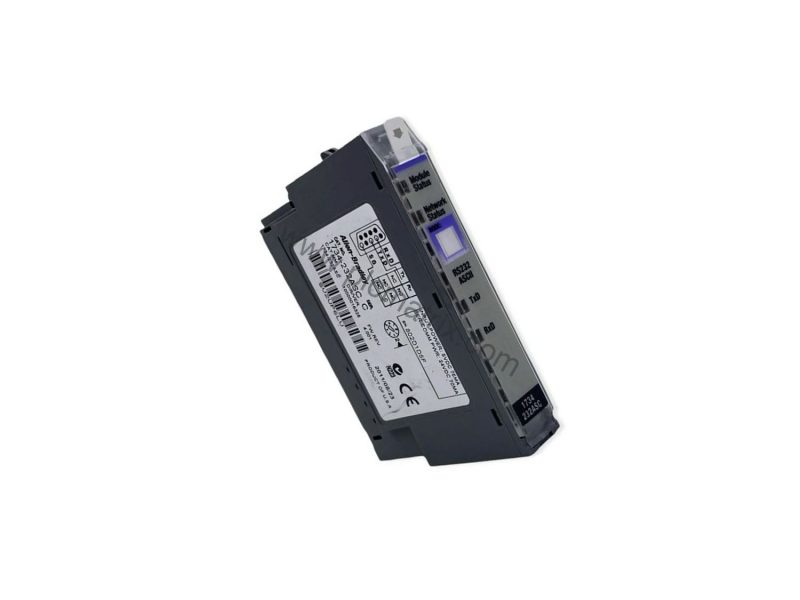

The Allen-Bradley 1734-IJ is a POINT I/O Incremental Encoder Module from Rockwell Automation. It features 1 counter and accepts input frequencies of 1 megahertz, 500 kilohertz, or 250 kilohertz, selectable via configuration. With a voltage rating of 5 Volts DC, it interfaces directly with standard incremental encoders. The module provides a continuous isolation voltage of 50 Volts between field-side and system, ensuring signal integrity in noisy industrial settings. Its open-type enclosure and compact dimensions (2.21 x 0.47 x 2.97 inches) allow for easy DIN rail or panel mounting.

Technical Specifications Breakdown

Counter and Frequency: The 1734-IJ has 1 counter and supports input frequencies of 1 megahertz, 500 kilohertz, or 250 kilohertz. This flexibility lets you match the module to encoder output for precise speed and position measurement.

Voltage and Isolation: Rated at 5 Volts DC, the module uses Areturn, Breturn, and Zreturn voltage types. The 50 Volts continuous isolation voltage protects against ground loops and transient voltages.

Power and Thermal Dissipation: Maximum power dissipation is 1.1 Watts, with thermal dissipation of 3.75 BTU/hour. This low heat output allows dense module placement without overheating.

Input Characteristics: Nominal input voltage is 5 Volts DC. Input current is 19.1 mA at 5 Volts DC and 25.7 mA at 6 Volts DC. The input off-state maximum current is ≤0.250 mA and voltage ≤1.25 Volts DC. On-state requires ≥5 mA and ≥2.6 Volts DC, with maximum voltage of ±6 Volts.

Environmental Ratings: Operating temperature range is -4 to 131 °F, non-operating -40 to 185 °F. It withstands 30 g operating shock, 50 g non-operating shock, and 5 g vibration at 10 to 500 Hz. Non-condensing relative humidity is 5 to 95%.

Industry Applications

Conveyor Speed Monitoring: In material handling, the 1734-IJ captures encoder pulses to track belt speed. The 1 MHz input frequency supports high-speed sortation systems, while the 50 V isolation ensures reliable operation near motor drives.

Rotary Table Positioning: For indexing tables in assembly automation, the module’s 1 counter and 24-bit binary output (0 to 16,777,215) provide precise position feedback. The user-selectable preset and roller values simplify homing routines.

Packaging Machine Registration: The 1734-IJ’s yellow status indicators flash when A, B, or Z inputs toggle, giving operators immediate visual feedback on encoder health. This feature reduces troubleshooting time on high-speed wrappers.

Installation & Setup Guidance

Mount the 1734-IJ on a DIN rail or panel using 22 to 14 AWG solid or stranded copper wire. It is compatible with 1734-TB, 1734-TBS, 1734-TB3, or 1734-TB3S wiring bases. The keyswitch position is 2, ensuring correct module insertion. No external DC power supply is needed; the module draws power from the POINT I/O bus. Five status indicators (module status, network status, and three yellow for A, B, Z inputs) simplify commissioning.

Maintenance & Reliability

Regularly inspect the module’s status indicators to verify encoder signal presence. The 1734-IJ’s low power dissipation (1.1 W) and robust environmental ratings (30 g shock, 5 g vibration) contribute to long service life in demanding factory floor conditions. Keep the enclosure free of dust and moisture to maintain the 5 to 95% non-condensing humidity rating.

Compatibility & Integration

The 1734-IJ operates within the POINT I/O family and communicates via the POINTbus backplane. It produces 6 or 10 bytes of input data (scanner Rx) and consumes 1 byte of I/O data (scanner Tx). The module returns a 24-bit binary number (0 to 16,777,215) expressed in a 32-bit long word. Maximum POINTbus current is 160 mA.

Selection Guide & Purchasing Advice

Before purchasing, verify your system’s encoder output type (single-ended or differential) and frequency requirements. The 1734-IJ accepts 5 VDC encoders with A, B, and Z channels. Compatible wiring bases include 1734-TB, 1734-TBS, 1734-TB3, and 1734-TB3S. For current lifecycle status and availability, contact BluePLC Industrial. Our team can confirm stock and recommend alternatives if needed.

For complete technical specifications for the 1734-IJ, please contact BluePLC Industrial.
