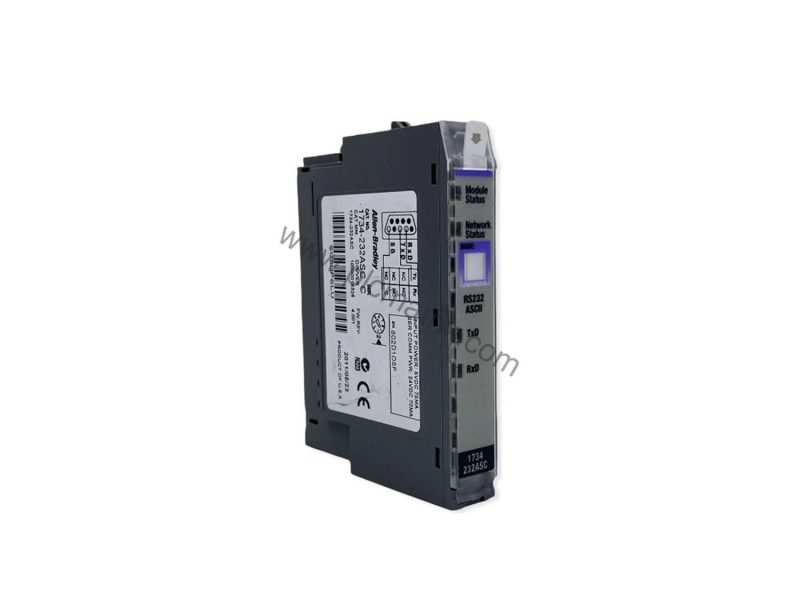

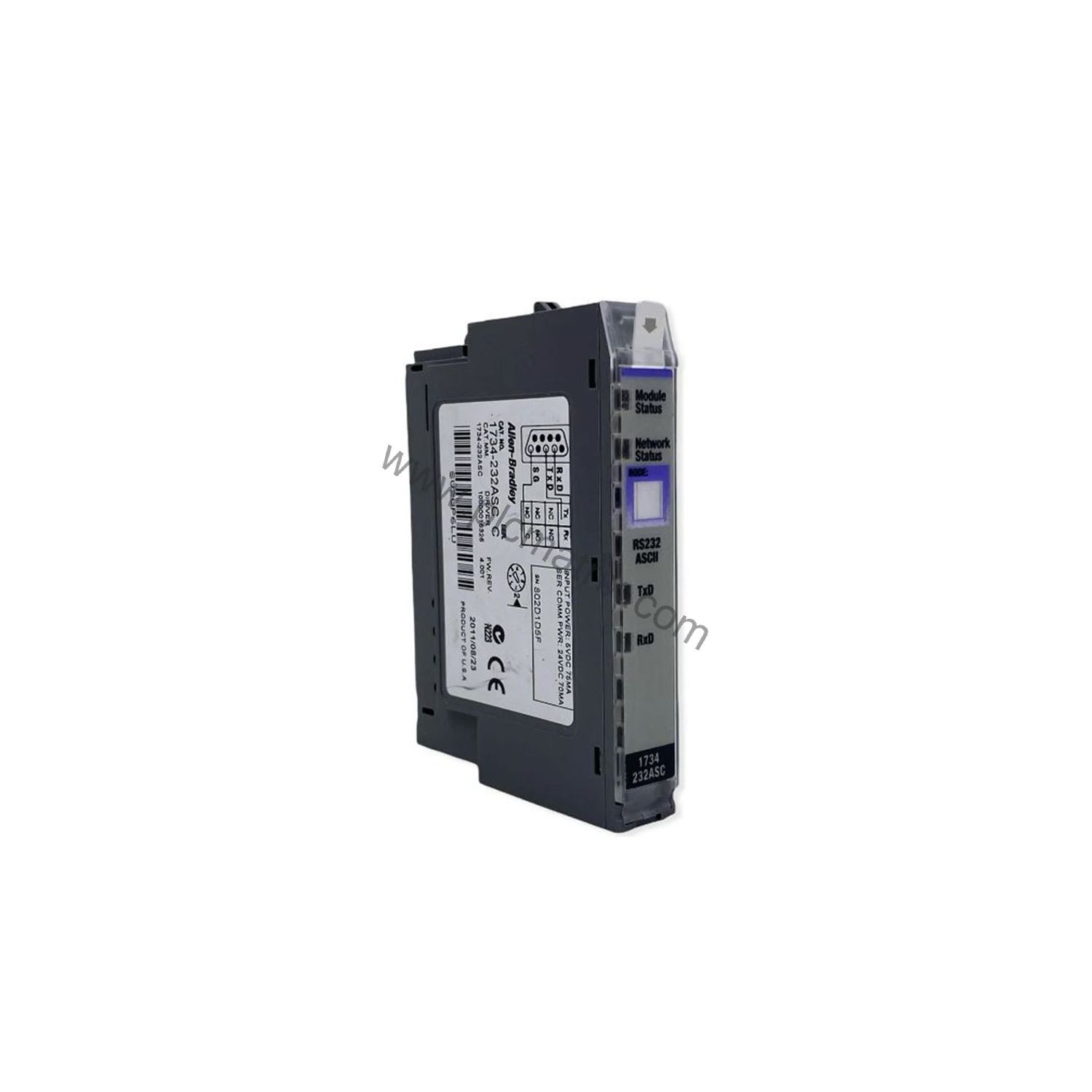

Allen-Bradley 1734-8CFG POINT I/O DC Configurable I/O Module

Product Introduction

When your automation system demands flexible I/O configuration without rewiring, the Allen-Bradley 1734-8CFG POINT I/O DC Configurable I/O Module delivers. Part of the Bulletin 1734 POINT I/O Digital Module series, this module features 8 input/output points that self-configure as inputs or outputs. It accepts an input voltage minimum of 11 Volts DC and draws an input current of 2-5 milliamps. The open enclosure design and DIN rail mounting simplify integration into existing panels.

Technical Specifications

The 1734-8CFG operates with an on-state input current range of 2 to 5 mA and an on-state output voltage range of 10 to 28.8 Volts DC. At maximum output voltage, power dissipation is 2.6 W with thermal dissipation of 8.9 BTU/hour. The module draws 100 mA at 5 Volts DC from the POINTBus backplane. Each input can be set independently in millisecond intervals, with a default value of 1000 milliseconds. The module supports removal and insertion under power (RIUP) and includes reverse polarity protection. All connected I/Os must use a PELV or SELV compliant power source.

Industry Applications

In discrete manufacturing, the 1734-8CFG handles mixed sensor and actuator control on a single module, reducing spare parts inventory. For material handling systems, its self-configuring I/O points simplify machine setup and changeovers. The wide operating temperature range of -20 to 55 Celsius makes it suitable for unconditioned factory floors.

Installation & Setup Guidance

Mount the 1734-8CFG on a DIN rail before or after attaching the terminal base assembly. Use only compatible wiring bases: 1734-TOPS, 1734-TOP, 1734-TBS, or 1734-TB. Ensure the mounting base is correctly keyed before inserting the module. Set the key switch position to value 1. Connect I/O wiring per the PELV/SELV requirements. The module auto-bauds and auto-addresses on the POINTBus backplane.

Maintenance & Reliability

Inspect the module periodically for signs of environmental stress. The open enclosure allows airflow but requires a clean, dry environment. Verify that the reverse polarity protection is not triggered by wiring errors. For long-term reliability, keep the operating temperature within -20 to 55 Celsius and ensure the POINTBus current does not exceed 100 mA at 5 VDC.

Buying Guide

Before purchasing the 1734-8CFG, confirm your system requires a POINT I/O DC configurable module with 8 I/O points. Verify compatibility with your existing terminal bases and backplane. The module is available now from BluePLC Industrial. Contact us for current lifecycle status and availability. For complete technical specifications, please contact BluePLC Industrial.
