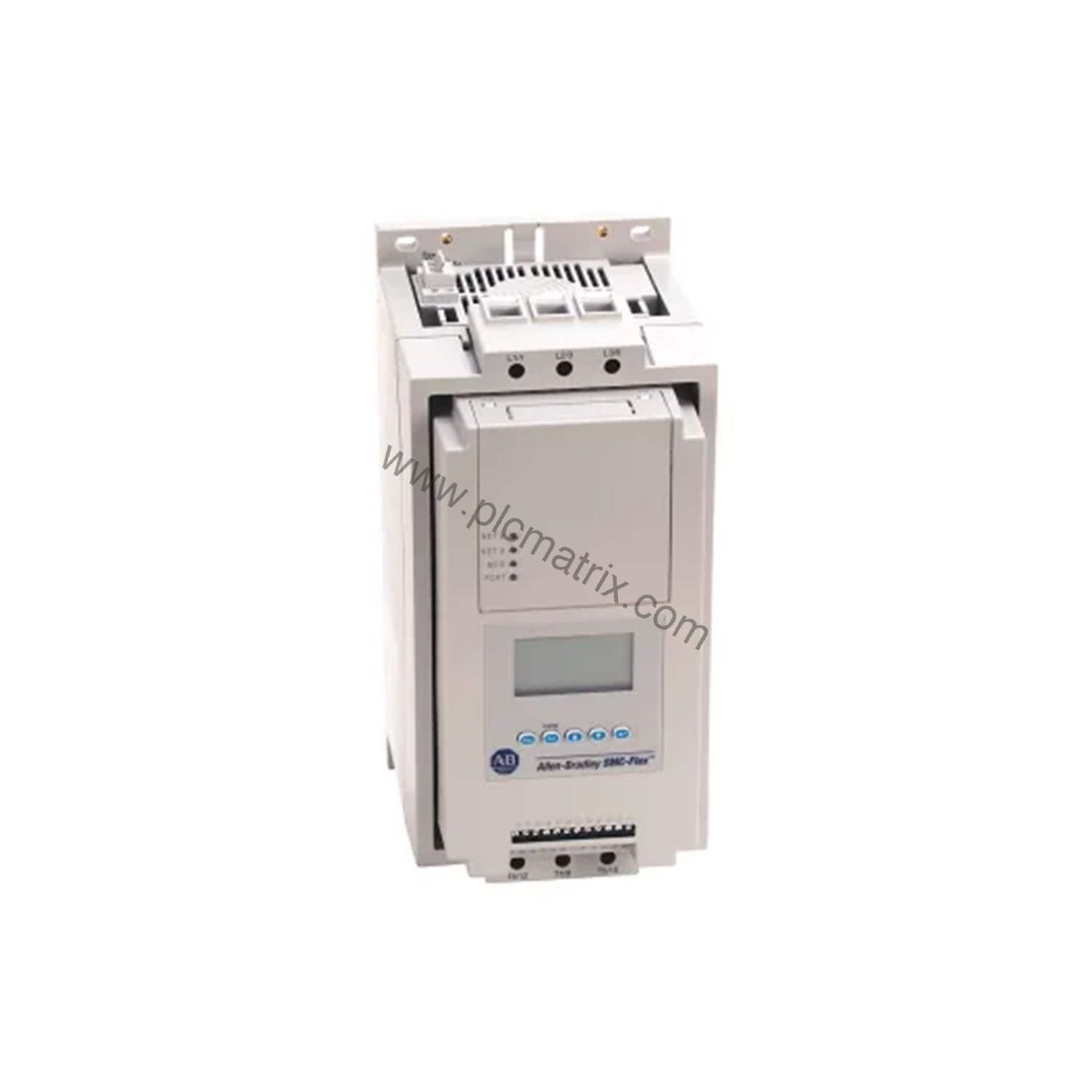

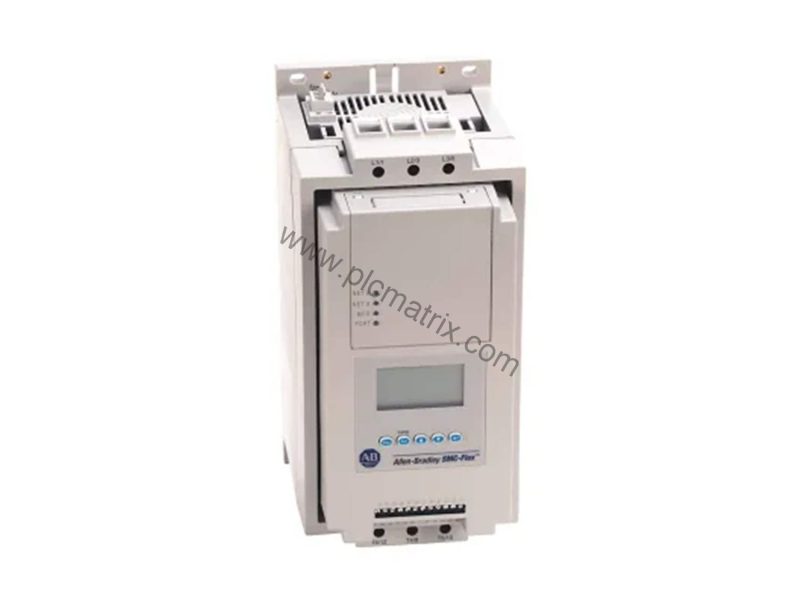

Allen-Bradley 150-F970NZE SMC-Flex Solid State Controller 970A

Product Introduction

When pump cavitation or motor torque spikes threaten your process, the Allen-Bradley 150-F970NZE SMC-Flex solid-state controller provides precise, reliable motor management. This 970 A controller belongs to the SMC Flex family of smart motor controllers, designed to handle demanding industrial applications with an open-type enclosure. With a rated voltage of 690 Volts AC and an input line voltage range of 230 to 690 Volts AC, three-phase, 50 and 60 Hz, the 150-F970NZE delivers robust performance for heavy-duty motor control.

Technical Specifications Breakdown

The 150-F970NZE operates on an input line voltage of 230-690V AC, 3-phase, 50 and 60 Hz, making it suitable for global power systems. Its control voltage is 110/120V AC for units rated 625-1250 A, ensuring compatibility with standard control circuits. The controller rating reaches 970 A and 800 Hp at 460V AC, providing ample capacity for large motors. The open enclosure type allows flexible integration into custom panels, while the recommended operating temperature range is -5 to 50 degrees Celsius in open condition and -5 to 40 degrees Celsius in enclosed condition.

Industry Applications

In pump control applications, the 150-F970NZE solves the problem of water hammer and pressure surges. Its soft start and soft stop modes gradually ramp motor speed, extending pump life and reducing pipe stress. For conveyor systems, the dual ramp start and linear speed acceleration features minimize mechanical shock, protecting belts and gearboxes. The controller also supports smart motor braking and slow speed with braking, ideal for stopping high-inertia loads safely. These capabilities directly reduce downtime and maintenance costs, delivering a strong return on investment.

Installation & Setup Guidance

Install the 150-F970NZE in a suitable enclosure to protect operators and meet safety requirements. Ensure the input line voltage matches your facility's supply: 230-690V AC, three-phase, 50 or 60 Hz. Connect the control voltage of 110/120V AC to the designated terminals for units in the 625-1250 A range. Follow the manufacturer's wiring diagram for proper phase sequence and grounding. Verify that ambient temperature stays within -5 to 50 degrees Celsius (open) or -5 to 40 degrees Celsius (enclosed) to avoid derating.

Maintenance & Reliability

Routine inspection of the 150-F970NZE focuses on cleanliness and connection integrity. Check for dust buildup on the heatsink and ensure ventilation paths remain clear. Periodically verify that all power and control wiring terminations are tight. The controller's built-in undervoltage, overvoltage, and motor overload protection safeguard against common electrical faults, reducing unplanned downtime. Following the recommended temperature guidelines extends component life and maintains reliable operation.

Selection Guide & Purchasing Advice

Before ordering the 150-F970NZE, confirm your motor's full-load current and horsepower requirements. This controller handles up to 970 A and 800 Hp at 460V AC, but verify that your application falls within these limits. Check the input line voltage compatibility with your site's supply (230-690V AC, 3-phase). For units requiring control power, ensure 110/120V AC is available. BluePLC Industrial stocks this Allen-Bradley SMC-Flex controller and can assist with availability and shipping details. Contact our team for current lifecycle status and replacement options.
