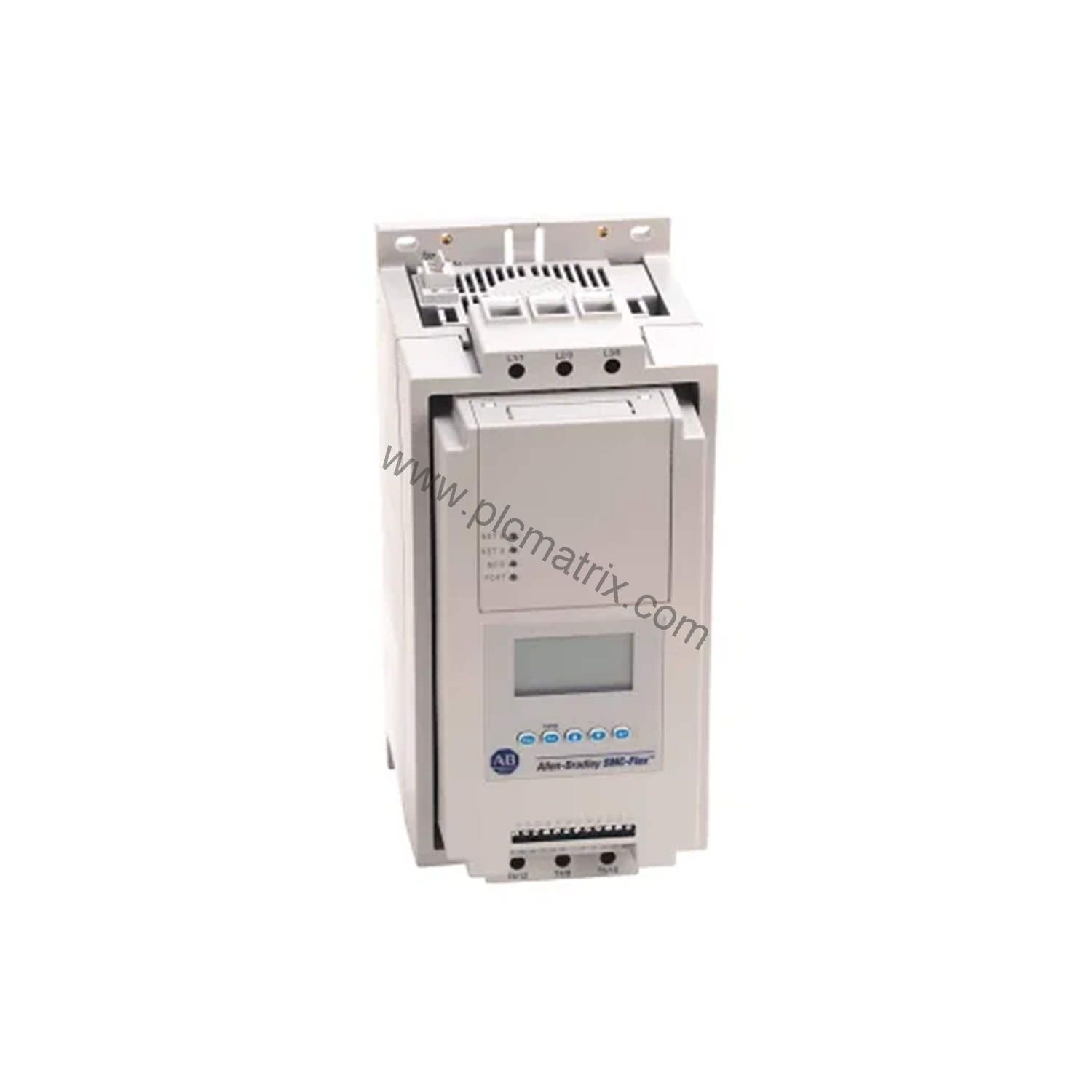

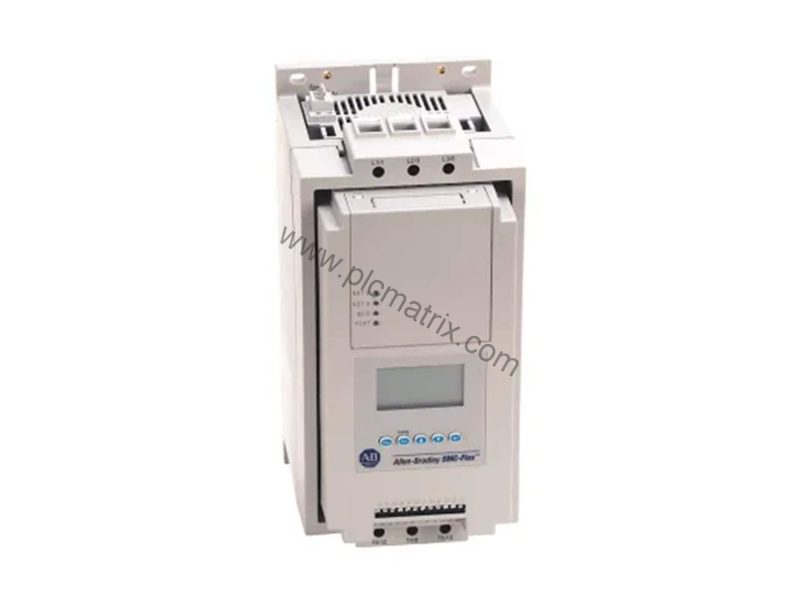

Allen-Bradley 150-F970NZA SMC-Flex Solid State Controller 970A

Product Introduction

When a facility needs to start large three-phase induction motors smoothly while protecting against electrical and thermal stress, the Allen-Bradley 150-F970NZA SMC-Flex solid state controller delivers a robust solution. This unit belongs to the SMC-Flex product line and features an open enclosure design. It handles demanding motor control tasks with a controller rating of 970 A and 800 Hp at 460V AC. The input line voltage accepts 230-690V AC, three-phase, at 50 and 60 Hz, making it versatile for global industrial applications.

Technical Specifications Breakdown

The 150-F970NZA operates on an input line voltage of 230-690V AC, three-phase, at 50 and 60 Hz. This wide voltage range allows the controller to work with various power systems without additional transformers. The control voltage is 230/240V AC for units rated 625-1250 A, ensuring consistent logic power for the internal electronics. The unit provides electronic motor overload protection, a run bypass contactor, and four programmable auxiliary contacts. It also includes metering for three-phase current, power factor, three-phase voltage, elapsed time, and power in kW or MWh, with current transformers on each phase. The motor thermal capacity feature lets operators monitor thermal usage before a trip occurs.

Industry Applications

This controller excels in applications requiring controlled acceleration and deceleration of large motors. For example, in a conveyor system handling heavy bulk materials, the soft start mode reduces mechanical shock and extends belt life. In a pump station, the current limit start mode prevents high inrush currents that could trip upstream breakers. The 150-F970NZA also supports Wye-Delta 6 lead and standard three-phase cage induction motors, making it suitable for compressors, fans, and mixers. The seven start modes—soft start, selectable kick start, current limit start, dual ramp start, full voltage start, soft stop, and linear speed acceleration—provide flexibility for diverse process requirements.

Installation & Setup Guidance

Mount the 150-F970NZA in a clean, dry location with adequate ventilation. The open enclosure requires installation inside a suitable cabinet to protect against dust and contaminants. Connect the three-phase input line voltage (230-690V AC, 50/60 Hz) to the designated terminals. Ensure the control voltage supply matches 230/240V AC for units in the 625-1250 A range. Wire the motor leads according to the Wye-Delta or standard three-phase configuration as required. Use the programmable keyboard and LCD display to configure start modes, overload settings, and metering parameters. Verify all connections before applying power.

Maintenance & Reliability

Regular inspection of the 150-F970NZA helps maintain reliable operation. Check for loose connections, signs of overheating, or debris accumulation around the enclosure. The built-in electronic overload protection reduces wear on mechanical components by preventing sustained overcurrent conditions. The run bypass contactor, once engaged, minimizes heat dissipation in the solid-state section during steady-state operation. Monitor the motor thermal capacity reading to anticipate potential overload trips. Periodic testing of the start modes and protective functions ensures the controller responds correctly under fault conditions.

Compatibility & Integration

The 150-F970NZA integrates with standard three-phase induction motors and Wye-Delta 6 lead configurations. It works with control systems that provide start/stop commands and accept status signals from the auxiliary contacts. The metering outputs (current, voltage, power, elapsed time) can feed into PLCs or SCADA systems for process monitoring. The unit does not require specialized communication modules for basic operation, but its programmable features allow customization through the front panel interface.

Selection Guide & Purchasing Advice

Before purchasing the 150-F970NZA, verify that the motor full-load current does not exceed 970 A and that the supply voltage falls within 230-690V AC, three-phase. Confirm the control voltage available in your facility matches 230/240V AC. Consider the enclosure requirements—since this is an open enclosure, plan for a suitable cabinet. For complete technical specifications, please contact BluePLC Industrial. Our team can help confirm compatibility with your existing system and provide current availability information.
