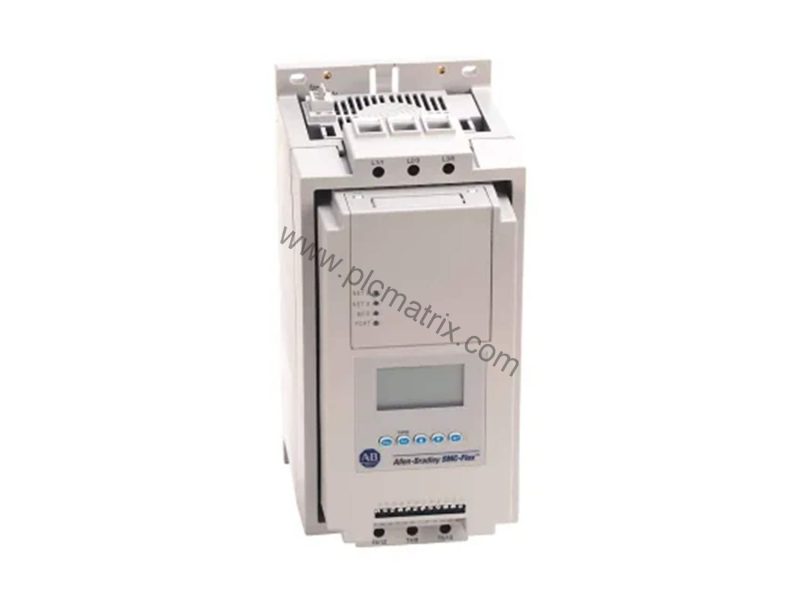

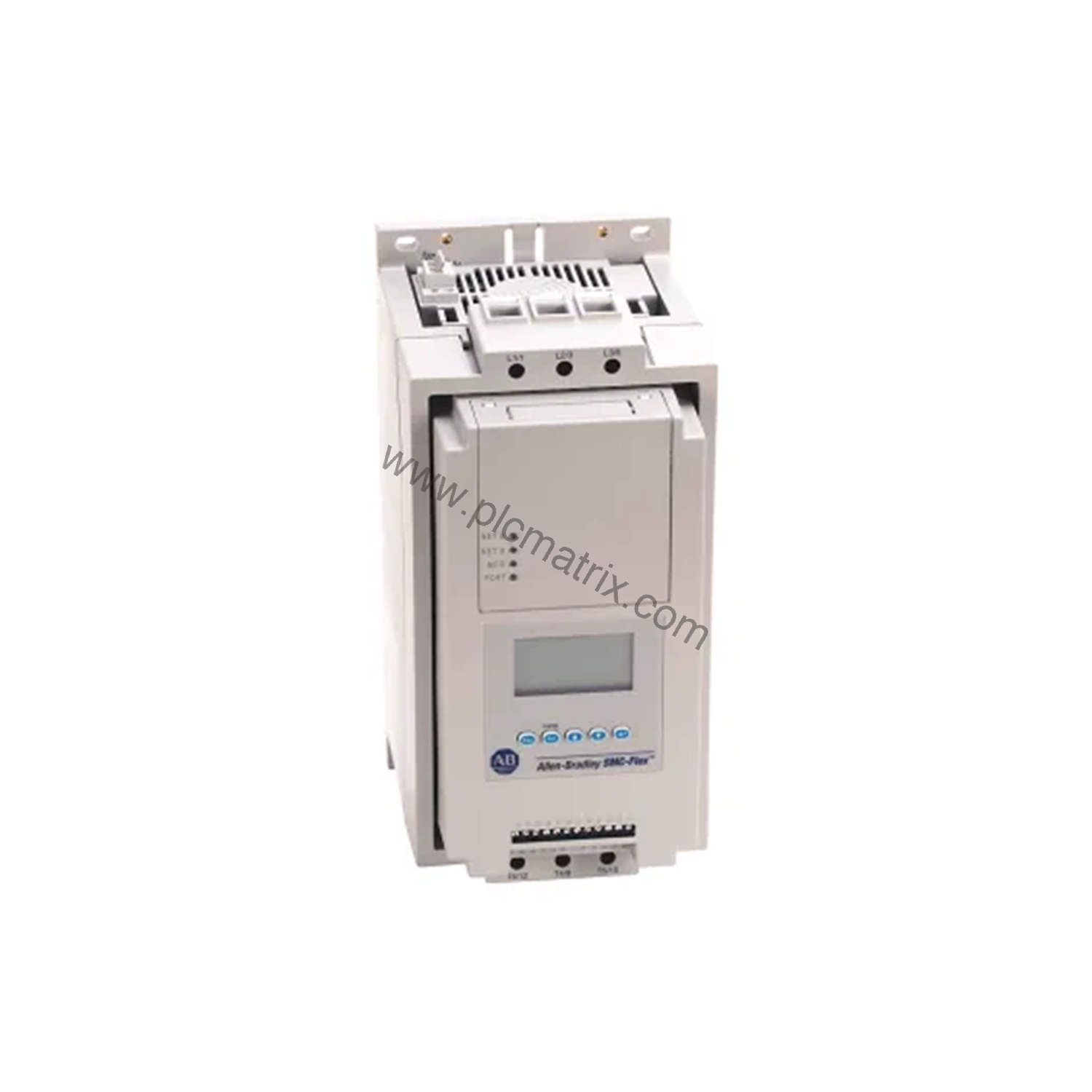

Allen-Bradley 150-F970NBE SMC Flex Solid State Controller Overview

Product Introduction

When industrial motor control demands reliability and flexibility, the Allen-Bradley 150-F970NBE SMC Flex solid state controller delivers. As part of the SMC-Flex family, this smart motor controller acts as a microprocessor for 3-phase standard squirrel cage induction motors or Wye-Delta (6-lead) motors. It provides seven standard operating modes within a single controller, maximizing application flexibility. With a 970 A controller rating and 800 Hp at 460V AC, it handles demanding loads while offering integrated pump control and braking control options. Pump control reduces power surges during centrifugal pump starts and stops by smoothly accelerating and decelerating the motor. Braking control uses smart motor braking, accu-stop, and slow speed with braking options to slow down and stop efficiently.

Technical Specifications

The Allen-Bradley 150-F970NBE operates with an input line voltage of 200-460V AC, 3-phase, at 50 and 60 Hz. Its rated voltage matches the input range at 200-460V AC. For units in the 625-1250 A range, the control voltage is 110/120V AC. These specifications ensure compatibility with common industrial power systems, making integration straightforward. The controller supports motors rated from 1 to 1250 A, covering a wide range of applications.

Industry Applications

In pumping stations, the 150-F970NBE's pump control minimizes water hammer and mechanical stress by providing smooth acceleration and deceleration. This extends pump life and reduces maintenance costs. For conveyor systems, the soft start and linear speed acceleration modes reduce belt wear and product damage. The dual ramp start allows different starting profiles for varying load conditions, enhancing process control. In HVAC systems, the controller manages large fans and compressors, reducing inrush current and electrical stress on the grid.

Installation & Setup Guidance

Mount the 150-F970NBE in a clean, dry location with adequate ventilation. Ensure the enclosure type (open) allows proper airflow. Connect the 3-phase input line voltage (200-460V AC) to the appropriate terminals, observing local electrical codes. For control voltage, use 110/120V AC for units rated 625-1250 A. Verify that the motor rating does not exceed 970 A or 800 Hp at 460V AC. Configure the seven operating modes via the LCD screen and DPI communication interface. Test each mode during commissioning to confirm proper operation.

Maintenance & Reliability

From a maintenance engineer's perspective, the 150-F970NBE offers robust reliability with features like electronic motor overload protection and CT on each phase with four programmable auxiliary contacts. These allow precise monitoring and protection. Periodically inspect the controller for dust accumulation and ensure the LCD screen remains readable. Check all connections for tightness and signs of heat damage. The open enclosure requires protection from contaminants, so install in a suitable cabinet. With proper care, this controller provides long service life and minimizes unplanned downtime.

Buying Guide & Purchasing Advice

Before purchasing the Allen-Bradley 150-F970NBE, verify your motor's full-load current and horsepower rating to ensure the 970 A and 800 Hp at 460V AC specifications match. Confirm the input line voltage (200-460V AC, 3-phase) and control voltage (110/120V AC) are available at your facility. Contact BluePLC Industrial for current availability and lifecycle status. They can provide expert guidance on compatibility and any required accessories. For complete technical specifications, please contact BluePLC Industrial.
