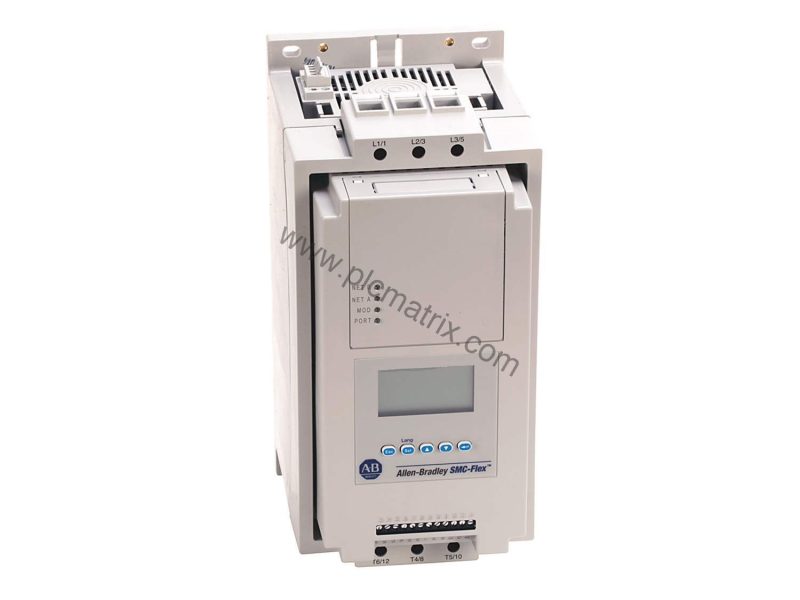

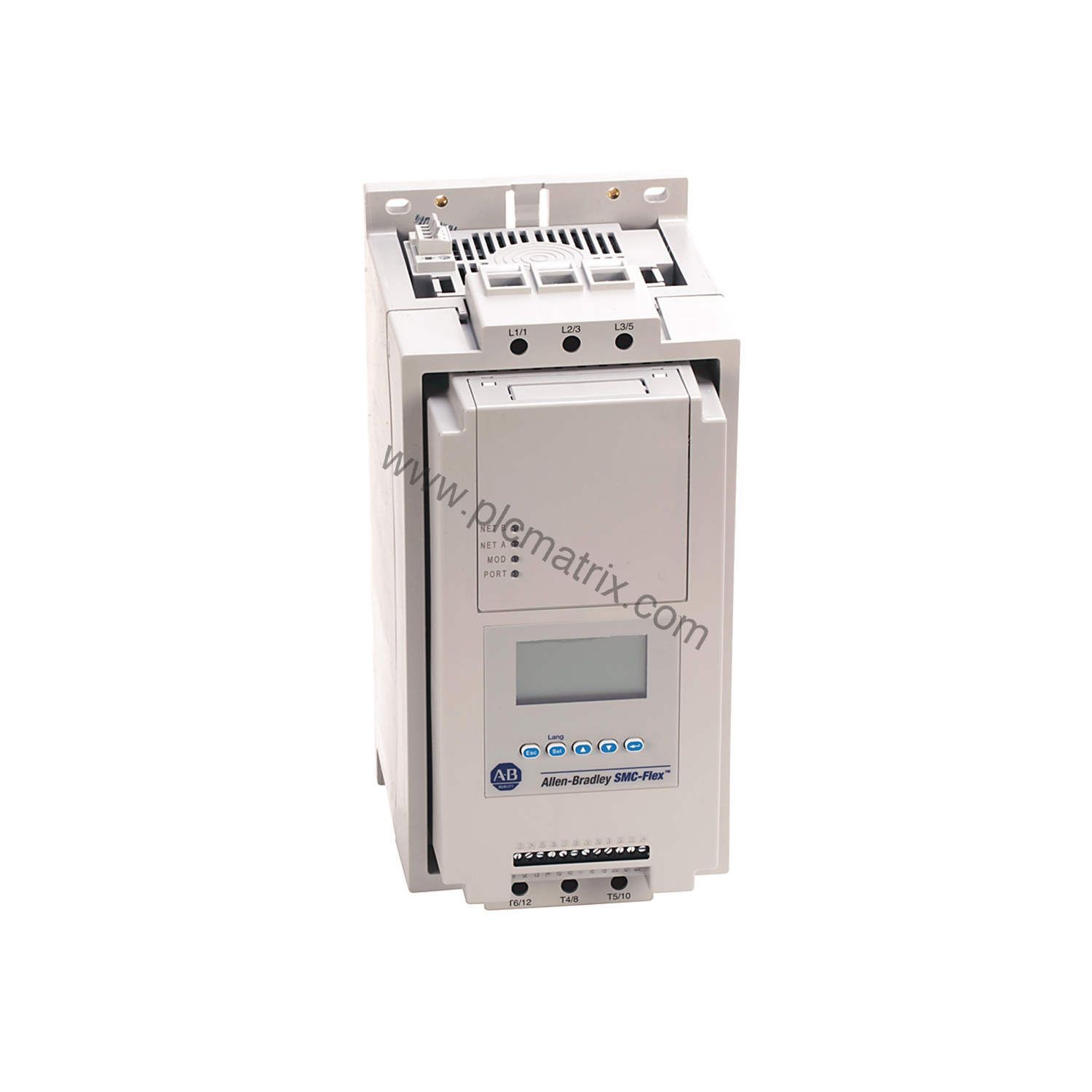

Allen-Bradley 150-F780NBE Solid State Controller 780A 600HP

Product Introduction

When starting large induction motors, the sudden torque surge from across-the-line starting can damage gears, couplings, and belts, leading to costly downtime and repairs. The Allen-Bradley 150-F780NBE solid state controller from the SMC-Flex series addresses this challenge directly. It provides smooth, stepless motor acceleration and deceleration, reducing mechanical stress and extending equipment life. With a controller rating of 780 A and 600 HP at 460V AC, this unit handles heavy industrial loads reliably.

Technical Specifications

The 150-F780NBE operates with an input line voltage of 200-460V AC, 3-phase, at 50 and 60 Hz. Its rated voltage matches the input range at 200-460V AC. For control power, it uses 110/120V AC, applicable to 625-1250 A units. The controller weighs 396.00 lbs (179.62 kg) and comes in an open enclosure type. These parameters define its suitability for high-power motor applications in industrial environments.

Key Features & Benefits

The soft start feature minimizes starting torque flow, protecting downstream mechanical components. A selectable kickstart alternative delivers an additional torque pulse to overcome stalling in high-friction loads. The dual ramp start feature accommodates varying loads, two-speed requirements, and reversing applications. For applications needing in-rush current limitation during acceleration, the current limit start feature is available. The preset slow speed function supplies two jog speeds in forward and reverse directions, simplifying alignment and setup procedures without requiring a reversing contactor.

Industry Applications

This controller suits low-induction motors in industries such as mining, material handling, pumping, and conveyor systems. For example, in a conveyor line handling heavy bulk materials, the soft stop feature extends stopping time to prevent load shifting or spilling. In a crusher application with high starting friction, the kickstart option provides the extra torque needed to break away from a standstill. These capabilities reduce equipment downtime from vibration-related issues and improve overall process reliability.

Installation & Setup Guidance

Mount the 150-F780NBE in a clean, dry location with adequate ventilation for heat dissipation. Verify that the incoming line voltage matches the 200-460V AC, 3-phase specification and that control power is 110/120V AC. Use appropriately rated conductors and follow local electrical codes. During commissioning, configure the soft start parameters—such as ramp time and current limit—according to the motor and load characteristics. Test the kickstart and dual ramp features if your application requires them. Always refer to the product manual for detailed wiring diagrams and safety instructions.

Selection Guide & Purchasing Advice

Before ordering, confirm that the 150-F780NBE's 780 A rating and 600 HP capacity at 460V AC match your motor's full-load current and horsepower. Verify the input voltage range (200-460V AC, 3-phase) and control voltage requirements. For complete technical specifications and current lifecycle status, please contact BluePLC Industrial. Our team can assist with compatibility questions and recommend any required accessories to ensure a smooth integration into your system.
