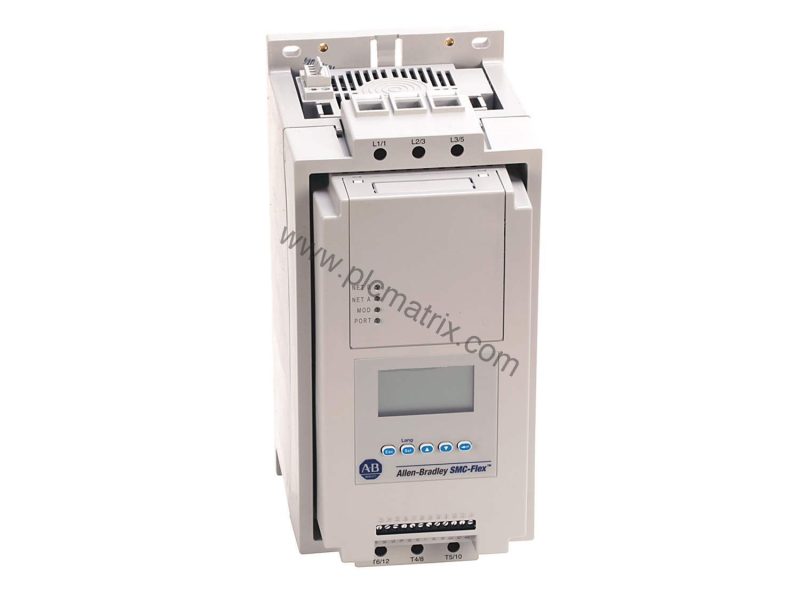

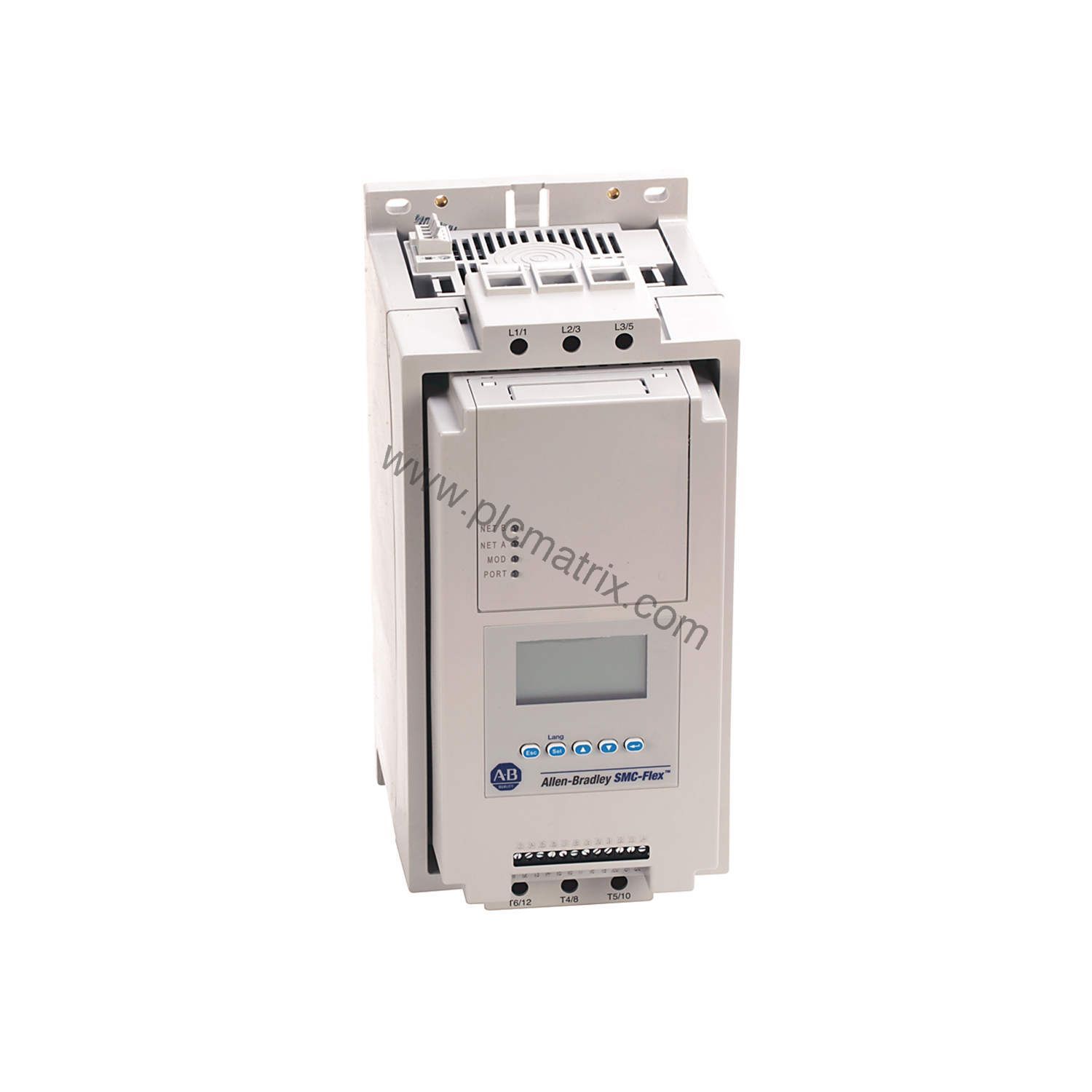

Allen-Bradley 150-F780NBAD SMC-Flex Solid State Motor Controller, 780A

Product Overview

When demanding motor control applications require reliable starting and stopping, the Allen-Bradley 150-F780NBAD SMC-Flex solid state controller delivers robust performance. This open-style controller handles up to 780 A and supports motors rated at 600 HP at 460V AC, making it suitable for large industrial machinery. Part of Rockwell Automation's trusted SMC-Flex series, the 150-F780NBAD includes a braking control option for applications needing controlled deceleration.

Technical Specifications

The 150-F780NBAD operates with an input voltage range of 200...480V AC and a control voltage of 230...240V AC. Its 780 A rating and 600 HP capacity at 460V AC enable it to manage high-inertia loads and frequent starting cycles. The open configuration allows integration into custom enclosures or existing control panels. The braking control option provides additional flexibility for processes requiring precise stopping.

Industry Applications

This controller excels in heavy industries such as mining, oil and gas, water treatment, and manufacturing. For example, in a conveyor system moving bulk materials, the 150-F780NBAD provides smooth acceleration to reduce mechanical stress and controlled braking to prevent material spillage. In pump applications, it minimizes water hammer by gradually ramping motor speed. The 600 HP capacity at 460V AC makes it ideal for large compressors, crushers, and fans.

Comparison with Similar Controllers

Compared to smaller SMC-Flex models like the 150-F201NBD (201 A, 150 HP at 460V AC), the 150-F780NBAD offers nearly four times the current capacity and four times the horsepower. This makes it suitable for primary drives rather than auxiliary equipment. Unlike basic soft starters without braking control, the 150-F780NBAD's braking option reduces reliance on external braking resistors in certain applications, simplifying system design and lowering total cost.

Installation & Setup Guidance

Mount the 150-F780NBAD in a clean, dry location with adequate ventilation. Ensure the input voltage (200...480V AC) matches your facility supply, and connect the control voltage (230...240V AC) to the designated terminals. Use appropriately sized copper conductors rated for the 780 A continuous current. Follow the manufacturer's wiring diagram for the braking control option if used. Verify all connections are tight before applying power.

Maintenance & Reliability

Periodically inspect the controller for dust buildup, loose connections, and signs of overheating. Keep the heat sink fins clean to ensure proper thermal dissipation. The solid-state design offers high reliability with no moving contacts to wear out, reducing maintenance frequency compared to electromechanical starters. For the braking control circuit, verify proper operation during scheduled maintenance intervals.

Selection Guide & Purchasing Advice

Before ordering the 150-F780NBAD, confirm that your motor's full-load current does not exceed 780 A and that your system voltage falls within the 200...480V AC input range. Verify that the control voltage available matches the 230...240V AC requirement. For applications not requiring braking, consider the standard SMC-Flex model without the braking option. BluePLC Industrial stocks the 150-F780NBAD and can provide current lifecycle status and availability. For complete technical specifications, please contact BluePLC Industrial.
