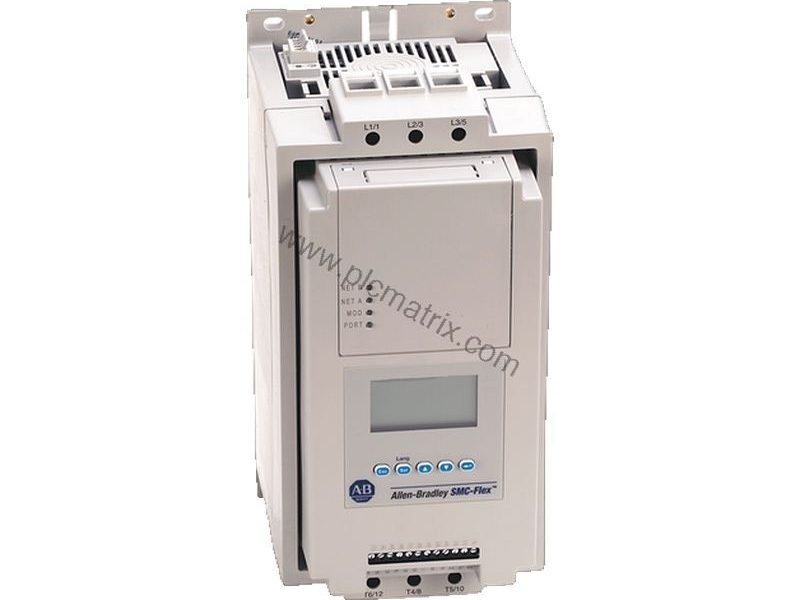

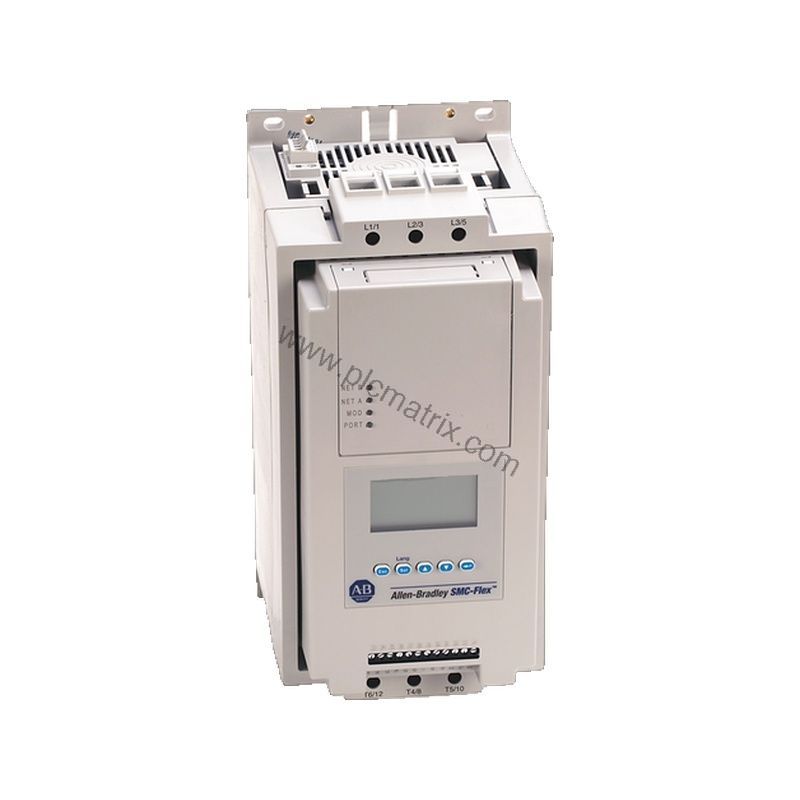

Allen-Bradley 150-F625NZE SMC-Flex Solid State Controller 625A

Product Introduction

When industrial motors start with a sudden jolt, the resulting torque shock and peak current can damage equipment and disrupt production. The Allen-Bradley 150-F625NZE SMC-Flex solid state controller addresses this challenge directly. Part of the SMC-Flex series, this open-enclosure controller is designed to minimize starting peak current and control torque shock in industrial systems. With a controller rating of 625 amperes and a horsepower rating of 500 HP at 460V AC, it handles demanding applications while protecting downstream machinery.

Technical Specifications Breakdown

The 150-F625NZE operates with an input line voltage of 230-690V AC, 3-phase, at 50 and 60 Hz. This wide voltage range allows integration into diverse global power systems without additional transformers. The control voltage is 110/120V AC for units rated 625-1250 A, ensuring compatibility with standard control circuits. The rated voltage is 690/YV AC. These specifications make the controller suitable for heavy industrial environments where power quality may vary.

Industry Applications

In conveyor systems, the 150-F625NZE reduces mechanical stress during startup by gradually ramping up torque. This extends belt life and reduces maintenance. For pump applications, the pump control feature minimizes pressure surges, preventing pipe damage. The smart braking option stops motors within 2 minutes, compared to typical coast-down times of 15 minutes, which is critical for emergency stops in processing lines. The slow-speed operation allows operators to inspect saw blade tracking before full-speed operation, improving safety in woodworking and metal cutting.

Installation & Setup Guidance

When installing the 150-F625NZE, ensure the enclosure is mounted in a clean, dry location with adequate ventilation. The open enclosure design requires protection from dust and moisture in the final installation. Verify that the input line voltage matches the 230-690V AC, 3-phase supply and that control voltage is 110/120V AC. Use appropriately rated conductors for 625 A continuous current. The three hardware expansion ports accept optional digital and analog I/O expansion modules, allowing customization for specific application needs. Always follow the manufacturer's wiring diagrams to avoid misconnections.

Maintenance & Reliability

Regular inspection of the 150-F625NZE ensures long service life. Check the multicolored LED status indicators for immediate diagnostics. The built-in programmable overload protection adjusts to high-inertia loads, preventing nuisance trips. The diagnostic system detects jams and stalls by shutting down motors, which prevents mechanical damage. Periodically verify that all connections remain tight and that the enclosure is free from contaminants. The energy saver and torque control energy saver modes reduce power consumption during light load conditions, lowering operating costs.

Compatibility & Integration

The 150-F625NZE accepts optional communication modules for network connectivity, including common DPI modules, EtherNet/IP, ControlNet, and DeviceNet. This allows seamless integration with existing automation systems. The controller also accepts protection modules such as PTC and Ground Fault modules for enhanced motor protection. The standard control module includes linear acceleration and deceleration, smart motor braking, energy saver, torque control energy saver mode, and pump control—all reducing inventory complexity.

Selection Guide & Purchasing Advice

Before purchasing the 150-F625NZE, verify that the input voltage (230-690V AC, 3-phase) and control voltage (110/120V AC) match your facility's supply. Confirm that the 625 A rating and 500 HP at 460V AC meet your motor requirements. For complete technical specifications and to check current availability, contact BluePLC Industrial. Our team can help you select the right accessories, including communication modules and I/O expansion boards, to optimize your system.
