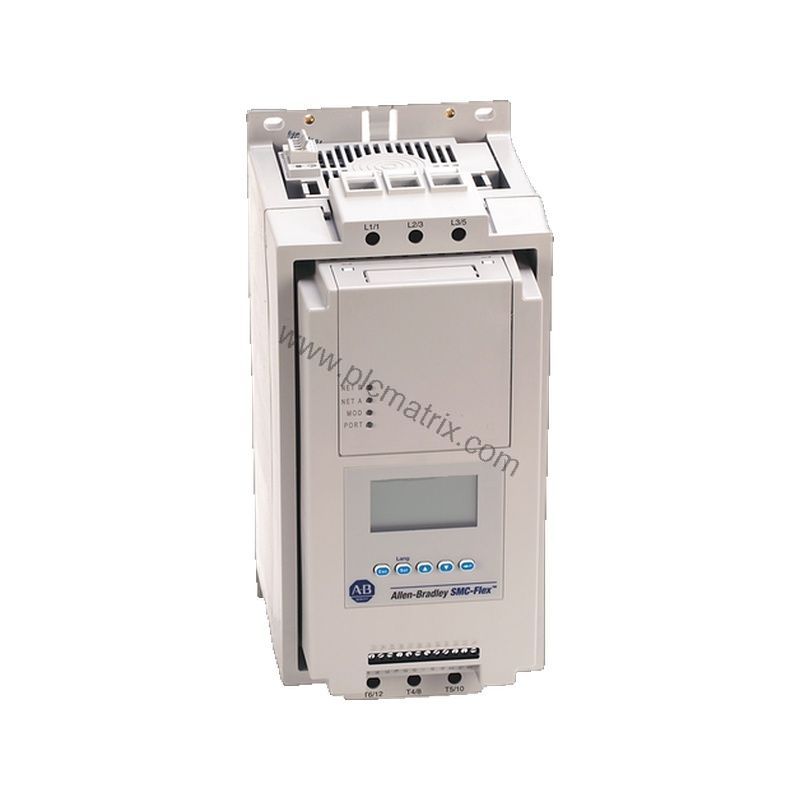

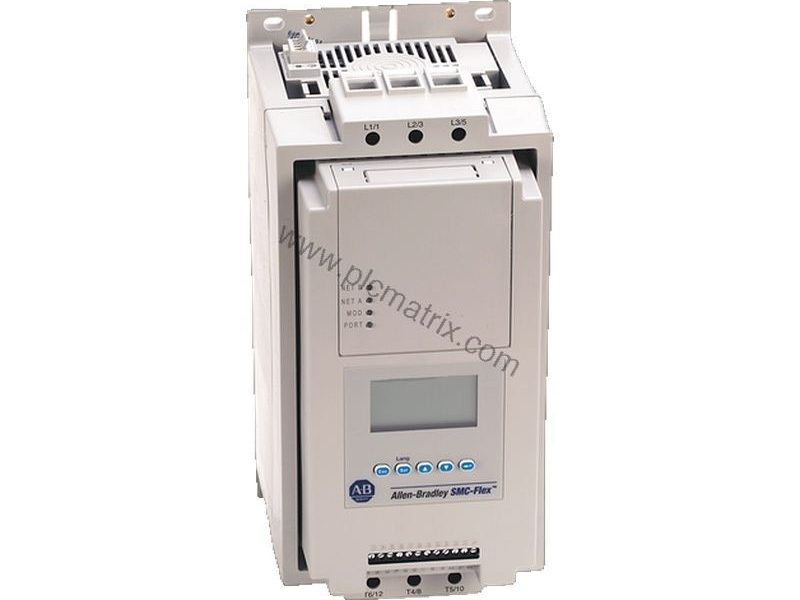

Allen-Bradley 150-F625NCE SMC-Flex Solid State Controller 625A

Product Overview

When production downtime from motor startup stress drives up maintenance costs, the Allen-Bradley 150-F625NCE SMC-Flex solid state controller delivers a cost-effective solution. Part of the SMC-Flex series, this 625 A controller provides precise control over induction motors, reducing mechanical wear and energy waste. With a 500 Hp rating at 460V AC and a wide input voltage range of 200-575V AC, three-phase, 50 and 60 Hz, it adapts to diverse industrial power systems without expensive reconfiguration.

Technical Specifications

The 150-F625NCE is built around key specifications that directly impact operational efficiency and total cost of ownership:

Controller Rating: 625 A, 500 Hp at 460V AC — this high-current capacity supports large motors commonly found in pumps, compressors, and conveyors, reducing the need for multiple controllers.

Input Line Voltage: 200-575V AC, three-phase, 50 and 60 Hz — global voltage compatibility eliminates the expense of step-down transformers or frequency converters, simplifying installation across facilities.

Control Voltage: 110/120V AC (625-1250 A units) — standard control voltage lowers wiring costs and integrates easily with existing control panels.

Enclosure Type: Open — allows flexible mounting in cabinets, reducing enclosure expenses while providing adequate cooling for the 625 A rating.

Industry Applications

The 150-F625NCE excels in high-torque applications where startup current control saves energy and extends equipment life. In water treatment plants, it manages large pump motors, reducing peak demand charges by limiting inrush current. For mining conveyors, the seven standard starting modes (including soft start and current limit) minimize belt stress and mechanical shock, lowering repair frequency. In HVAC systems for commercial buildings, the built-in electronic motor overload protection prevents costly motor burnouts, while the metering module tracks energy consumption for sustainability reporting.

Installation & Setup Guidance

Mount the 150-F625NCE in a clean, dry enclosure with adequate ventilation to maintain the 625 A rating. Connect three-phase power (200-575V AC, 50/60 Hz) to the line terminals, and route motor leads to the load side. For the control circuit, apply 110/120V AC to the designated terminals. Configure the seven starting modes via the LCD display module — select soft start for gentle acceleration or current limit for constant torque applications. Verify that the SCR bypass and run contactor settings match the motor's duty cycle to optimize energy efficiency.

Maintenance & Reliability

To maximize return on investment, inspect the 150-F625NCE quarterly. Check for dust buildup on the open enclosure, which can impede heat dissipation and reduce the 625 A capacity. Verify that the LCD display shows no fault codes, indicating healthy SCR and bypass operation. The built-in electronic motor overload protection eliminates the need for external relays, reducing spare parts inventory. Because the controller uses solid-state components, there are no contacts to wear out, lowering long-term maintenance costs compared to electromechanical starters.

Selection Guide & Purchasing Advice

Before purchasing the 150-F625NCE, confirm that your motor's full-load current does not exceed 625 A and that your supply voltage falls within 200-575V AC, three-phase. For 460V AC motors, this unit delivers 500 Hp — verify your motor's horsepower matches. The open enclosure suits panel mounting; if outdoor installation is needed, plan for a weatherproof cabinet. BluePLC Industrial stocks the 150-F625NCE and can advise on compatible accessories like communication modules for network integration. Contact our team to verify lifecycle status and ensure this model meets your current project requirements.
