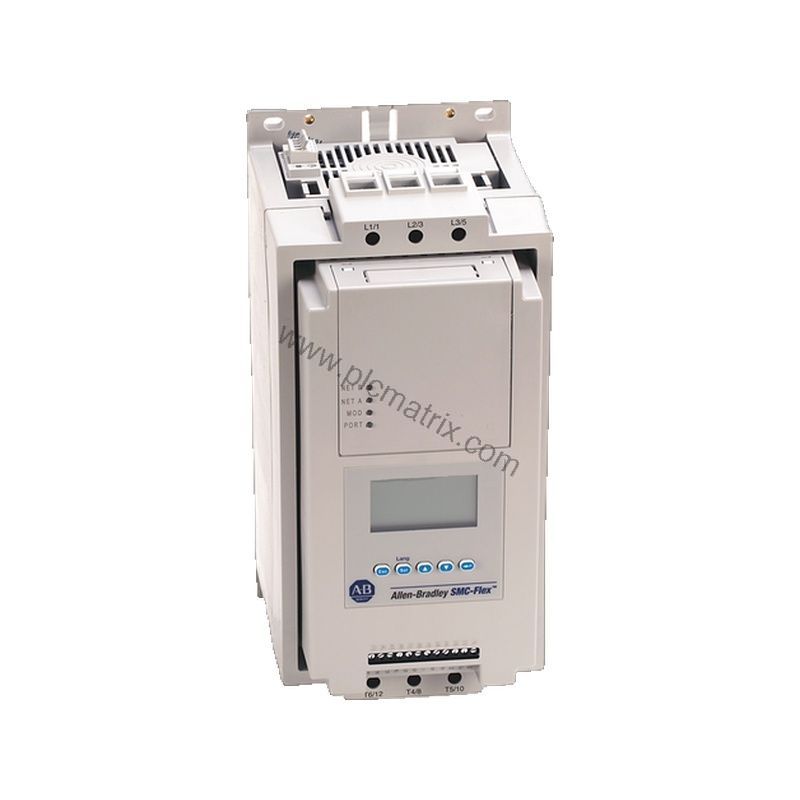

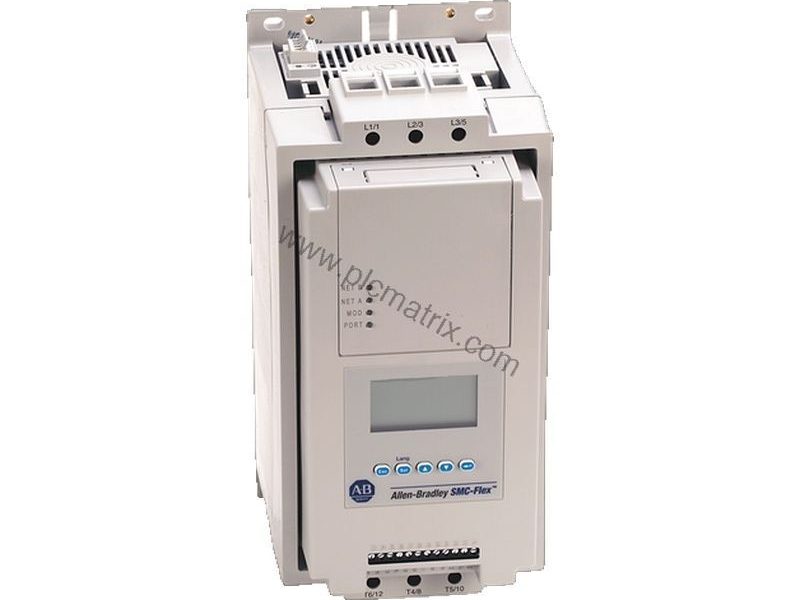

Allen-Bradley 150-F625NBED SMC Flex Smart Motor Controller Guide

Product Introduction

When industrial motor control demands high current handling and flexible protection, the Allen-Bradley 150-F625NBED SMC Flex smart motor controller delivers. This soft starter is rated at 625 A and supports up to 500 Hp at 460V AC, making it suitable for heavy-duty applications. With a control voltage of 100 to 120V AC and an integrated display, operators gain real-time status feedback including stopped, starting, stopping, at speed, alarm, and fault conditions. The 150-F625NBED is part of the SMC Flex family, designed for reliable starting and stopping of three-phase induction motors.

Technical Specifications Breakdown

The 150-F625NBED offers a range of specifications that ensure robust performance. Key parameters include:

Controller Rating: 625 A continuous, supporting motors up to 500 Hp at 460V AC.

Control Voltage: 100 to 120V AC, simplifying integration with standard control systems.

Overload Current: 208 A for line-connected motors and 283 A for delta-connected motors, providing flexibility in motor configurations.

Trip Classes: Selectable trip classes 10, 15, 20, and 30 allow matching protection to motor thermal characteristics.

Protection Features: Integrated motor overload protection, dv/dt protection via RC snubber network, and transient protection with optional metal oxide varistors (220 J).

Environmental Ratings: Operating temperature range from -5 to 50 °C (23 to 122 °F) for open devices, with IP00 protection per IEC.

These specifications ensure the 150-F625NBED can handle demanding industrial environments while providing precise motor control and safeguarding equipment.

Industry Applications

The 150-F625NBED is ideal for applications requiring smooth motor starting and stopping, such as conveyors, pumps, compressors, and fans. In a conveyor system, the soft starter reduces mechanical stress and prevents belt slippage by gradually ramping up torque. For pump applications, it minimizes water hammer and pressure surges, extending pipeline life. The controller's brake control option (SMB smart motor braking) provides rapid stopping without additional mechanical brakes, beneficial in emergency stop scenarios. With a maximum line-connected motor power of 800 Hp at 600V AC and delta-connected power up to 900 Hp at 575V AC, this unit scales to large industrial loads.

Installation & Setup Guidance

When installing the 150-F625NBED, consider the following:

Mounting: The open-type enclosure requires adequate ventilation. Ensure clearance around the unit for airflow, as heat dissipation is 446 W steady state with control and fan power.

Wiring: Power terminals accept two 13.5 mm diameter holes per pole. Use appropriate cable lugs and torque to manufacturer specifications. Control terminals use clamp yoke connections with M3 screws.

Configuration: Set trip class and overload current via the onboard display or software. Verify control voltage (100 to 120V AC) matches the supply. For PTC motor protection, connect up to six PTC sensors; the controller monitors resistance and trips at 3400 Ω ± 150 Ω.

Short-Circuit Protection: Use standard fuses, circuit breakers, or high-capacity time-delay Class CC/J/L devices. The unit supports up to 74 kA fault current at 600V with appropriate fusing.

Always follow local electrical codes and the manufacturer's installation manual for safe operation.

Maintenance & Reliability

Routine inspection of the 150-F625NBED ensures long service life. Check for dust accumulation on the heatsink and fan; clean with low-pressure compressed air if needed. Verify that all power and control connections remain tight. The controller's internal bypass feature reduces heat generation during steady-state operation, enhancing reliability. Monitor the status indicators for alarms or faults. The unit is designed for an operating temperature range of -5 to 50 °C and humidity of 5 to 95% noncondensing. For environments with high vibration, the controller withstands up to 4 G shock and 1.0 G peak vibration (0.15 mm displacement). Regular testing of the PTC input circuit and overload protection ensures continued safety.

Selection Guide & Purchasing Advice

Before purchasing the 150-F625NBED, verify that the motor full-load current (FLC) falls within the controller's overload range (208 to 625 A for line-connected motors). Confirm the supply voltage matches the rated operational voltage of 200 to 480V AC (-15%, +10%) per UL/CSA/NEMA. The controller supports both line and delta motor connections; select the appropriate overload current setting. For applications requiring fast stopping, the optional SMB smart motor braking feature is available. Contact BluePLC Industrial for current lifecycle status and availability. BluePLC Industrial is a trusted supplier of industrial automation parts, offering genuine Allen-Bradley products and expert support to ensure you select the right controller for your application.
