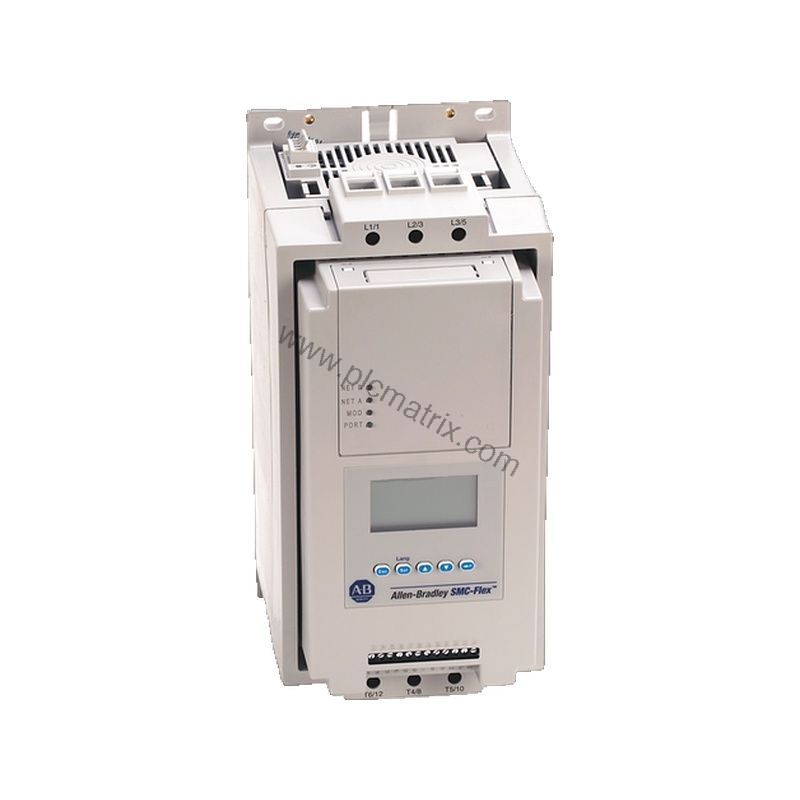

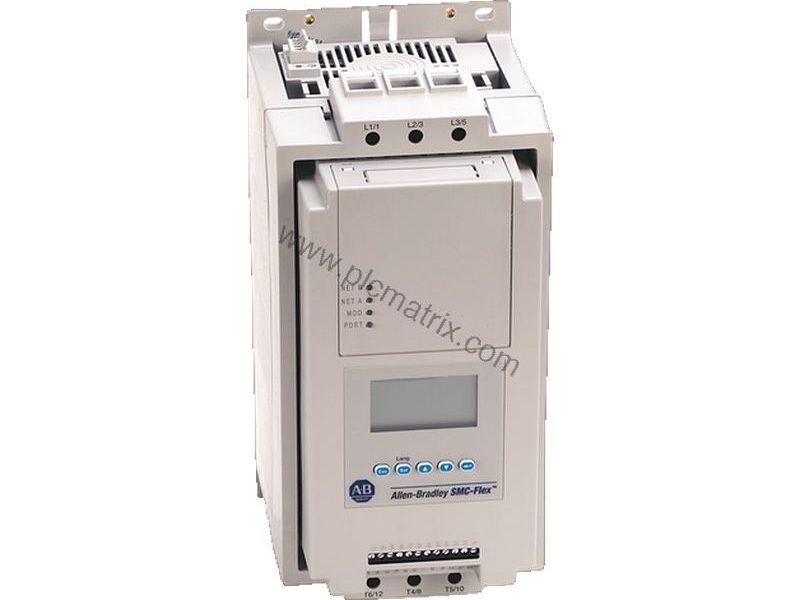

Allen-Bradley 150-F625NBEB SMC Flex Open Smart Motor Controller 625A

Product Overview

When industrial processes demand precise motor control and reduced mechanical stress, the Allen-Bradley 150-F625NBEB SMC Flex open smart motor controller delivers reliable performance. This solid-state controller, part of the Bulletin 150 series, handles up to 625 A and 500 Hp at 460V AC, making it suitable for heavy-duty applications. The open enclosure design allows flexible integration into existing panels, while the built-in pump control option optimizes starting and stopping for fluid handling systems.

Technical Specifications Breakdown

The 150-F625NBEB operates on an input line voltage of 200...480V AC, 3-phase, 50/60 Hz, with a control voltage of 100...120V AC. It offers multiple trip classes (10, 15, 20, and 30) and a trip current rating of 117% of motor FLC. The controller includes an RC snubber network for DV/DT protection and metal oxide varistors (220 J optional) for transient protection. For auxiliary contacts, the conventional thermal current (Ith) is AC/DC: 5 A, and the rated operational current is 3A @ 120V AC, 1.5A @ 240V AC. The input OFF-state current is less than 10 mA AC and less than 3 mA DC. Status indication covers stopped, starting, stopping, at speed, alarm, and fault conditions.

Industry Applications

This motor controller excels in pumping stations, conveyor systems, and HVAC installations where smooth acceleration and deceleration reduce wear on mechanical components. The pump control option specifically addresses water and wastewater applications, minimizing pressure surges and extending pump life. In manufacturing lines, the 150-F625NBEB handles high-inertia loads and frequent starts, improving overall equipment reliability. The adjustable braking current (0...400% of motor FLC) via the optional SMB smart motor braking feature provides controlled stopping for applications requiring quick deceleration.

Installation & Setup Guidance

Mount the open-style controller in a clean, dry enclosure rated for the environment. Ensure proper ventilation around the heatsink hockey puck thyristor modules. Connect line and load power using the two 13.5 mm diameter holes per power pole. Set the control voltage to 100...120V AC and verify the input line voltage matches your supply (200...480V AC). Configure the trip class and overload settings according to motor nameplate data. The integrated motor overload protection simplifies wiring by eliminating separate overload relays.

Maintenance & Reliability

Regularly inspect the heatsink and fan assembly for dust buildup, as the heatsink fan draws 150VA at 110/120V AC. Check the RC snubber network and metal oxide varistors for signs of damage. Operate the controller within the specified temperature range of -5 to 50 °C (23 to 122 °F) and humidity of 5...95% noncondensing. The IP00 (open device) rating requires installation in a suitable enclosure. Periodic testing of status indications and auxiliary contacts ensures continued reliable operation.

Selection Guide & Purchasing Advice

Before ordering the 150-F625NBEB, verify your motor full-load current and voltage requirements. Confirm the available fault current at your installation does not exceed 74kA @ 600V with appropriate fusing. For delta-connected motors, the controller supports up to 850A. Contact BluePLC Industrial for current lifecycle status and availability. Our team can help match this controller to your application needs and provide compatible accessories.
