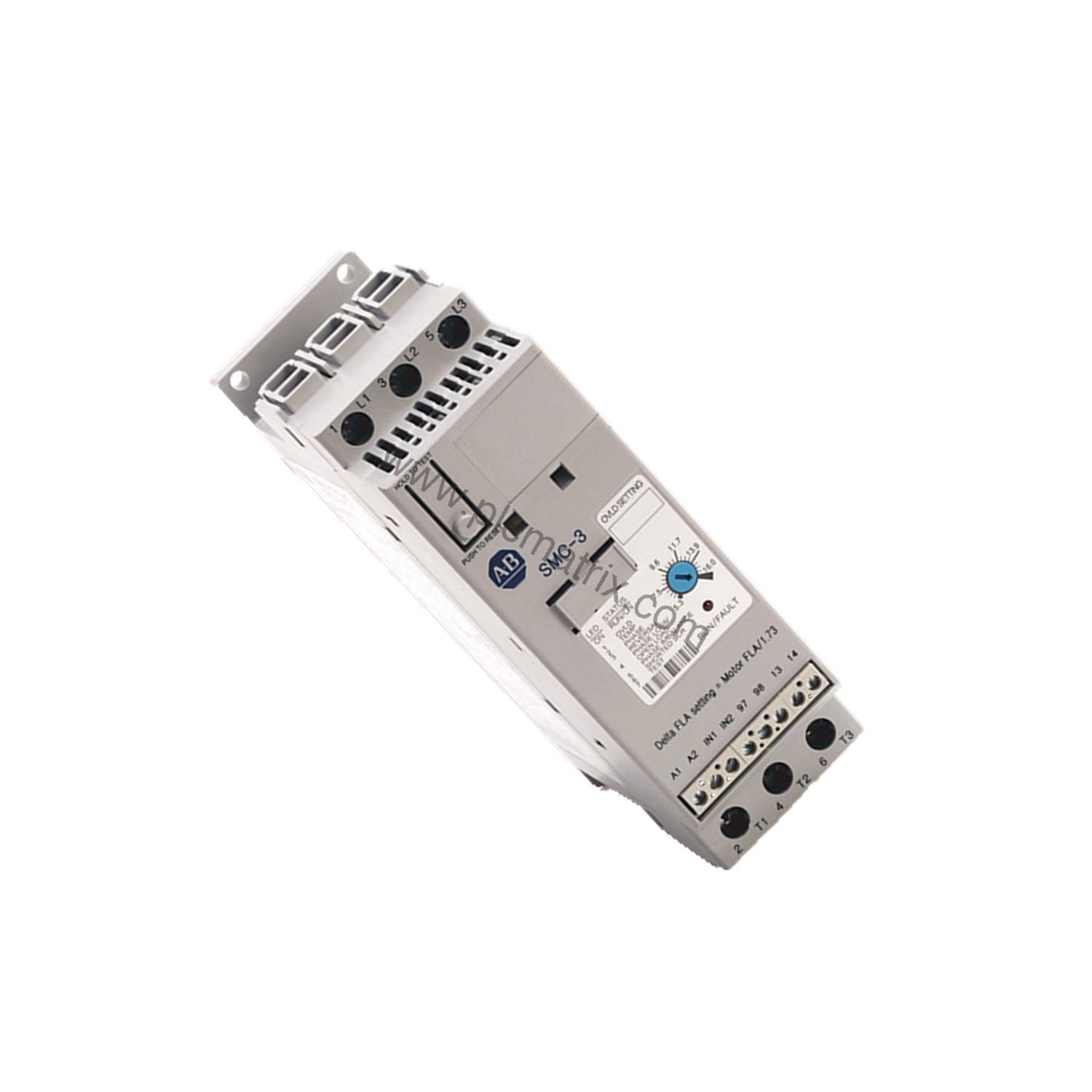

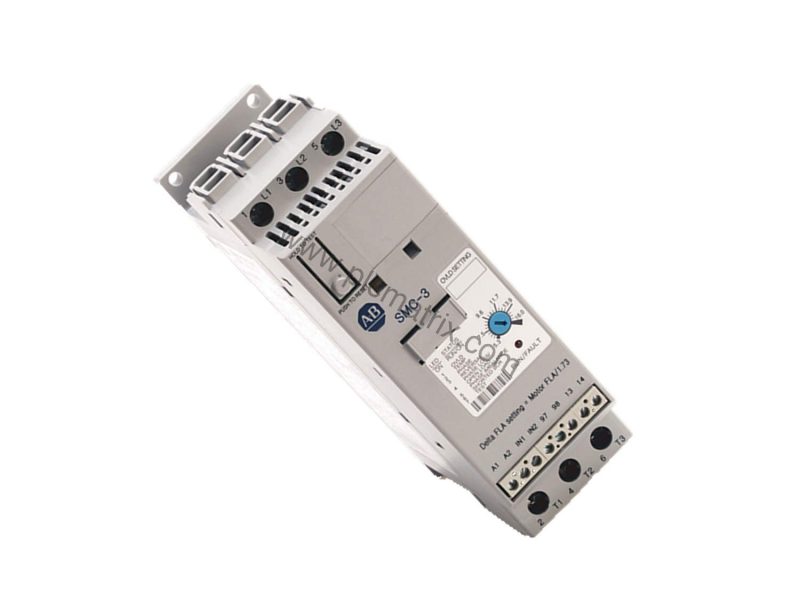

Allen-Bradley 150-F625JBA SMC-Flex Solid State Controller 625A 500HP

Product Overview

In the evolving landscape of industrial automation, motor control demands both precision and durability. The Allen-Bradley 150-F625JBA, part of the SMC-Flex series, addresses these needs with a robust solid-state controller rated at 625 A and 500 Hp at 460V AC. Housed in an IP54 (Type 12) enclosure, this unit is designed to protect against dust and water ingress, ensuring reliable operation in harsh factory environments. It controls 3-phase squirrel cage induction motors and supports Wye-Delta (6-lead) motors, offering flexibility for a wide range of applications.

Technical Specifications

The 150-F625JBA operates on an input line voltage of 400-460V AC, 3-phase, at 50 and 60 Hz. The control voltage for this unit (625-1250 A units) is 230/240V AC. The controller rating is 625 A, 500 Hp at 460V AC. The enclosure is rated IP54 (Type 12), and the unit weighs 225.00 lbs (102.06 kg). These specifications ensure compatibility with common industrial power systems and provide the necessary protection for continuous duty.

Industry Applications

This solid state controller is ideal for heavy-duty applications such as conveyors, pumps, compressors, and fans where smooth starting and stopping are critical. In a typical manufacturing plant, the 150-F625JBA can manage large motors with reduced mechanical stress, extending equipment life. Its ability to handle 625 A makes it suitable for high-power machinery in sectors like automotive, mining, and water treatment. The unit also supports seven standard operation modes, allowing operators to tailor performance to specific process requirements.

Installation & Setup Guidance

When installing the 150-F625JBA, ensure the input line voltage matches 400-460V AC, 3-phase, at 50 or 60 Hz. The control voltage must be 230/240V AC for units in this current range. Mount the IP54 enclosure in a location that allows adequate airflow and access to the front keypad and LCD screen. The unit comes with a run contactor (SCR bypass) and four programmable auxiliary contacts (AUX#1, AUX#2, AUX#3, AUX#4). Use the five-button keypad to configure parameters quickly. For network communication, the system supports I/O network capability, enabling control of up to two inputs and four outputs.

Maintenance & Reliability

Routine inspection of the 150-F625JBA should focus on verifying the enclosure seal integrity and checking for any signs of overheating or contamination. The electronic motor overload protection safeguards against overcurrent that could damage wiring or the motor itself. Monitor parameters such as 3-phase current, voltage, power factor, and motor thermal capacity usage via the LCD screen. Regular testing of the auxiliary contacts and bypass contactor ensures continued reliable operation. For optimal longevity, keep the unit clean and ensure ambient temperatures remain within the specified range.

Selection Guide & Purchasing Advice

Before purchasing the Allen-Bradley 150-F625JBA, verify that your motor's horsepower and voltage ratings align with the controller's 625 A and 500 Hp at 460V AC capacity. Confirm the input power supply matches 400-460V AC, 3-phase, at 50 or 60 Hz. For complete technical specifications, please contact BluePLC Industrial. Our team can assist with compatibility questions and provide current lifecycle status. BluePLC Industrial is a trusted supplier of industrial automation parts, ensuring genuine products and reliable support for your operations.
