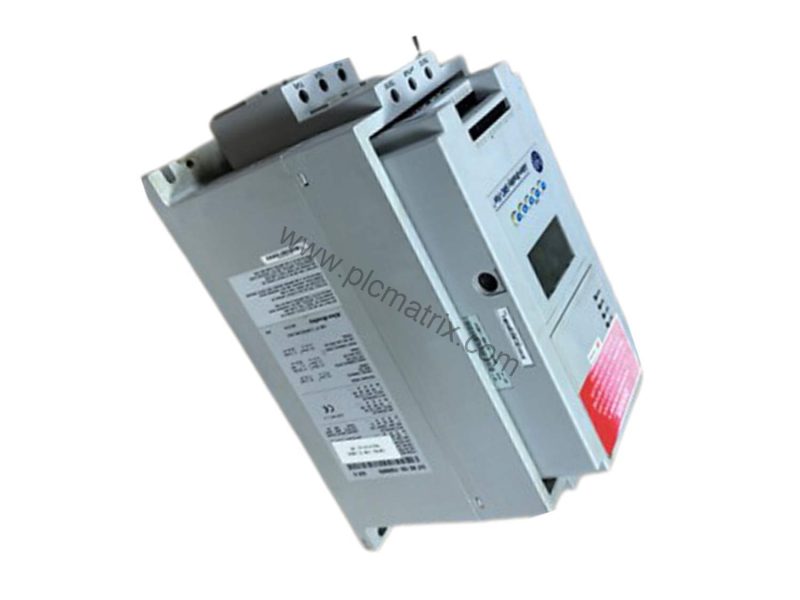

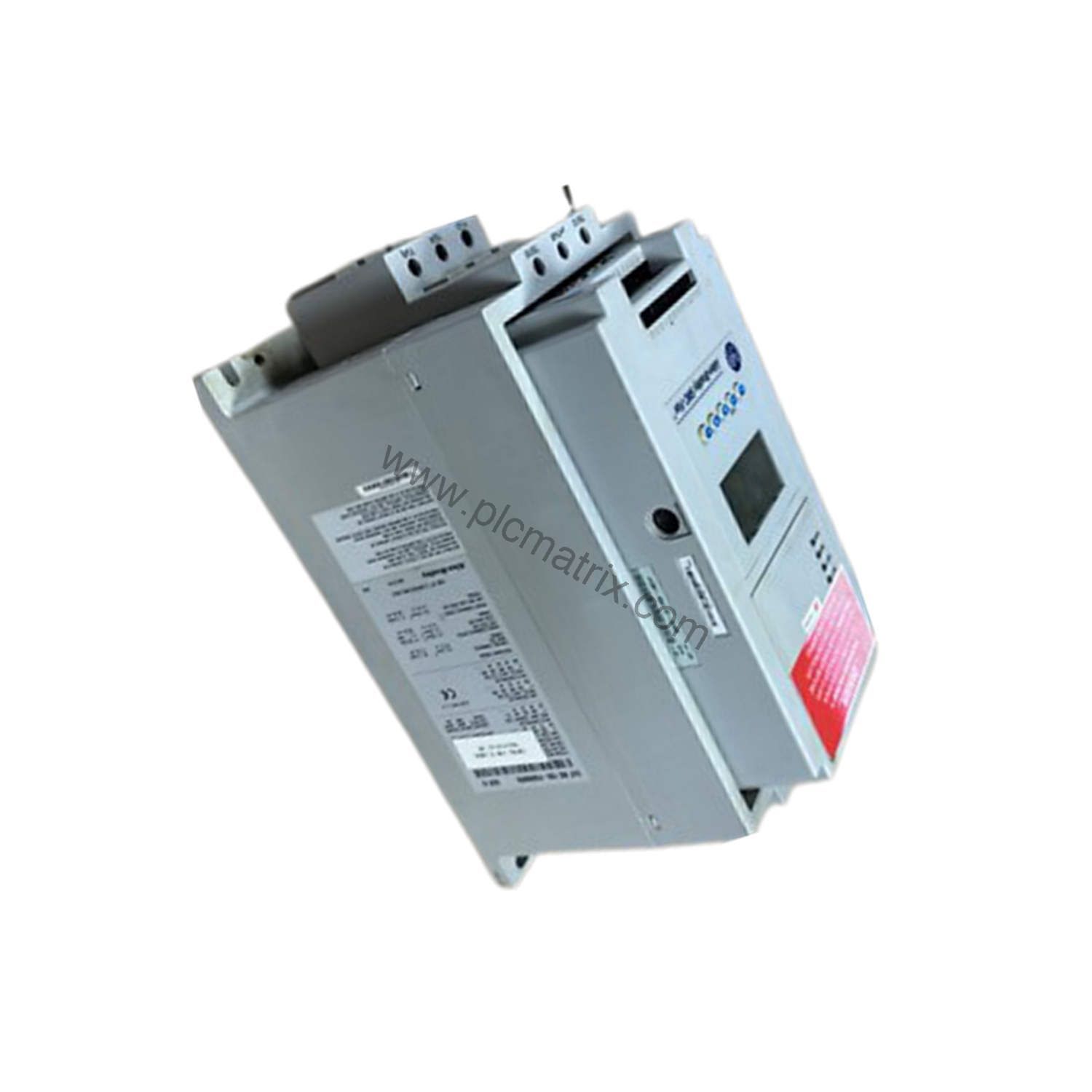

Allen-Bradley 150-F60NBRD SMC Flex Motor Controller 40 HP 60 A

Product Introduction

When a motor experiences high inrush current or mechanical stress during startup, the Allen-Bradley 150-F60NBRD SMC Flex smart motor controller provides a reliable solution. This solid-state controller is designed to protect three-phase induction motors by controlling acceleration and deceleration. With a rated output of 60 amperes and 40 horsepower at 460V AC, it suits medium-duty industrial applications. The 150-F60NBRD is an open-type controller from the SMC Flex family, known for its programmable starting and stopping modes that extend motor life.

Technical Specifications Breakdown

Key specifications for the 150-F60NBRD include an input line voltage of 200-460V AC, three-phase, at 50 and 60 Hz. The rated voltage matches this range, ensuring compatibility with common industrial power systems. The controller delivers 60 A continuous output and 40 HP at 460V AC. Control voltage is 120/240 VAC, simplifying integration with standard control circuits. The unit weighs 13.00 lbs (5.90 kg) and comes in an open enclosure, making it suitable for panel mounting.

Industry Applications

In conveyor systems, the 150-F60NBRD reduces mechanical shock during startup by using soft start and current limit modes. This protects belts and gearboxes from wear. For pump applications, the controller prevents water hammer by gradually ramping up motor speed. It also supports dual ramp starting for loads that require different acceleration profiles. The built-in electronic overload protection and fault detection (phase reversal, voltage unbalance, undervoltage, overvoltage, jam, underload, line fault, overload, excessive starts per hour, open gate, power loss) make it ideal for critical processes where downtime is costly.

Installation & Setup Guidance

From a maintenance engineer's perspective, the 150-F60NBRD simplifies installation. Mount the open-type controller in a clean, dry enclosure with adequate ventilation. Connect the three-phase input line voltage (200-460V AC) to the line terminals and the motor to the load terminals. Use the control terminals for start, stop, and optional inputs. The embedded LCD and keypad allow local configuration of starting modes, ramp times, and current limits. For network integration, install optional communication adapters (RS485, ControlNet, Ethernet, ProfiBus, HVAC) via the DPI port. Always verify that the control voltage matches the 120/240 VAC supply before powering up.

Maintenance & Reliability

Routine inspection of the 150-F60NBRD ensures long service life. Check the ambient temperature stays between 23 and 122 °F during operation and between -4 and 167 °F in storage. Inspect terminal connections for tightness and signs of overheating. The built-in SCR bypass/run contactor reduces heat generation during full-speed operation, improving reliability. Monitor the LCD for fault codes such as communication fault, controller temp, stall, or excessive starts per hour. Regular testing of the auxiliary contacts and status indicators confirms proper feedback to monitoring systems like HMI or SCADA.

Selection Guide & Purchasing Advice

Before purchasing the 150-F60NBRD, verify that your motor's full-load current does not exceed 60 A and that the line voltage is within 200-460V AC three-phase. Confirm the control voltage requirement (120/240 VAC) matches your system. The controller supports line or delta connected motors and standard three-phase squirrel cage induction motors. For complete technical specifications and current availability, contact BluePLC Industrial. Our team can help with replacement options, accessories, and lifecycle status to ensure you get the right solution for your application.
