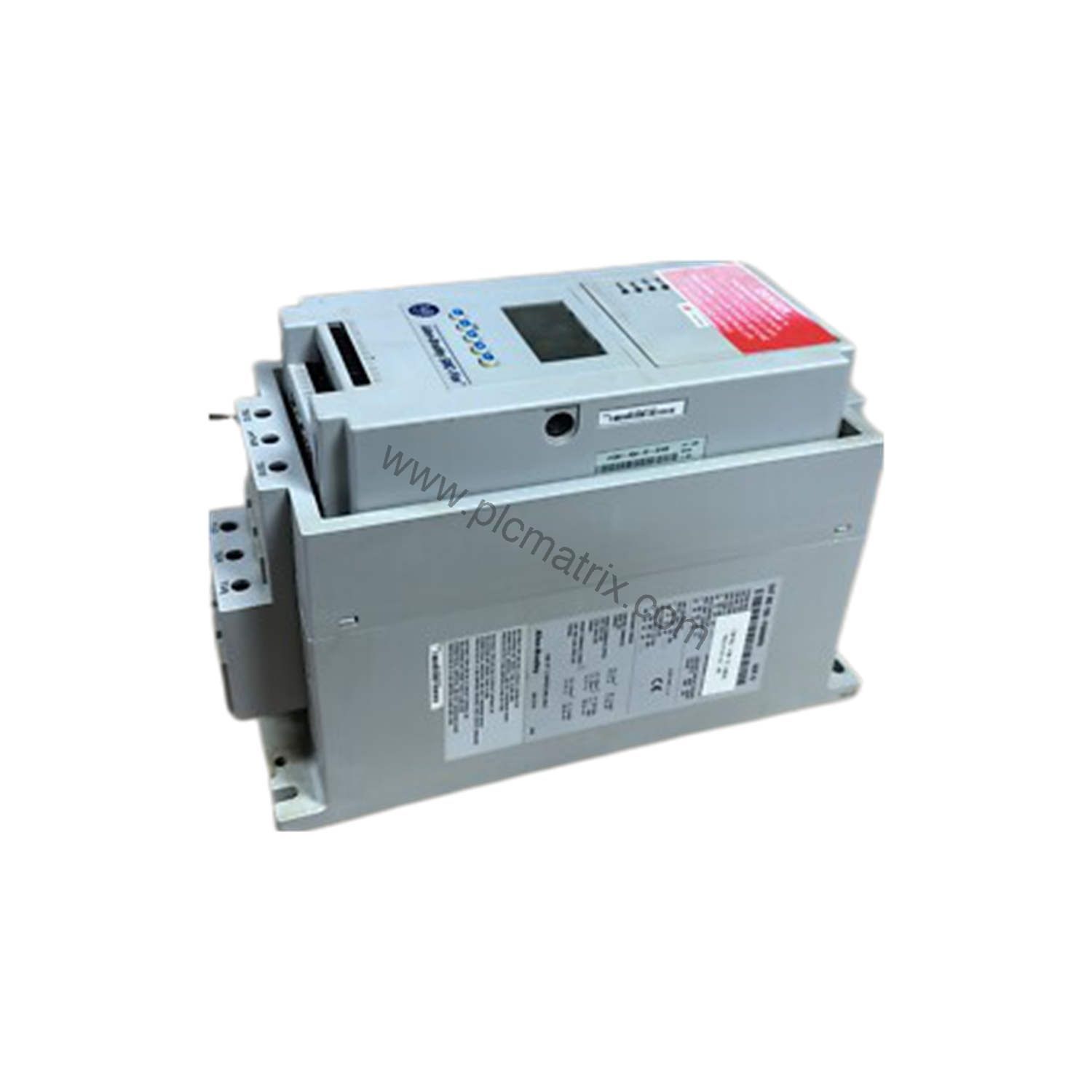

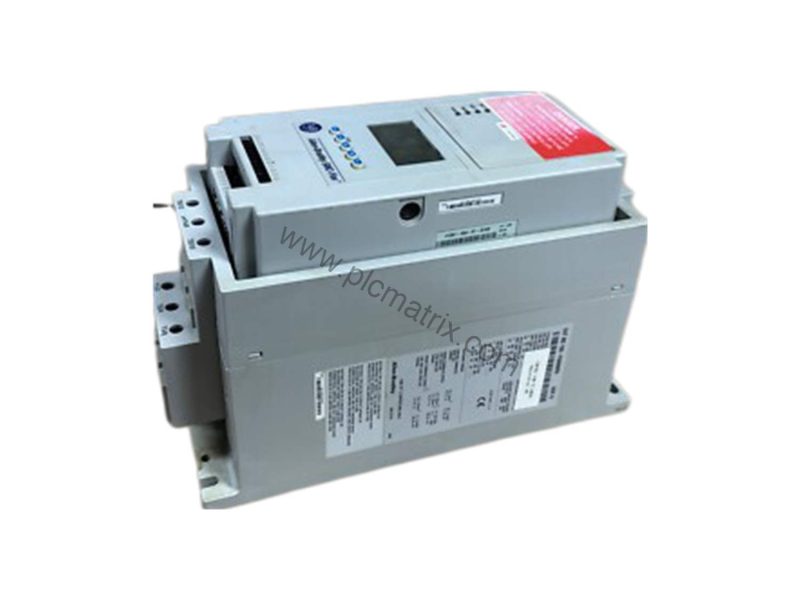

Allen-Bradley 150-F60NBR SMC-Flex Solid State Controller 60A

Product Introduction

When your facility demands precise and reliable motor starting, the Allen-Bradley 150-F60NBR SMC-Flex solid-state controller delivers. This smart motor controller is designed for three-phase applications requiring robust performance and diagnostic capabilities. Part of the SMC-Flex family, the 150-F60NBR features an open type enclosure, a backlit LCD, keypad input, and LED status indicators for easy monitoring and configuration.

Technical Specifications

The 150-F60NBR operates with a three-phase input line voltage of 200-460V AC at 50 and 60 Hz. Its control voltage is 24V AC/DC (for 5-480 A units), and the rated voltage is 200-460V AC. The controller rating is 60 A and 40 Hp at 460V AC. These specifications ensure compatibility with a wide range of industrial motor systems, providing flexibility in installation and operation.

Protection and Diagnostics

Built-in protection features of the SMC Flex series, including the 150-F60NBR, cover overload, overvoltage, underload, undervoltage, power loss, voltage unbalance, controller temperature, open gate, phase reversal, stall, jam, communication fault line fault, and excessive starts per hour. These safeguards help prevent equipment damage and reduce unplanned downtime, making the controller a reliable choice for critical processes.

Industry Applications

The 150-F60NBR is well-suited for applications such as conveyors, pumps, fans, and compressors where controlled acceleration and deceleration are essential. Its seven standard modes of operation—preset slow speed, soft start, linear speed acceleration, soft stop, current limit start, dual ramp, and full voltage—allow engineers to tailor motor performance to specific load requirements, improving system efficiency and extending equipment life.

Installation and Setup Guidance

When installing the 150-F60NBR, ensure the input line voltage matches the 200-460V AC three-phase supply and that control voltage is 24V AC/DC. Mount the open enclosure in a clean, dry location with adequate ventilation. Follow standard wiring practices for solid-state controllers and verify all connections before powering up. Refer to the manufacturer's manual for detailed configuration steps using the keypad and LCD interface.

Selection Guide and Purchasing Advice

Before purchasing the Allen-Bradley 150-F60NBR, confirm that your motor's full-load current and horsepower rating align with the controller's 60 A and 40 Hp at 460V AC capabilities. Verify the input voltage and frequency match your site supply. For complete technical specifications and current availability, contact BluePLC Industrial. Our team can help you confirm compatibility and provide support for your motor control needs.
