Allen-Bradley 150-F60NBDD SMC-Flex Soft Starter: 460V, 60A, 40HP

Product Overview

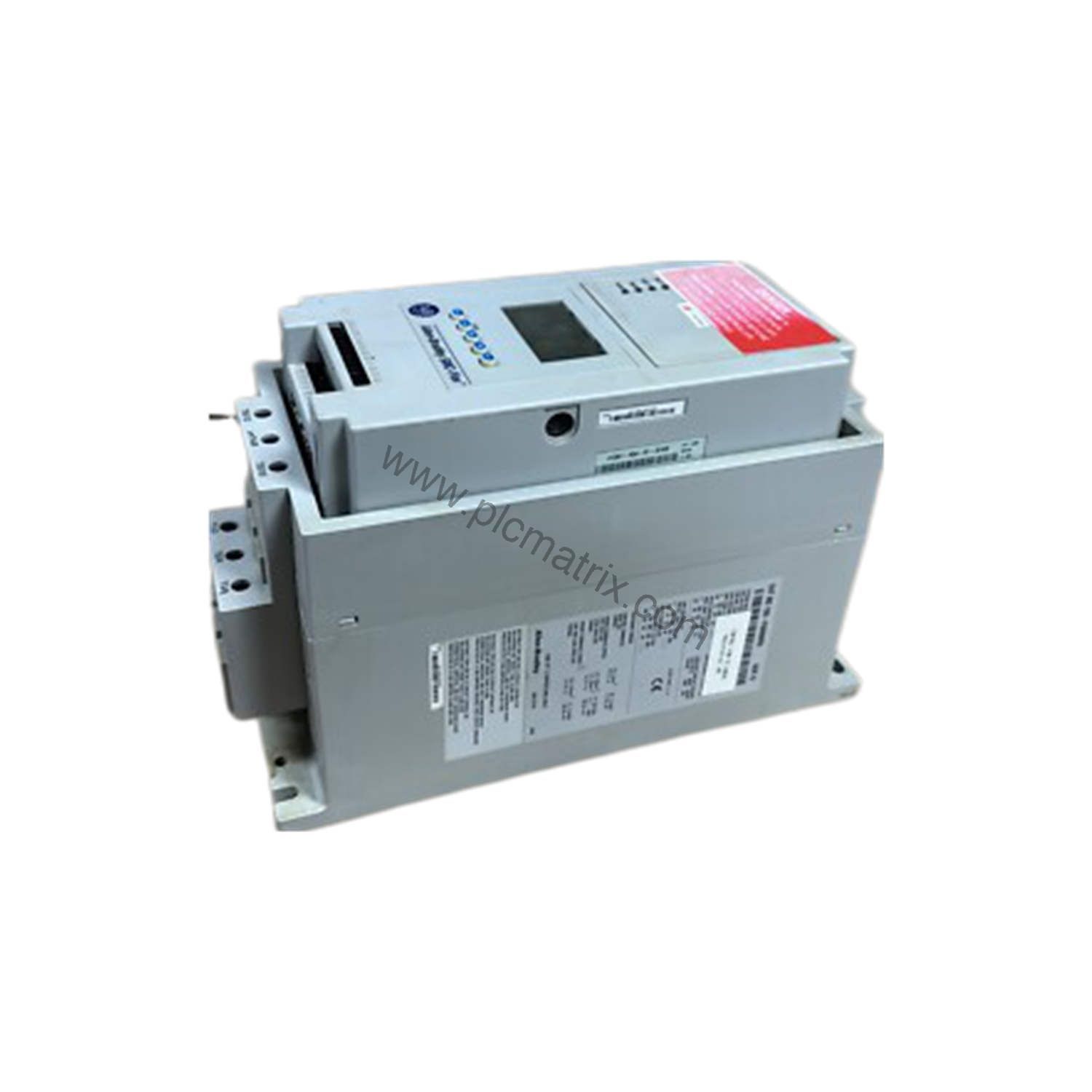

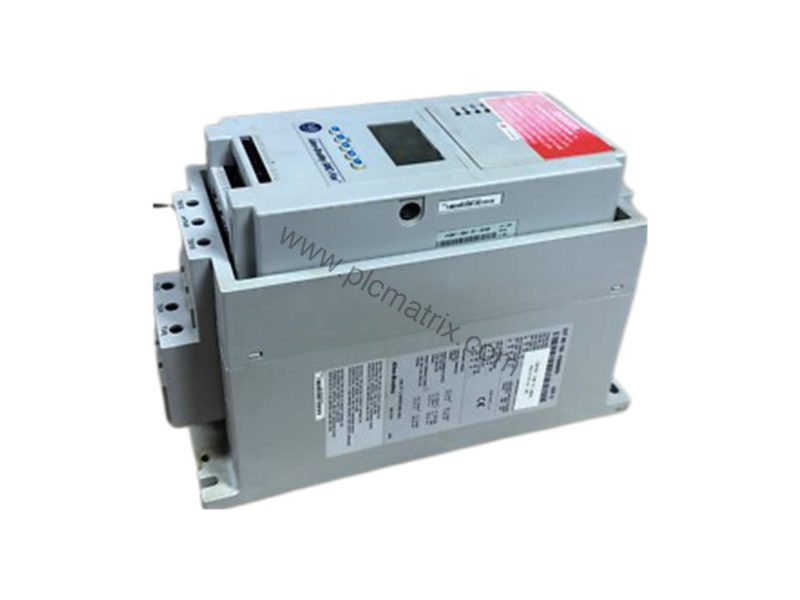

As industrial automation evolved from electromechanical starters to precise digital control, the Allen-Bradley 150-F60NBDD SMC-Flex soft starter emerged as a key solution for managing 3-phase squirrel-cage induction motors. This solid-state, low-voltage controller operates at 460 Volts AC (3-phase), 60 Amps, and 40 Horsepower, delivering smooth acceleration and deceleration while reducing mechanical stress on equipment. Built with an open design, a 5-button front-panel keypad, and a built-in LCD screen, the 150-F60NBDD provides operators with intuitive programming and real-time diagnostics. This model is part of the SMC-Flex series, known for its flexibility and robust protection features.

Technical Specifications Breakdown

The 150-F60NBDD is rated for a line input voltage of 460 Volts AC, with a control voltage range of 200 to 230 Volts AC. Its current rating of 60 Amps supports a power rating of 40 Horsepower, making it suitable for medium-duty motor applications. The built-in display is a 3-line by 16-character LCD, complemented by a 5-button front-panel keypad for easy configuration. Four fully programmable auxiliary contacts (N.O. or N.C.) allow integration with external control systems. Communication is handled via built-in DPI capability, enabling connection to Allen-Bradley 20-COMM modules for Ethernet, ProfiBUS, DeviceNet, ControlNet, and others. An optional braking control feature provides faster motor stopping when needed.

Industry Applications

In manufacturing plants, conveyors and pumps often experience high inrush currents during startup, leading to voltage dips and mechanical wear. The 150-F60NBDD addresses this with soft start and soft stop modes, extending equipment life. For example, a 40 HP fan in an HVAC system can be started gradually using the dual ramp start mode, reducing belt stress and preventing duct pressure surges. Similarly, in wastewater treatment, the soft starter's underload and voltage unbalance protection safeguard motors from damage due to dry running or phase loss. These capabilities make the 150-F60NBDD a reliable choice for critical processes where uptime is essential.

Installation & Setup Guidance

Mount the 150-F60NBDD in a clean, dry enclosure with adequate ventilation to dissipate heat. Ensure the supply voltage matches the 460 Volts AC rating and that the control circuit receives 200-230 Volts AC. Wire the motor and control connections per the wiring diagram provided in the manual. Use the 5-button keypad and LCD screen to navigate the menu and select the appropriate starting mode—such as soft start, current limit start, or full voltage start. Program the auxiliary contacts for status indication or fault signaling. For advanced integration, connect a DPI communication module to the built-in serial interface. Always follow local electrical codes and the manufacturer's guidelines.

Compatibility & Integration

The 150-F60NBDD integrates seamlessly with Allen-Bradley control systems via its built-in DPI communication port. This interface supports connection to 20-COMM modules for Ethernet, ProfiBUS, DeviceNet, ControlNet, Interbus, and RS485-DF1 networks. Operators can monitor motor performance, adjust parameters, and receive diagnostics from a central PLC or HMI. The four programmable auxiliary contacts can be wired to a PLC input module for remote status monitoring. This compatibility makes the 150-F60NBDD a flexible component in both new installations and retrofit projects.

Selection Guide & Purchasing Advice

Before purchasing the 150-F60NBDD, verify that your motor's full-load current does not exceed 60 Amps and that the line voltage matches 460 Volts AC. Consider whether you need the optional braking control for faster stopping. For communication, select the appropriate 20-COMM module based on your network protocol. BluePLC Industrial stocks the Allen-Bradley 150-F60NBDD and can provide current lifecycle status and availability. Contact our team for assistance with compatibility and to ensure you receive the correct model for your application.
