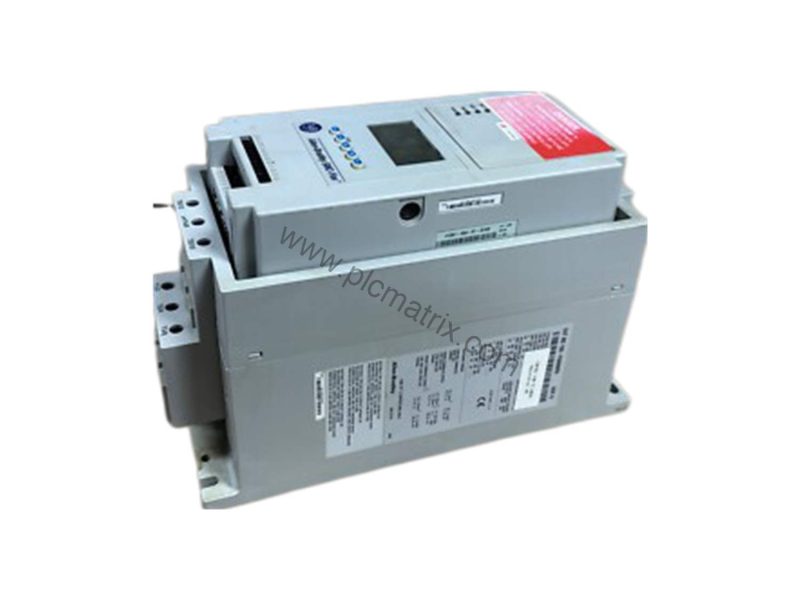

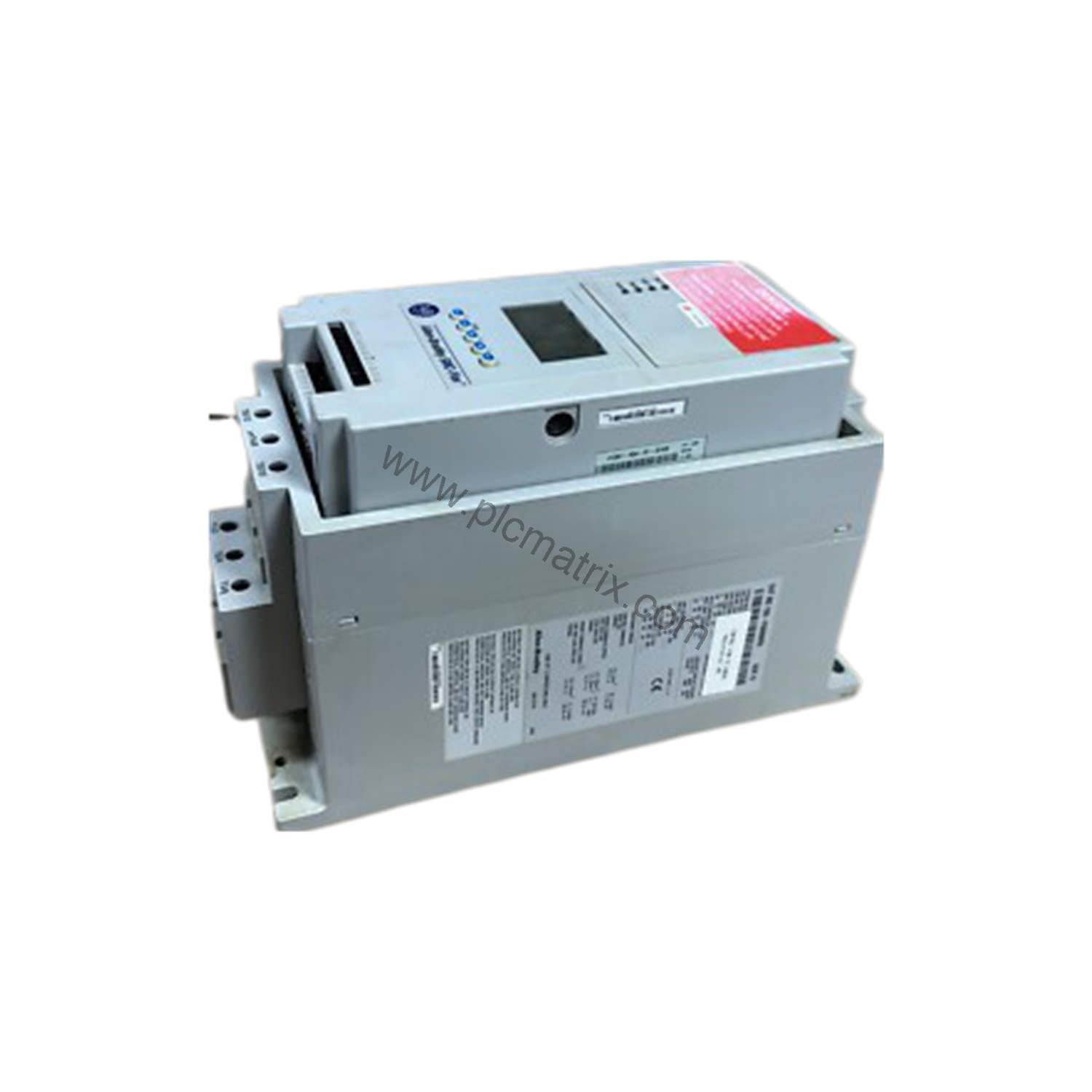

Allen-Bradley 150-F60NBDB SMC Flex Smart Motor Controller 60A

Product Introduction

The Allen-Bradley 150-F60NBDB SMC Flex Smart Motor Controller is a versatile soft starter designed for demanding industrial motor control applications. With a 60 A controller rating and support for 10-40 Hp at 460V AC, this unit provides reliable starting and stopping for three-phase motors. The integrated display simplifies setup and monitoring, while the 100...240V AC control voltage ensures compatibility with global power systems.

Part of the SMC Flex sub-brand, the 150-F60NBDB combines advanced features like pump control and multiple trip classes (10, 15, 20, and 30) to protect motors and driven equipment. Its open-type enclosure and IP20 protection per IEC make it suitable for panel mounting in controlled environments.

Technical Specifications

The 150-F60NBDB delivers robust performance with key parameters derived from its datasheet:

Controller Rating: 60 A, supporting line-connected motors up to 50 Hp @ 575V AC and delta-connected motors up to 75 Hp @ 460V AC.

Control Voltage: 100...240V AC (-15%, +10%), with a transformer control module rated at 75 VA.

Overload Current: 12 A for line-connected devices and 20.8 A for delta-connected devices, with trip current set at 117% of motor FLC.

Protection: DV/DT protection via RC snubber network, transient protection with optional 220 J metal oxide varistors, and a repetitive peak inverse voltage rating of 1400V per UL/CSA/NEMA.

Environmental: Operating temperature open: -5 to 50 °C (23 to 122 °F), humidity 5...95% noncondensing, altitude up to 2000 m, pollution degree 2.

Physical: Weight 5.7 kg, dimensions 150 mm width x 203 mm depth x 321 mm height.

These specifications ensure the controller handles a wide range of motor sizes and operating conditions while maintaining safety and reliability.

Industry Applications

The 150-F60NBDB excels in applications requiring controlled acceleration and deceleration of motors. Common use cases include:

Pump Control: The built-in pump control option reduces pressure surges and water hammer, extending pipeline and valve life. This is critical in water treatment plants and irrigation systems.

Conveyor Systems: Soft starting minimizes mechanical stress on belts and gearboxes, reducing maintenance costs and downtime in material handling operations.

HVAC Equipment: Fans and compressors benefit from adjustable start profiles, improving energy efficiency and system stability.

From a cost-benefit perspective, the 150-F60NBDB reduces wear on mechanical components and electrical systems, leading to lower total cost of ownership over the equipment lifecycle.

Installation & Setup Guidance

Proper installation is essential for optimal performance. The 150-F60NBDB is an open-type device requiring mounting in a suitable enclosure. Key installation points include:

Power Terminals: Use cable sizes as specified: lower line/load side 0.8...2.5 mm² (18...14 AWG), upper line side 2.5...95 mm² (14...3 AWG), upper load side 2.5...50 mm² (14...1 AWG). Tightening torque is 14.7 Nm (130 in-lb).

Control Circuit: Input OFF-state current is <10 mA AC and <3 mA DC, with OFF-state voltage max 50V AC. Ensure control wiring meets these limits to avoid false triggering.

Auxiliary Contacts: Four programmable NO/NC contacts (19/20, 29/30, 31/32, 33/34) rated at 5 A AC/DC thermal current, 3 A @ 120V AC, and 1.5 A @ 240V AC.

Follow the manufacturer's wiring diagrams and local electrical codes for safe integration.

Maintenance & Reliability

The 150-F60NBDB is designed for long service life with minimal maintenance. Routine checks should include:

Heat Dissipation: Steady state heat dissipation is 97 W (including control and fan power). Ensure adequate ventilation to maintain operating temperature within -5 to 50 °C.

Heatsink Fan: Rated at 20 VA @ 110/120V AC or 220/240V AC. Verify fan operation periodically to prevent overheating.

Environmental Factors: The unit withstands vibration up to 1.0 G peak and shock up to 15 G (opsal). Keep the enclosure clean and free from conductive dust.

Regular inspection of power connections and control wiring helps maintain reliability. For safety-rated applications, always follow the manufacturer's safety manual.

Selection Guide & Purchasing Advice

When selecting the 150-F60NBDB, verify compatibility with your motor's full-load current and voltage. The controller supports line-connected motors from 12...60 A @ 500/575V AC and delta-connected motors from 20.8...104 A @ 500/575V AC. Ensure your short-circuit protection device matches Type 1 coordination requirements.

BluePLC Industrial offers the Allen-Bradley 150-F60NBDB with expert support to help you choose the right configuration. Contact us for current availability and pricing.

For complete technical specifications for the 150-F60NBDB, please contact BluePLC Industrial.
