Allen-Bradley 150-F5NCDB SMC-Flex Soft Starter: 5 Amp, 3 HP Motor Controller

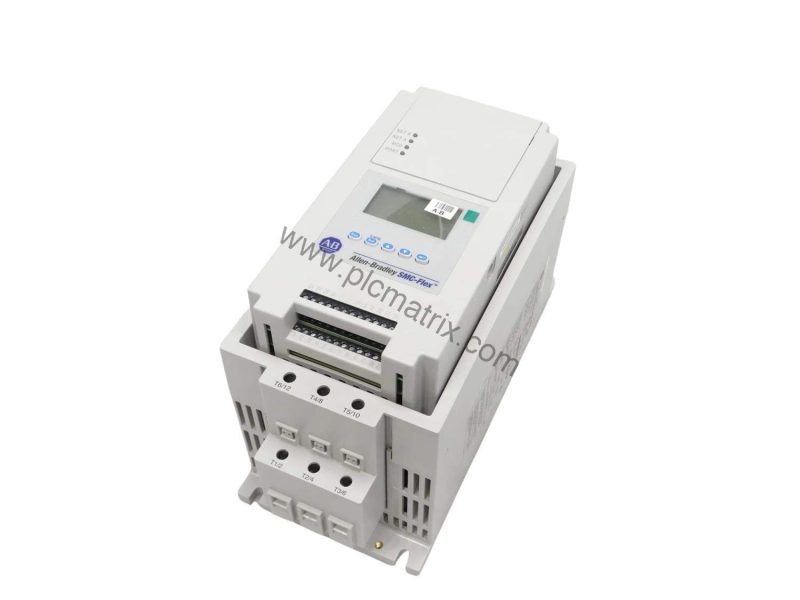

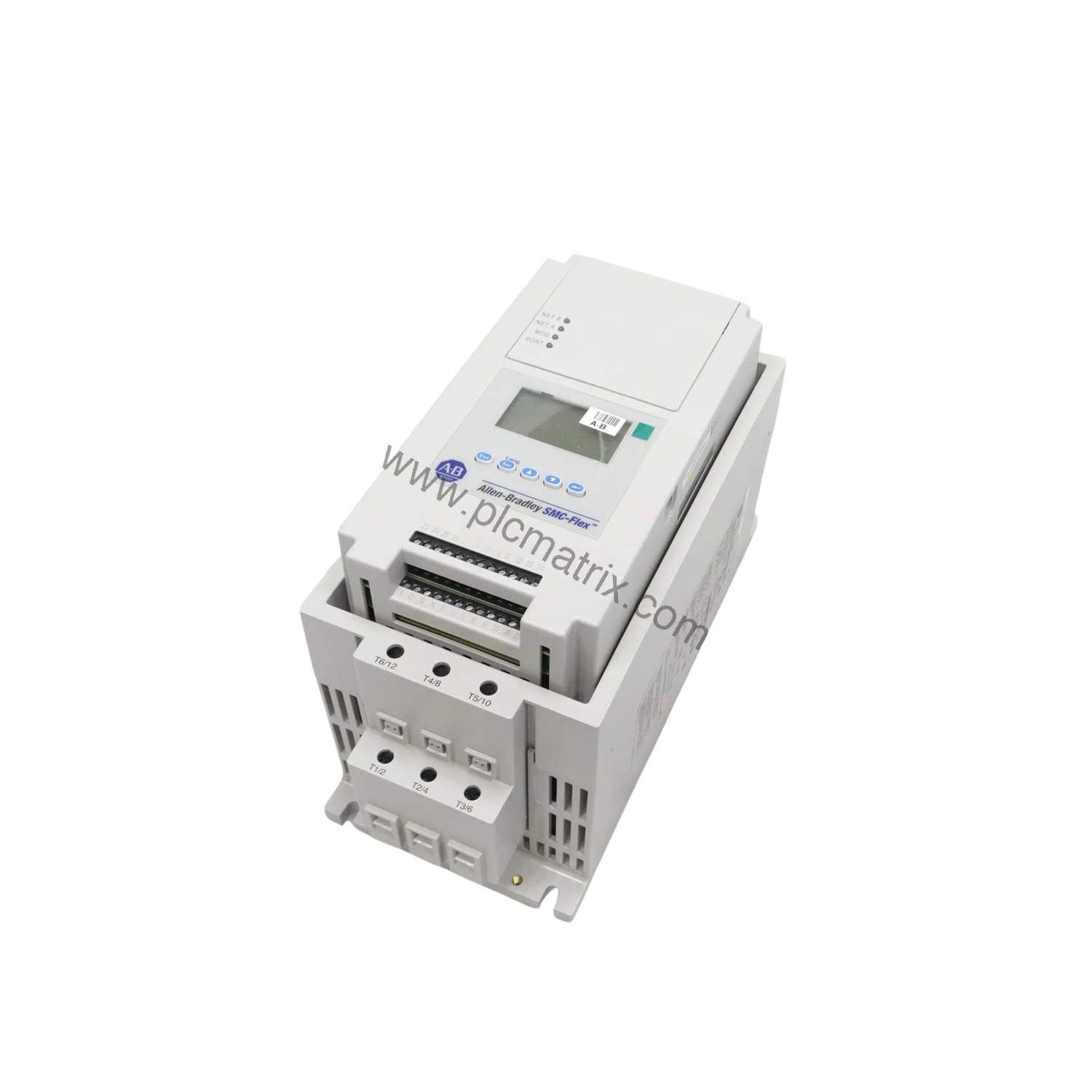

Product Overview: The Allen-Bradley 150-F5NCDB SMC-Flex Soft Starter

When industrial processes demand precise, microprocessor-controlled motor starting, the Allen-Bradley 150-F5NCDB delivers. This solid-state, low-voltage soft starter from the Bulletin 150 SMC-Flex family is designed for 3-phase squirrel-cage induction motors or Wye-Delta (6-lead) motors. With a 5.0 Amp current rating and 3.0 Horsepower power output at 460 Volts AC, it provides reliable, adjustable starting and stopping for smaller motor applications.

Technical Specifications Breakdown

Understanding the key specifications helps you match this controller to your application:

Line Input Voltage: 200 to 575 Volts AC (3-phase) – The wide operating range accommodates global voltage standards, with a nominal 460 VAC rating for common industrial systems.

Current Rating: 5.0 Amps – This maximum continuous current defines the motor size this controller can handle. Always verify your motor's full-load current does not exceed this value.

Power Rating: 3.0 Horsepower at 460 Volts AC – The mechanical output capability for typical induction motors at the nominal voltage.

Control Voltage: 200 to 230 Volts AC – The power supply for the internal control circuitry, separate from the main motor power.

Display and Keypad: A 3-line by 16-character LCD display and 5-button front-panel keypad simplify parameter programming and monitoring.

Auxiliary Contacts: 4 fully programmable auxiliary contacts (N.O. or N.C.) provide flexible status feedback for external systems.

Communication: Built-in DPI communication capability enables connection to HMI modules and various communication modules via a serial interface port.

Industry Applications for the 150-F5NCDB

This soft starter excels in applications requiring controlled acceleration and deceleration to reduce mechanical stress and electrical inrush:

Conveyor Systems: Soft starting prevents belt slippage and product spillage, while the selectable kickstart mode helps break away high-friction loads.

Pumps and Fans: Eliminate water hammer in pipelines and reduce belt wear in fan systems. The linear speed acceleration mode provides smooth, gradual ramp-up.

Compressors: Reduce starting current spikes that can trip upstream breakers, especially in facilities with limited power capacity.

Installation and Setup Guidance

Proper installation ensures reliable operation:

Mounting: The open-style design requires installation in a suitable enclosure (IP rating per site requirements). Ensure adequate ventilation for heat dissipation.

Wiring: Connect 3-phase power to the input terminals and the motor to the output terminals. Verify the control voltage (200-230 VAC) is supplied from a separate source or transformer.

Programming: Use the 5-button keypad and LCD to select one of eight operation modes: Soft Start, Selectable Kickstart, Current Limit Start, Dual Ramp Start, Full Voltage Start, Linear Speed Acceleration, Preset Slow Speed, or Soft Stop. Configure auxiliary contacts for desired functions (Normal, Up-to-Speed, Fault, etc.).

Communication Setup: Connect DPI-compatible modules or HMI devices via the serial interface port for remote monitoring and control.

Maintenance and Reliability

To maximize service life:

Periodically inspect the controller for dust accumulation, loose connections, and signs of overheating. Clean the enclosure and heat sink as needed.

Verify that the ambient temperature and humidity remain within the controller's specified range (refer to the product manual for exact limits).

Test auxiliary contact operation during routine maintenance to ensure proper feedback to PLCs or control systems.

For safety-related applications, follow the manufacturer's safety manual for inspection and testing intervals.

Compatibility and Integration

The 150-F5NCDB integrates seamlessly into Allen-Bradley control systems. Its built-in DPI communication capability allows direct connection to PanelView HMI terminals and communication modules supporting protocols such as DeviceNet, ControlNet, EtherNet/IP, and others via the DPI network. This simplifies data exchange and remote parameter adjustment. The controller also works with standard 3-phase induction motors and can be used in new installations or as a drop-in replacement for older SMC controllers.

Selection Guide and Purchasing Advice

Before purchasing the 150-F5NCDB, verify the following:

Motor full-load current does not exceed 5.0 Amps.

Motor horsepower is 3.0 HP or less at the nominal voltage.

Line voltage is within 200-575 VAC (3-phase).

Control voltage source provides 200-230 VAC.

Enclosure type and ambient conditions match the open-style design.

For complete technical specifications, including detailed dimensions, weight, and environmental ratings, please contact BluePLC Industrial. Our team can confirm current lifecycle status, availability, and recommend compatible accessories or replacement options if needed.

Frequently Asked Questions

Q: What is the difference between the 150-F5NCDB and other SMC-Flex models?

A: The 150-F5NCDB is a 5.0 Amp, 3.0 HP version with a 200-575 VAC input range. Higher current models are available for larger motors.

Q: Can I use this soft starter with a single-phase motor?

A: No, the 150-F5NCDB is designed for 3-phase motors only.

Q: Does the controller include built-in overload protection?

A: The SMC-Flex series offers electronic overload protection as a standard feature. Consult the user manual for configuration details.

Q: What communication protocols are supported via DPI?

A: The DPI port supports various modules for protocols like DeviceNet, ControlNet, EtherNet/IP, and others. The specific module determines the protocol.

Q: Is the 150-F5NCDB still in production?

A: Please verify current lifecycle status with BluePLC Industrial before ordering. We can confirm availability and recommend alternatives if needed.
