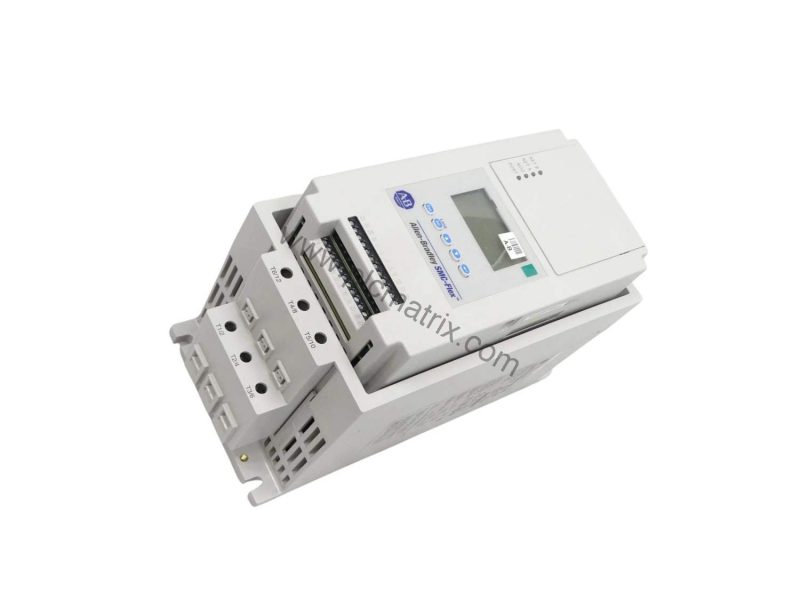

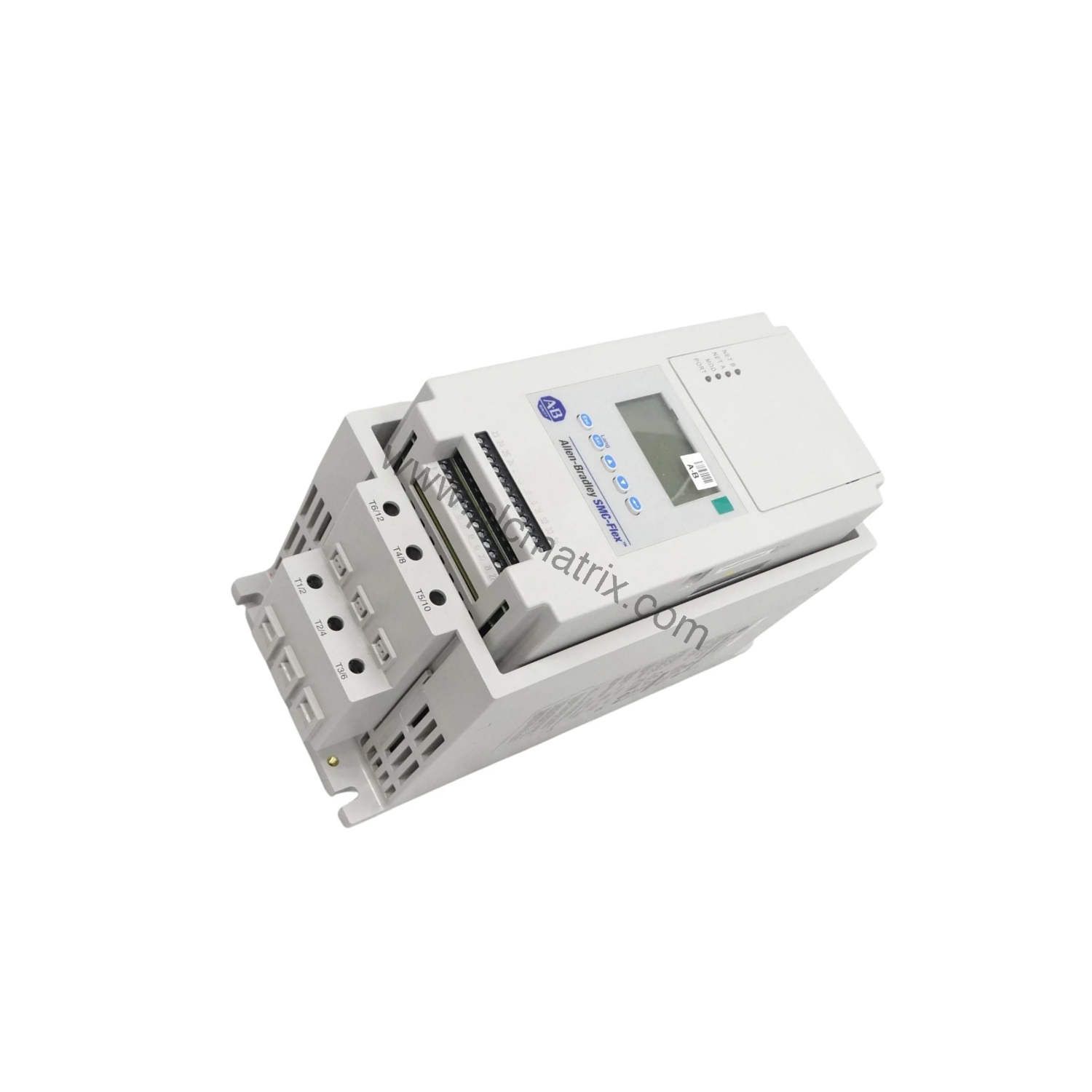

Allen-Bradley 150-F5NBR Solid State Controller, 5A, SMC-Flex Series

Product Introduction

The Allen-Bradley 150-F5NBR is a solid state controller from the SMC-Flex series, designed to start and stop AC motors with outputs up to 6000 HP. This controller supplies progressive features, optional enclosures, and a compact style. It is easy to install, modify, and maintain, making it a reliable choice for industrial motor control applications.

Technical Specifications

The 150-F5NBR operates with an input line voltage of 200-460V AC, 3-phase, at 50 and 60 Hz. Its control voltage is 24V AC/DC (for 5-480 A units), and the rated voltage is 200-460V AC. The controller rating is 5 A and 3 Hp at 460V AC. The enclosure type is open, and the unit weighs 12.63 lbs (5.73 kg).

Industry Applications

This solid state controller is suitable for controlling three-phase squirrel cage induction motors or wye-delta motors in industrial environments. Applications include conveyors, pumps, fans, and compressors where smooth starting and stopping are required. The 150-F5NBR can sustain voltages ranging from 200-208V AC, 400-460V AC, or 500-575V AC, offering flexibility across different power systems.

Installation & Setup Guidance

Install the 150-F5NBR in a clean, dry location with adequate ventilation. Ensure the input line voltage matches the 200-460V AC, 3-phase supply. Connect the control voltage of 24V AC/DC as specified. Use appropriate motor overload protection and follow all local electrical codes. The open enclosure allows for easy integration into custom panels.

Maintenance & Reliability

Regularly inspect the controller for dust buildup and ensure proper airflow. Verify that all connections remain tight and free of corrosion. The 150-F5NBR includes protective features such as electronic motor overload and undervoltage protection, which help maintain reliable operation. Periodic testing according to the manufacturer's guidelines is recommended.

Selection Guide & Purchasing Advice

Before purchasing, verify that the 150-F5NBR meets your motor's voltage and current requirements. This unit is rated for 5 A and 3 Hp at 460V AC, with a 200-460V AC input. For complete technical specifications and current availability, contact BluePLC Industrial. BluePLC Industrial is a trusted supplier of industrial automation parts, offering genuine Allen-Bradley products.
