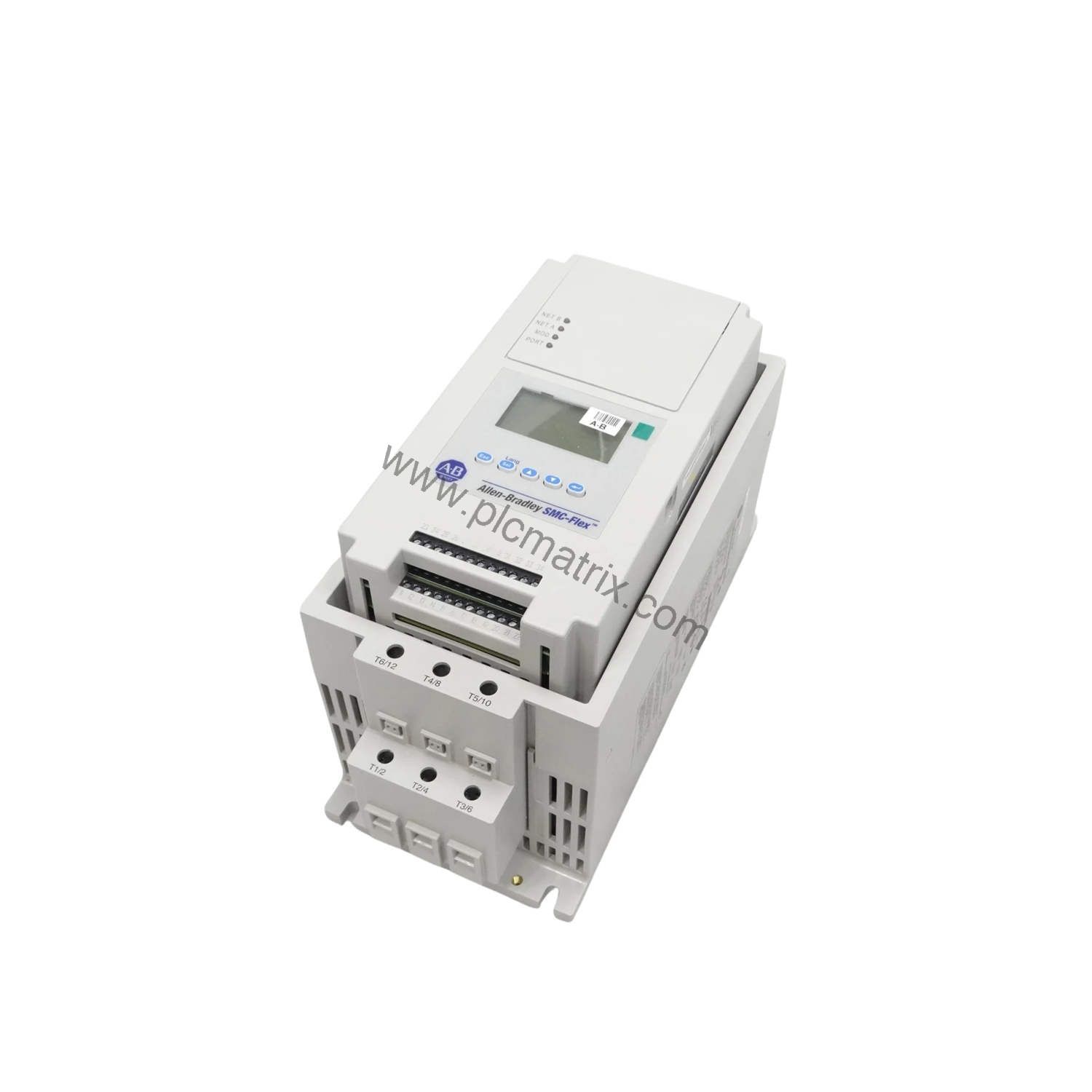

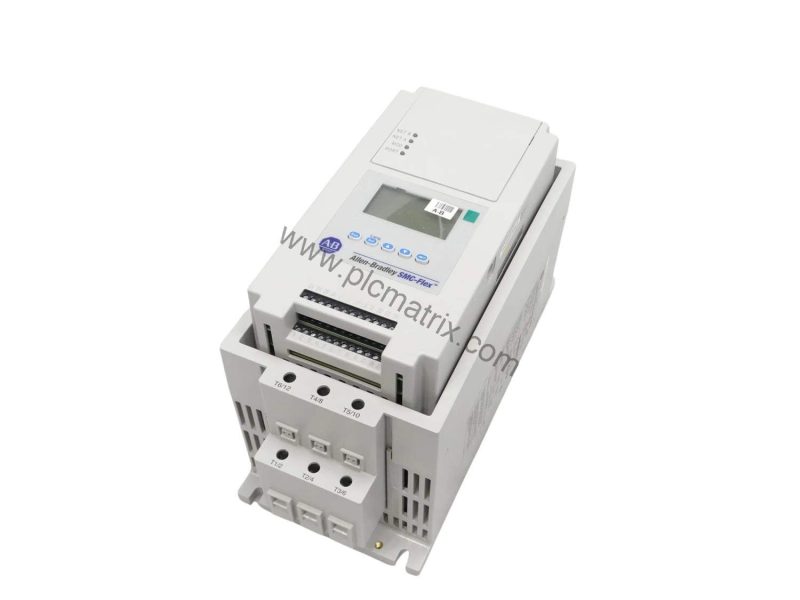

Allen-Bradley 150-F5NBDD SMC Flex Smart Motor Controller - 5A Soft Starter

Product Introduction

In the evolving landscape of industrial automation, motor control demands both precision and reliability. The Allen-Bradley 150-F5NBDD SMC Flex Smart Motor Controller represents a significant step forward in soft starting technology. Designed for applications requiring smooth acceleration and deceleration, this controller integrates smart motor braking without additional equipment, reducing mechanical stress and extending system life. With a 5 A controller rating supporting 0.5-3.0 Hp at 460V AC, it handles a wide range of low-to-medium power motors efficiently.

Technical Specifications Breakdown

The 150-F5NBDD operates with a control voltage of 100...240V AC, ensuring compatibility with global power systems. Its rated operational voltage spans 200...480V AC (-15%, +10%) per UL/CSA/NEMA for the power circuit, providing flexibility across different installations. The controller offers trip classes 10, 15, 20, and 30, allowing precise motor protection tuning. For overload protection, it uses a trip current rating of 117% of motor FLC, with integrated motor overload protection as standard. The device includes an RC snubber network for DV/DT protection and metal oxide varistors (220 J, optional) for transient protection, safeguarding sensitive electronics.

Industry Applications

This smart motor controller excels in conveyor systems, pumps, and fans where controlled start-up reduces inrush current and mechanical wear. In material handling, the SMC Flex provides adjustable braking current from 0...400% of motor full-load current, enabling rapid stops for safety and productivity. For HVAC applications, the soft start capability minimizes voltage dips and extends equipment life. The controller's status indication—stopped, starting, stopping, at speed, alarm, and fault—simplifies troubleshooting in complex production lines.

Installation & Setup Guidance

Mount the 150-F5NBDD in an open enclosure with IP20 protection per IEC for the power circuit. Use power terminals with wire sizes from 0.8...2.5 mm² (18...14 AWG) on the lower side and 2.5...95 mm² (14...3 AWG) on the line side. Tighten power terminals to 14.7 Nm (130 in-lb). For control wiring, use the clamp yoke connection with M3 screw clamps. Ensure ambient temperature stays within -5 to 50 °C (23 to 122 °F) for open operation, and maintain humidity between 5...95% noncondensing.

Maintenance & Reliability

Routine inspection focuses on the heatsink thyristor modular design, which dissipates heat efficiently. The steady state heat dissipation is 70 W including control and fan power. Check the heatsink fan rating of 20VA at 110/120V AC or 220/240V AC periodically for debris buildup. The controller's internal bypass feature reduces heat generation during run mode, enhancing long-term reliability. For PTC sensor chains, verify cold resistance remains below 1500 Ω and response resistance at 3400 Ω ± 150 Ω to ensure accurate motor thermal protection.

Selection Guide & Purchasing Advice

When selecting the 150-F5NBDD, verify your motor's full-load current and voltage compatibility. The controller supports line connected motors up to 3 Hp at 575V AC and delta connected motors up to 7.5 Hp at 575V AC. For applications requiring quick stops, the optional SMB smart motor braking control is ideal. BluePLC Industrial stocks this Allen-Bradley SMC Flex controller and can assist with configuration and accessories. Contact us to confirm lifecycle status and availability before ordering.
