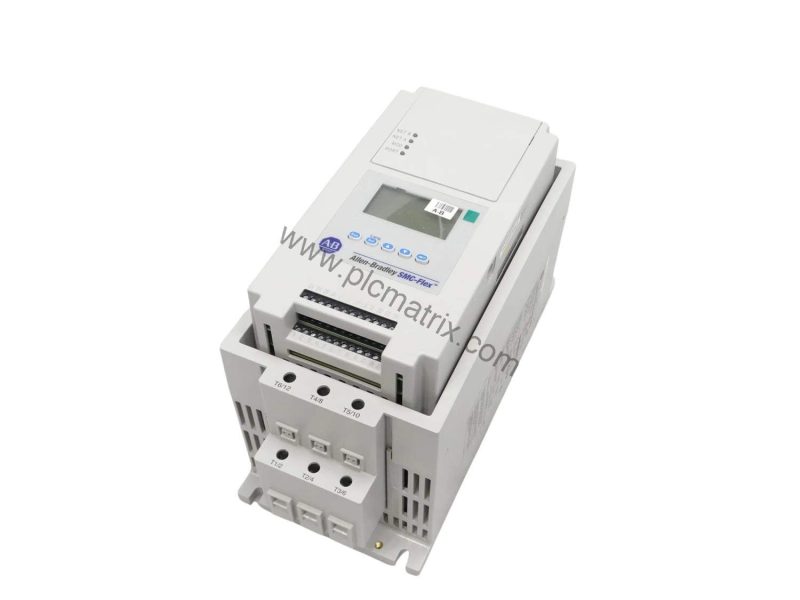

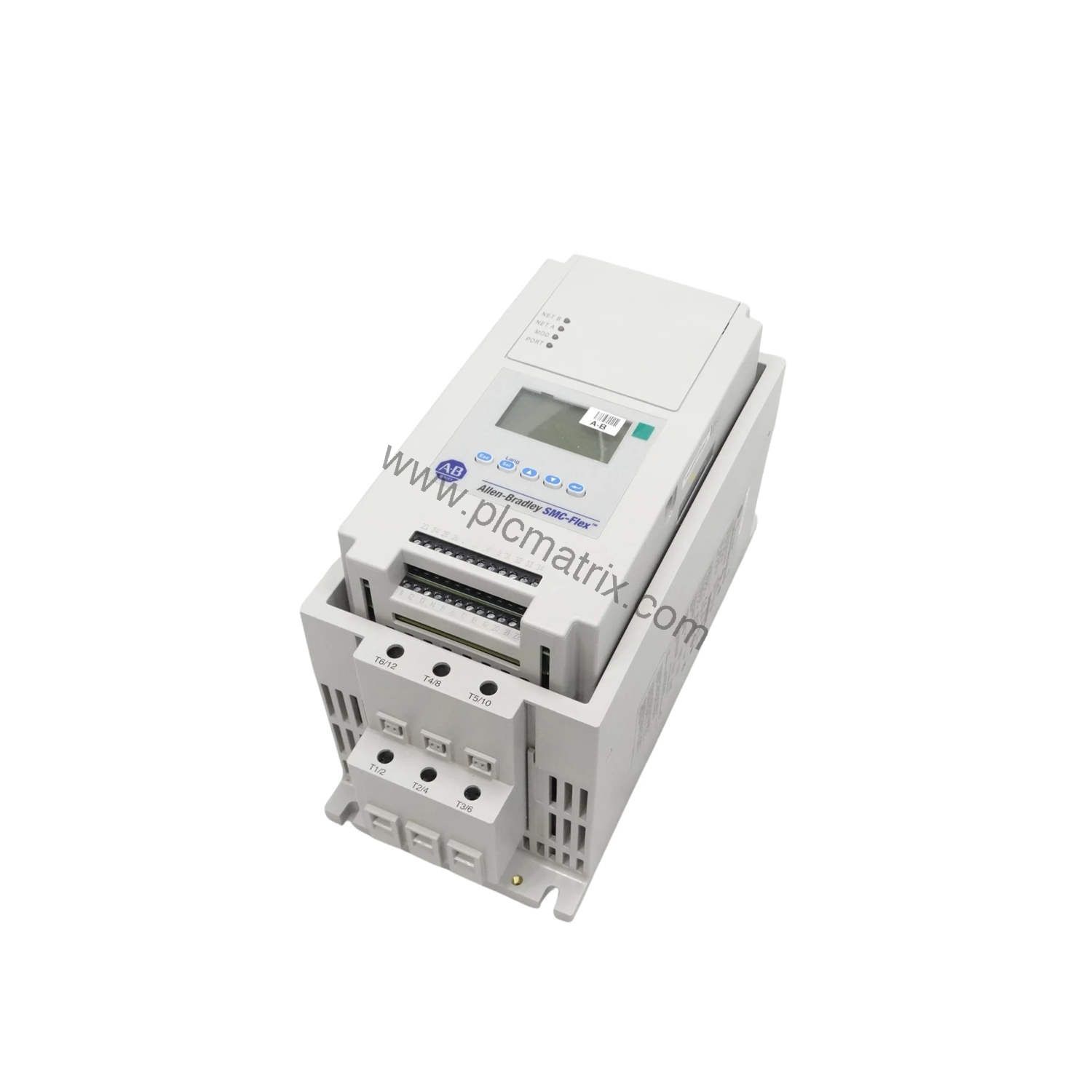

Allen-Bradley 150-F5NBDB SMC-Flex Smart Motor Controller 5A 3HP

Product Introduction

When outdated electromechanical starters cause excessive mechanical stress and energy waste, the Allen-Bradley 150-F5NBDB Smart Motor Controller provides a modern solid-state solution. This SMC-Flex soft starter combines contactor functionality with current limiting and energy-saving features, enabling smoother motor starts and stops for small three-phase motors. With a current rating of 5 Amps and 3 Horsepower at 460 Volts AC, it is designed for light-duty industrial and commercial applications where reliability and adjustability matter.

Technical Specifications Breakdown

The 150-F5NBDB operates with a line voltage range of 200 to 460 V AC, accommodating common global power systems. Its control voltage range of 100 to 240 V AC allows flexible integration with both 110 V and 220 V control signals. The controller supports three-phase loads only at a frequency of 50/60 Hz, making it suitable for most industrial motor circuits. The open construction enclosure type requires installation inside a protective cabinet to ensure safety and longevity.

Industry Applications

This smart motor controller excels in upgrading older motor starting systems in conveyors, pumps, fans, and compressors. By replacing circuit breakers, contactors, and overload relays with a single 150-F5NBDB unit, facilities reduce component count and improve system reliability. The programmable LCD screen and keypad allow operators to fine-tune starting parameters on-site, minimizing mechanical shock and electrical stress during motor acceleration.

Installation & Setup Guidance

Mount the 150-F5NBDB inside a suitable enclosure to protect its open construction from dust and moisture. Connect three-phase line power to the input terminals and the motor to the output terminals, ensuring the line voltage stays within the 200-460 V AC range. Wire the control voltage (100-240 V AC) to the appropriate terminals for external start/stop commands. Use the 2-line, 16-character retro-illuminated LCD and keypad to adjust ramp time, current limit, and other parameters. For advanced integration, an optional Bulletin 1203 communication module enables remote start/stop from a PLC.

Maintenance & Reliability

Periodically inspect the 150-F5NBDB for signs of overheating or loose connections, especially in high-cycle applications. Keep the enclosure clean and ensure adequate ventilation to maintain reliable operation. The solid-state design eliminates contact wear, reducing maintenance intervals compared to electromechanical starters. Verify control voltage stability to prevent erratic behavior. For complete technical specifications, please contact BluePLC Industrial.

Selection Guide & Purchasing Advice

Before purchasing the 150-F5NBDB, confirm your motor's full-load current does not exceed 5 Amps and that the line voltage matches your supply (200-460 V AC). Verify the control voltage source is within 100-240 V AC. If remote PLC control is needed, order the optional Bulletin 1203 communication module separately. BluePLC Industrial offers this model with fast shipping and expert support to ensure you get the right soft starter for your application.
