Allen-Bradley 150-F5NBD SMC-Flex Solid State Controller 5A

Why Do Motor Start Failures Cost You Downtime?

n

When a motor start fails, production stops, and every minute of downtime cuts into your bottom line. The Allen-Bradley 150-F5NBD SMC-Flex solid state controller addresses this challenge head-on, delivering reliable, microprocessor-controlled starting for three-phase induction motors. This unit from the SMC-Flex product line combines robust protection features with flexible operation, making it a smart choice for demanding industrial environments.

n

Product Introduction

n

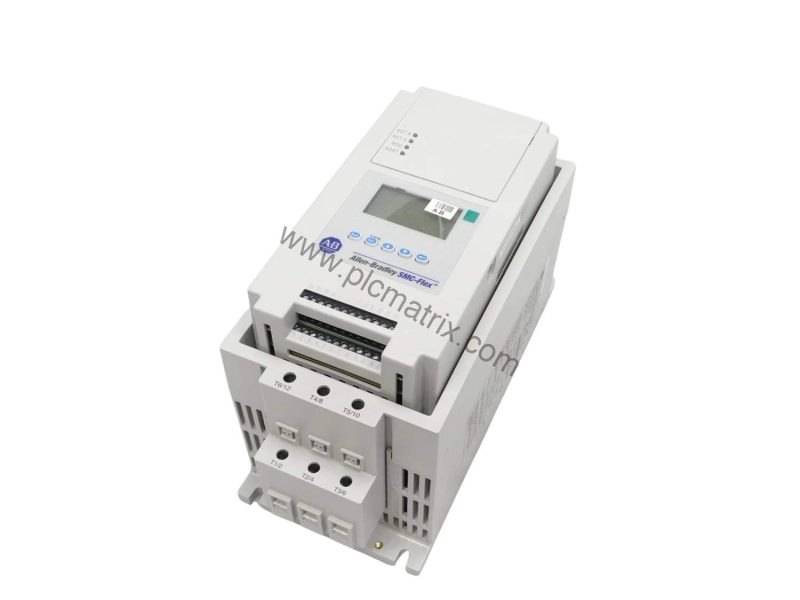

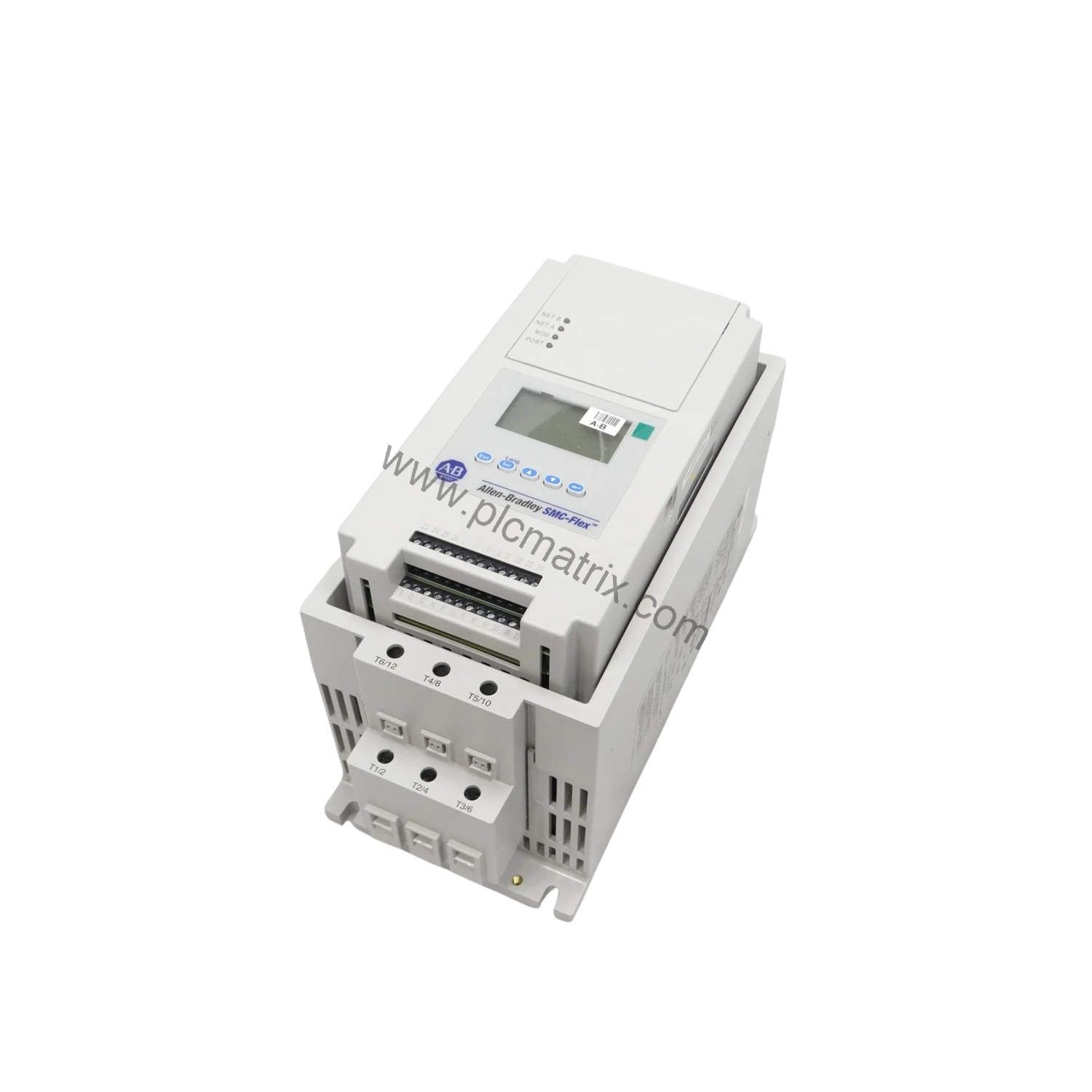

The 150-F5NBD is a solid state controller from Allen-Bradley's SMC-Flex series. It is designed for line-connected motors and comes in an open-type enclosure. With a controller rating of 5 A and 3 Hp at 460V AC, this device handles a wide range of motor sizes. The input line voltage accepts 200-460V AC, three-phase, 50 and 60 Hz, ensuring compatibility with global power systems. Built-in features include an LCD display, built-in SCR bypass/run contactor, metering, and DPI communication for easy integration.

n

Technical Specifications

n

Key specifications for the 150-F5NBD include:

n

n

Input Line Voltage: 200-460V AC, 3-phase, 50 and 60 Hz

n

Control Voltage: 100-240V AC (for 5-480 A units)

n

Rated Voltage: 200-460V AC

n

Controller Rating: 5 A, 3 Hp @ 460V AC

n

Enclosure Type: Open

n

n

These parameters ensure the controller can handle standard three-phase squirrel-cage induction motors and wye-delta motors across a broad voltage range.

n

Industry Applications

n

The 150-F5NBD excels in applications requiring smooth motor starting and stopping. It is ideal for pump control, where its start and stop pump control feature reduces surges in centrifugal pumps, extending equipment life. The controller also supports braking operations through SMB Smart Motor Braking, Accu-Stop, and Slow Speed with Braking features, making it suitable for conveyors, fans, and other high-inertia loads. Its built-in electronic motor overload protection, along with optional voltage unbalance, under voltage, under load, and stall/jam protection, safeguards your motors in harsh industrial settings.

n

Installation & Setup Guidance

n

Installing the 150-F5NBD requires attention to line and load terminal connections, which are provided as standard. Mount the open enclosure in a clean, dry location with adequate ventilation. Connect the three-phase input line voltage (200-460V AC) to the input terminals, and the motor to the load terminals. The control voltage (100-240V AC) powers the internal electronics. Programming is accomplished via the keypad system and LCD display, allowing you to configure starting modes, protection parameters, and communication settings. Always follow the manufacturer's wiring diagram and local electrical codes.

n

Maintenance & Reliability

n

To ensure long service life, periodically inspect the controller for dust accumulation, loose connections, and signs of overheating. The open enclosure design allows easy visual checks of the SCRs and bypass contactor. Verify that the input line voltage remains within the 200-460V AC range and that the control voltage is stable at 100-240V AC. Regular testing of the built-in protection features, such as electronic motor overload, helps prevent unexpected failures. For safety-rated applications, follow the manufacturer's safety manual for inspection intervals.

n

Selection Guide & Purchasing Advice

n

Before purchasing the 150-F5NBD, confirm that your motor's full-load current does not exceed 5 A and that the horsepower rating matches your load (up to 3 Hp at 460V AC). Verify the input line voltage matches your facility's supply (200-460V AC, three-phase). The open enclosure is suitable for panel mounting in a controlled environment. For complete technical specifications and current availability, contact BluePLC Industrial. Our team can help you verify lifecycle status and recommend compatible accessories if needed.

n

For complete technical specifications for the 150-F5NBD, please contact BluePLC Industrial.
