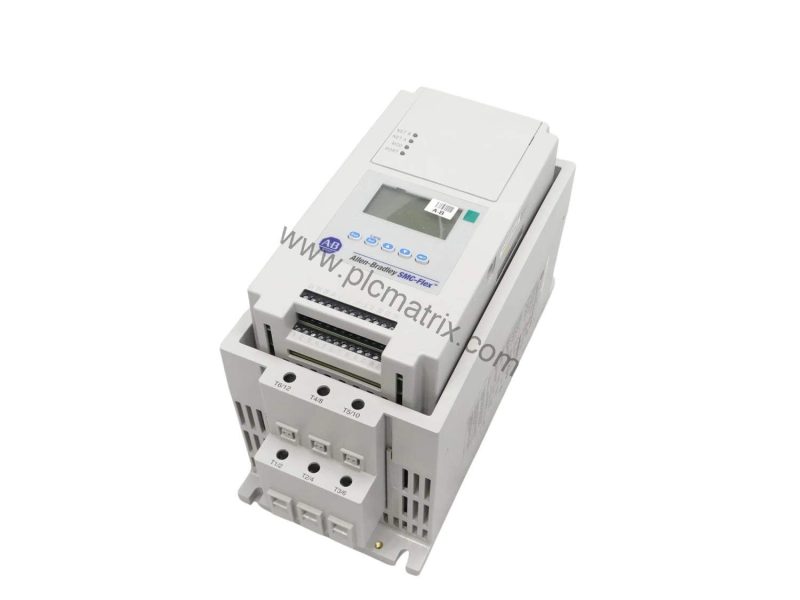

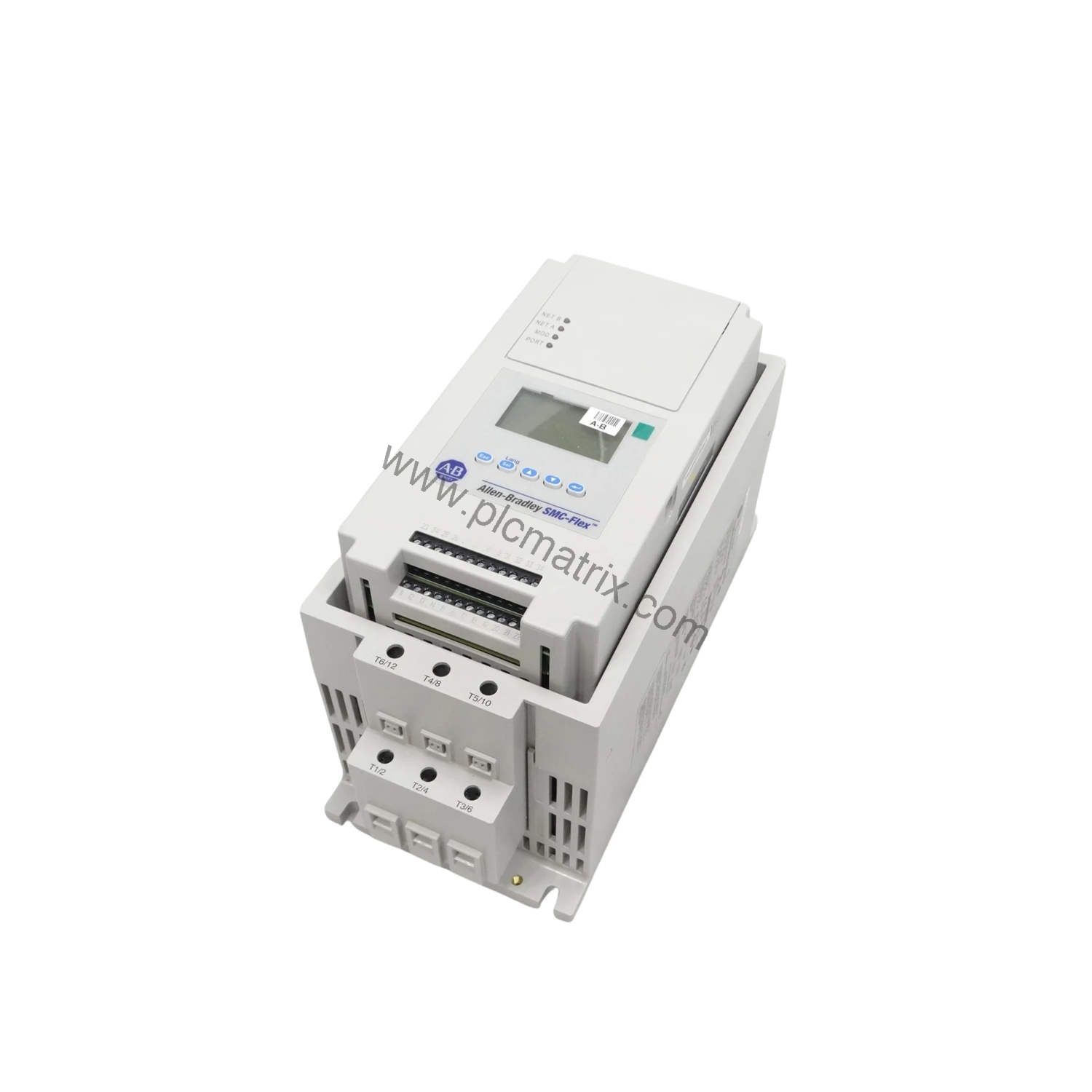

Allen-Bradley 150-F5FAD SMC-Flex Smart Motor Controller 5A, IP65

Product Introduction

When motor starting challenges cause downtime or equipment stress, the Allen-Bradley 150-F5FAD SMC-Flex Smart Motor Controller provides a robust solution. This solid-state controller, part of the SMC-Flex product line, delivers microcomputer-based starting for three-phase induction motors. Its IP65 (Type 4/12) enclosure protects against dust and water jets, making it suitable for harsh environments. With a controller rating of 5 Amps and 3 Horsepower at 460 Volts AC, it handles moderate loads efficiently. The input line voltage is 230 Volts AC, three-phase, at 50 or 60 Hz, ensuring compatibility with global power systems.

Technical Specifications Breakdown

The 150-F5FAD features a control voltage of 100-240 Volts AC (for 5-480 A units), providing flexibility for various control systems. Its dielectric withstand rating of 2,200 Volts AC ensures robust insulation against electrical surges. The short-circuit rating of 30 KA guarantees safety under fault conditions. DV/DT protection with an RC network minimizes voltage spikes, extending motor life. The controller includes 4 programmable relay outputs with 1 NO/NC contact configured for normal, up to speed, and external bypass operations. These specs translate to reliable performance in demanding industrial settings.

Industry Applications

In conveyor systems, the 150-F5FAD reduces mechanical shock during startup, preventing belt damage and product spillage. For pump applications, its soft stop mode eliminates water hammer, protecting pipes and valves. In HVAC systems, the dual ramp feature allows tailored acceleration for different load conditions, improving energy efficiency. The controller's 7 operating modes—soft start, current limit start, dual ramp, full voltage, linear speed acceleration, preset slow speed, and soft stop—address diverse motor control needs across industries.

Installation & Setup Guidance

Mount the 150-F5FAD securely in a clean, dry location within its IP65 enclosure. Ensure adequate ventilation around the unit to maintain operational temperature range (23 to 122 degrees Fahrenheit). Connect input power at 230V AC, three-phase, 50/60 Hz, observing proper phase rotation. Wire the motor to the controller output terminals, respecting current ratings. Use the front-panel keypad and 3-line, 16-character LCD for programming. Set parameters like ramp time and current limit according to motor nameplate data. Verify all connections before powering up.

Maintenance & Reliability

Regularly inspect the 150-F5FAD enclosure for signs of moisture or contamination. Check LED indicators for fault codes—power loss, line fault, voltage unbalance, under voltage, overvoltage, control temperature, stall, jam, under load, and communication fault protections are built in. Clean the exterior with a dry cloth; avoid solvents. The controller withstands 15G operational shock for up to 11 milliseconds and 1G vibration, ensuring reliability in tough conditions. Its storage range is 23 to 104 degrees Fahrenheit. For complete technical specifications, please contact BluePLC Industrial.

Compatibility & Integration

The 150-F5FAD includes a built-in DPI communication interface, enabling connections to DeviceNet, ControlNet, Ethernet, RS-485, and Profibus networks. This allows seamless integration with Allen-Bradley PLCs and other automation systems. The controller's 4 programmable relays interface with external devices like contactors or alarms. It is CE, UL, CCC, and cUL-us certified, meeting global standards. Verify network compatibility with your existing system before ordering.

Selection Guide & Purchasing Advice

Before purchasing the 150-F5FAD, confirm your motor's full-load current does not exceed 5 Amps and horsepower rating is within 3 Hp at 460V AC. Ensure your supply voltage matches 230V AC, three-phase, 50/60 Hz. The IP65 enclosure suits washdown or dusty environments. For replacement of older SMC controllers, check mounting dimensions and wiring diagrams. BluePLC Industrial offers this model with fast shipping and expert support. Please verify current lifecycle status and availability with BluePLC Industrial before ordering.
