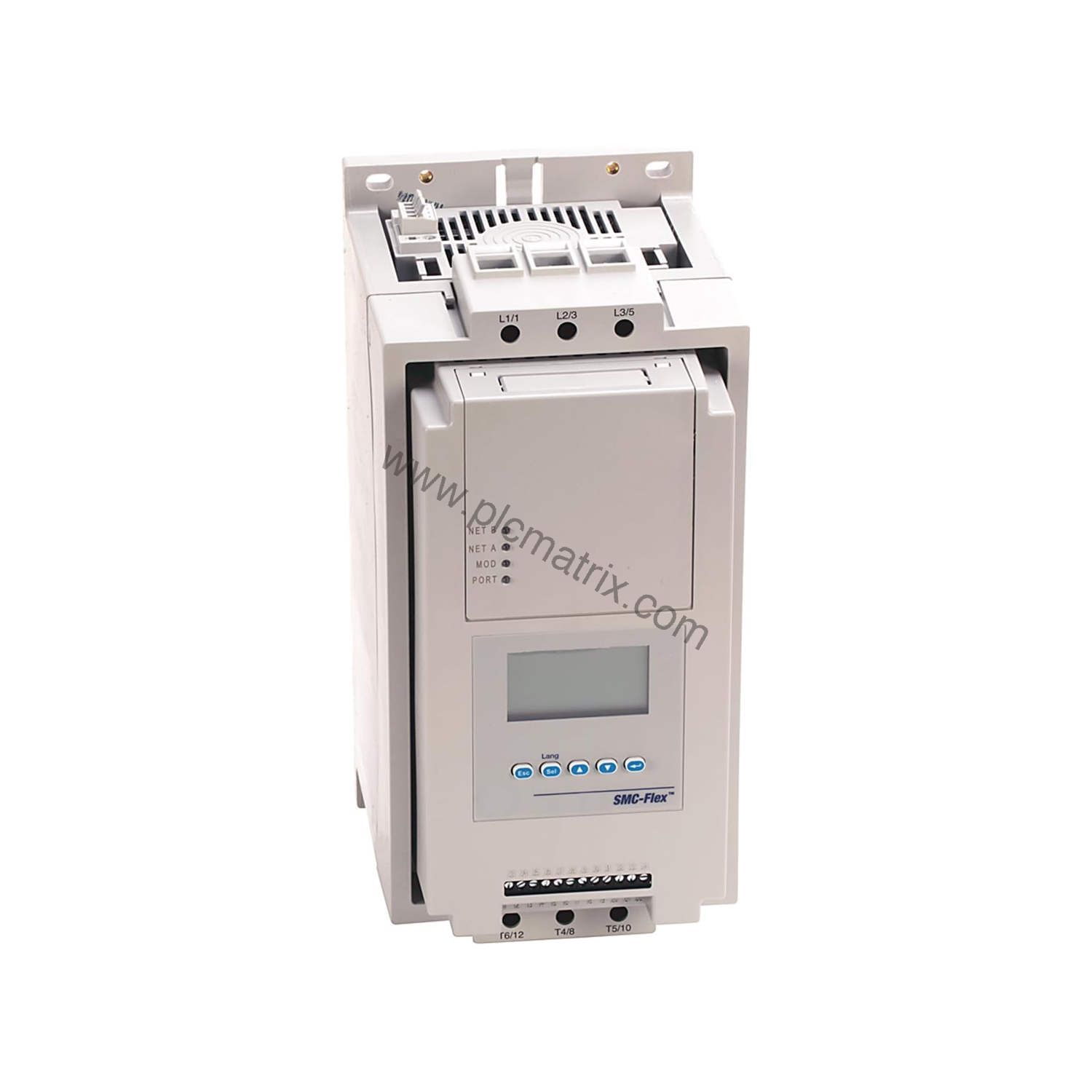

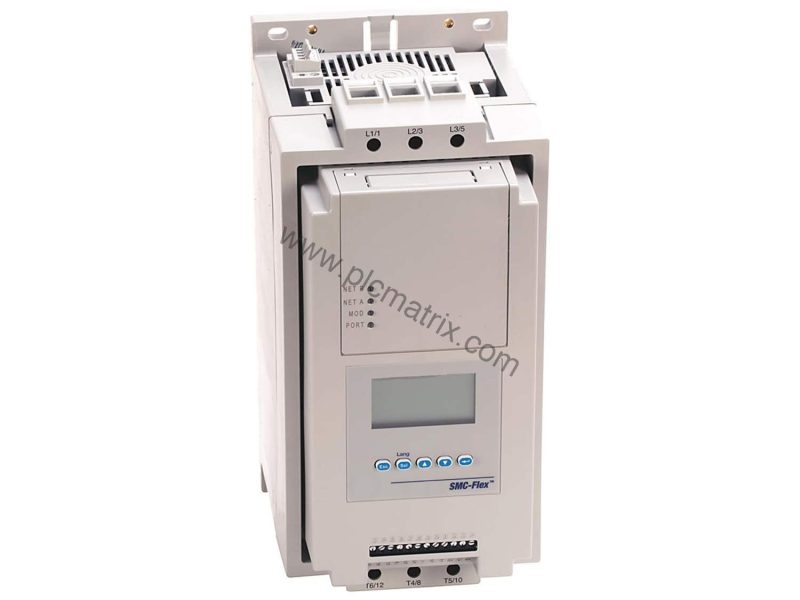

Allen-Bradley 150-F480NCD SMC Flex Soft Starter: 480A, 400HP

Product Overview

When a motor startup causes voltage dips or mechanical stress, the Allen-Bradley 150-F480NCD SMC Flex soft starter provides a controlled, reliable solution. This solid-state controller is part of the Bulletin 150 SMC Flex family, designed for standard three-phase squirrel-cage induction motors and wye-delta or 6-lead motors. With a controller rating of 480 A and 400 Hp at 460V AC, it handles demanding industrial applications while protecting equipment from electrical and mechanical wear.

Technical Specifications Breakdown

The 150-F480NCD operates on an input line voltage of 200-575V AC, three-phase, at 50 and 60 Hz. This wide voltage range makes it suitable for global installations. The control voltage is 100-240V AC for units rated 5-480 A, simplifying integration with standard control systems. The open enclosure type allows for flexible mounting in cabinets, while the unit supports a motor FLA range of 277 to 831 A for proper setup.

Industry Applications

In conveyor systems, the 150-F480NCD's soft start and soft stop modes reduce belt jerk and product spillage, extending mechanical life. For pumps, the current limit start prevents pressure surges that can damage pipes and valves. The dual ramp feature allows two different start profiles, ideal for machines that operate under varying load conditions. These capabilities directly reduce downtime and maintenance costs, aligning with a cost-benefit perspective.

Installation & Setup Guidance

Mount the 150-F480NCD in a clean, dry enclosure with adequate ventilation. Ensure the motor FLA falls within 277 and 831 A. Connect three-phase power to the input terminals and the motor to the output. Use the front keypad and three-line, 16-character backlit LCD display to configure one of seven operating modes: Soft Start, Linear Speed Acceleration, Current Limit Start, Soft Stop, Dual Ramp, Full Voltage, or Preset Slow Speed. For two- or three-wire control, follow the wiring diagram in the manual.

Maintenance & Reliability

From a maintenance engineer's perspective, the 150-F480NCD simplifies service with its built-in diagnostics. The display shows fault and error codes for quick troubleshooting. Regularly inspect the unit for dust accumulation and ensure the enclosure remains clean. The controller protects against overvoltage, undervoltage, overload, phase reversal, and other common issues, reducing unexpected failures. With proper setup, this soft starter delivers long-term reliability and lower total cost of ownership.

Selection Guide & Purchasing Advice

Before purchasing the 150-F480NCD, verify your motor's full load amps and voltage match the controller's rating. This unit is non-combination type, so you may need separate branch circuit protection. For DPI communication capability, order the optional module separately. BluePLC Industrial stocks this Allen-Bradley soft starter and can confirm current availability. For complete technical specifications, please contact BluePLC Industrial.
