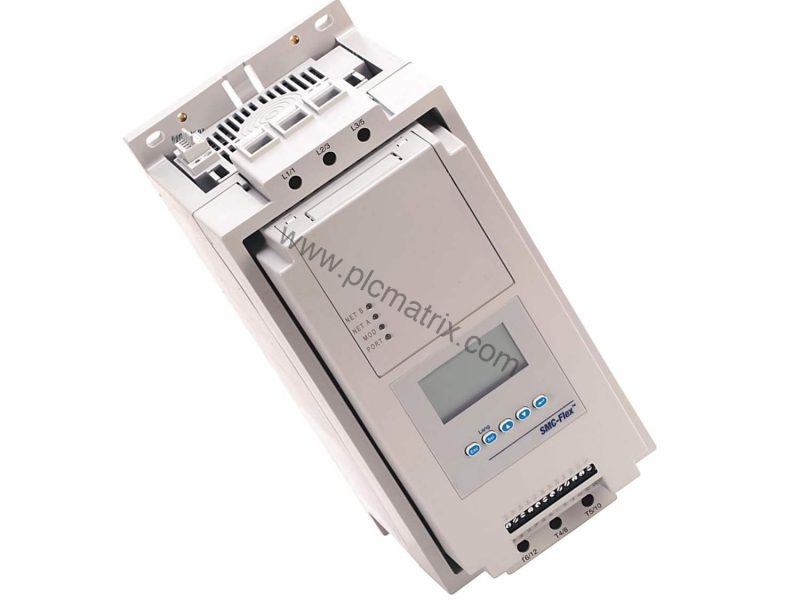

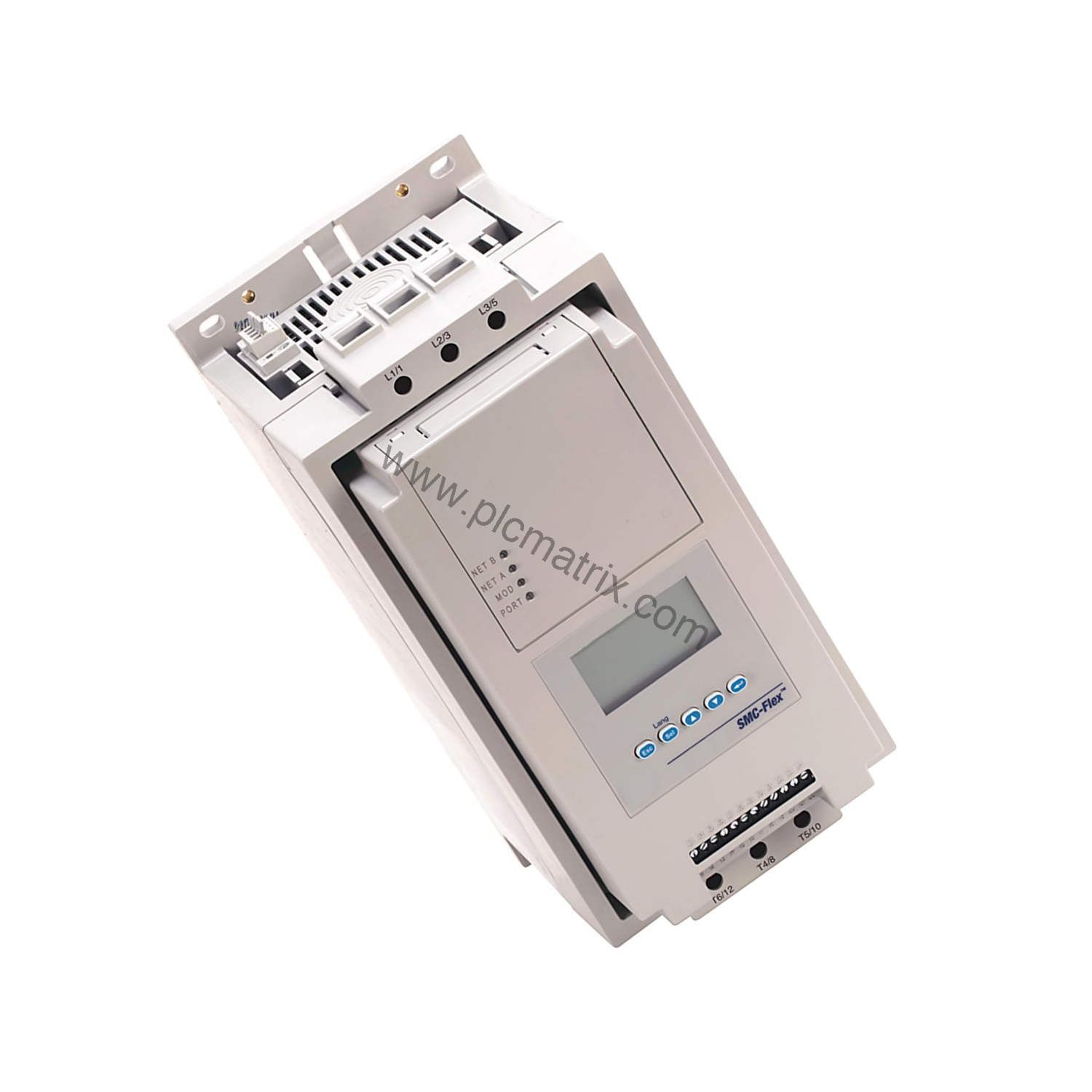

Allen-Bradley 150-F480NBD SMC Flex Smart Motor Controller 480A

Product Introduction

When industrial motor starting causes voltage sags, mechanical stress, or energy waste, the Allen-Bradley 150-F480NBD SMC Flex Smart Motor Controller provides a reliable solution. This solid-state device uses a built-in microprocessor to manage AC motor operation efficiently. It belongs to the SMC Flex family and handles demanding applications with a maximum continuous output current of 480 Amperes and output power of 400 HP at 460VAC rated voltage. The open type enclosure suits installations where additional cabinet protection is available.

Technical Specifications Breakdown

The 150-F480NBD operates with a line voltage of 200…460V AC, 3-Phase, 50 and 60 Hz. This wide voltage range allows integration into various global power systems without additional transformers. The control voltage is 100…240V AC (5…480 A units), simplifying connection to standard control circuits. The controller delivers 480 Amps maximum continuous output current and 400 Horsepower at 460 Volts AC, making it suitable for large motors in heavy industries.

Industry Applications

In pumping stations, the 150-F480NBD reduces water hammer and pipe stress through Pump Start and Pump Stop modes. For conveyor systems, Soft Start and Current Limit Start minimize mechanical shock and belt wear. In HVAC installations, the controller supports energy-efficient motor management with metering functions such as amps, volts, kW, kWh, power factor, and motor thermal capacity usage. These features help facility managers reduce energy consumption and extend equipment life.

Installation & Setup Guidance

Mount the 150-F480NBD in a clean, dry location with adequate ventilation. Connect the three-phase line voltage (200…460V AC, 50 or 60 Hz) to the input terminals. Wire the control voltage (100…240V AC) to the control circuit terminals. The controller provides four fully programmable auxiliary contacts (N.O./N.C.) for normal, up-to-speed, fault, alarm, network, or external bypass signaling. Use the two DPI ports to attach an optional Human Interface Module (HIM) or communication module for network integration.

Maintenance & Reliability

Periodically inspect the controller for dust accumulation and ensure the enclosure remains free of debris. Verify that the line voltage and control voltage stay within the specified ranges (200…460V AC and 100…240V AC respectively). The built-in diagnostics monitor power loss, line faults, voltage unbalance, phase reversal, overvoltage, undervoltage, controller temperature, stall, jam, open gate, overload, underload, and communication faults. These protections reduce unplanned downtime and help maintain reliable motor operation.

Compatibility & Integration

The 150-F480NBD supports installation of communication modules via two DPI ports. Supported networks include DF1, Profibus DP, ControlNet, Interbus, MODBUS TCP, DeviceNet, EtherNet/IP, HVAC communication adapter, and ControlNet Fiber media adapter. This flexibility allows the controller to exchange data with PLCs, SCADA systems, and other automation devices. The controller also accepts Hand-Held or Door mounted HIM units for local monitoring and parameter adjustment.

Selection Guide & Purchasing Advice

Before ordering the Allen-Bradley 150-F480NBD, verify that your facility’s supply matches the line voltage of 200…460V AC, 3-Phase, 50 or 60 Hz. Confirm that the control voltage available is 100…240V AC. Ensure the enclosure type (open) fits your installation environment. For complete technical specifications, please contact BluePLC Industrial. Our team can help confirm compatibility with your existing system and recommend optional accessories such as HIM modules or communication adapters.
