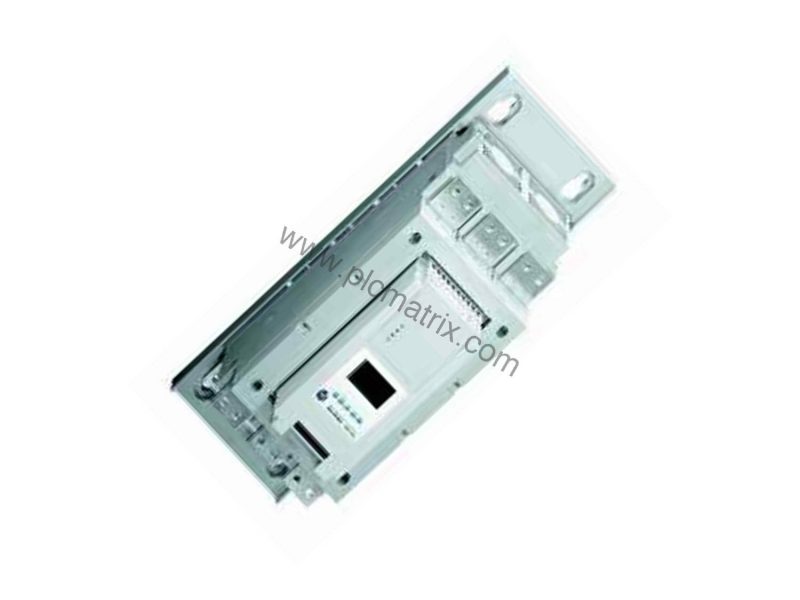

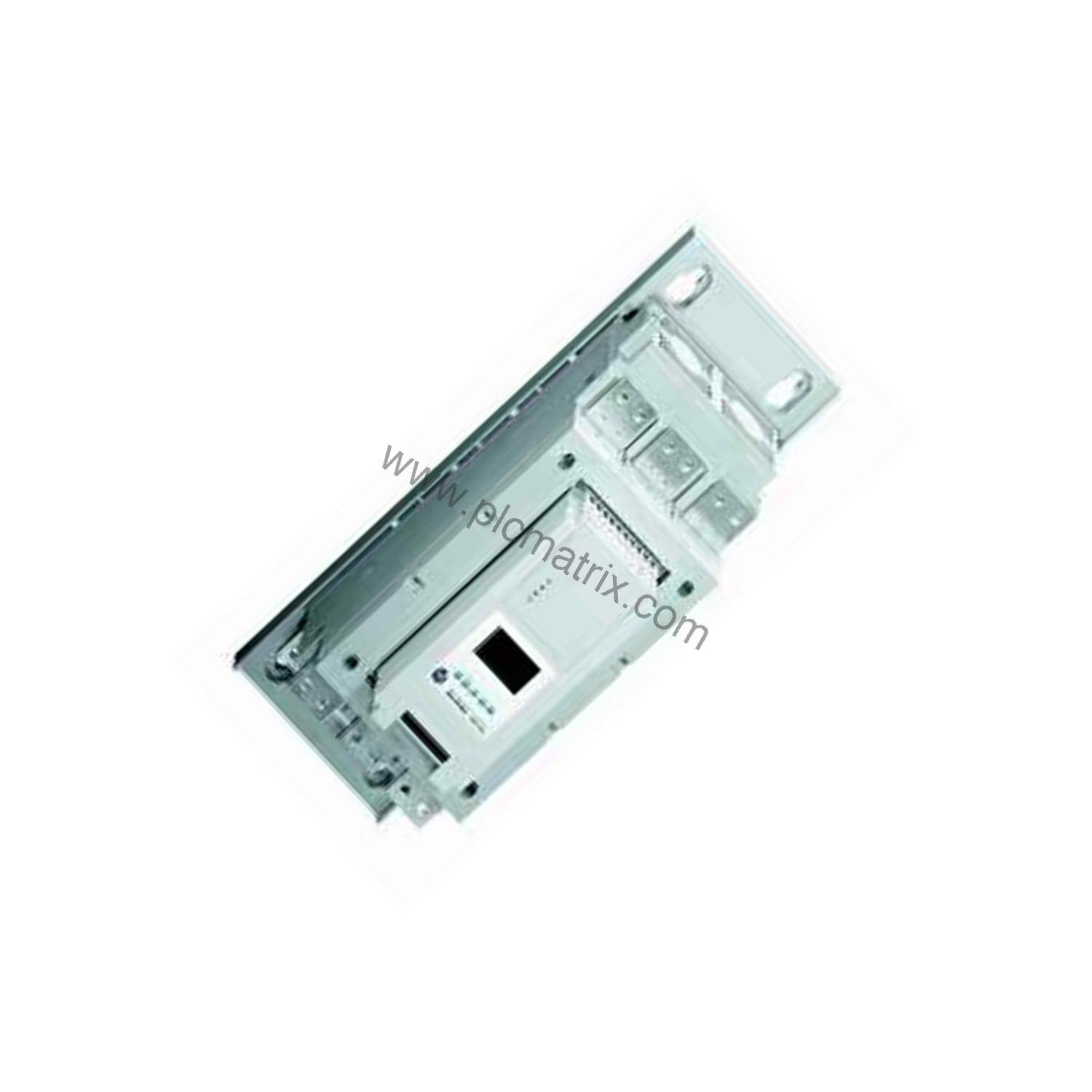

Allen-Bradley 150-F43NCR SMC-Flex Solid State Controller 43A

Product Introduction

When industrial motor starting demands reliability and efficiency, the Allen-Bradley 150-F43NCR SMC-Flex Solid State Controller delivers consistent performance. Part of the SMC-Flex family, this controller features an open enclosure and handles demanding applications with a controller rating of 43 A and 30 Hp at 460V AC. Its robust design supports 200-575V AC, 3-phase input lines at both 50 and 60 Hz, making it a versatile choice for global installations.

Technical Specifications

The 150-F43NCR operates on a 200-575V AC, 3-phase input line at both 50 and 60 Hz, ensuring compatibility with diverse power systems. It provides a control voltage of 24V AC/DC for units rated 5-480 A, simplifying integration with standard control circuits. The controller rating of 43 A and 30 Hp at 460V AC directly translates to efficient motor starting with reduced mechanical stress, lowering maintenance costs over time. The rated voltage of 500/575V AC further confirms its suitability for high-voltage industrial environments.

Industry Applications

This solid state controller excels in applications such as conveyor systems, pumps, and compressors where controlled acceleration and deceleration reduce wear on mechanical components. For example, in a material handling facility, the 150-F43NCR's ability to handle 30 Hp at 460V AC minimizes inrush current, cutting energy costs and extending motor life. Its wide input voltage range also makes it ideal for plants operating on different regional power standards, reducing the need for multiple controller variants.

Installation & Setup Guidance

When installing the 150-F43NCR, ensure the input line voltage matches the 200-575V AC, 3-phase specification and that the control voltage is set to 24V AC/DC. Mount the open enclosure in a clean, dry location with adequate ventilation to prevent overheating. Verify that the controller rating of 43 A aligns with the motor's full-load current. Proper wiring and grounding per local codes will maximize reliability and safety.

Maintenance & Reliability

Regular inspection of the 150-F43NCR's enclosure and connections helps maintain long-term performance. Check for dust accumulation on the heatsink and ensure the control voltage remains stable at 24V AC/DC. By reducing mechanical shock during starts, this solid state controller extends the life of connected equipment, translating to lower total cost of ownership. Follow the manufacturer's guidelines for periodic testing to ensure continued safe operation.

Selection Guide & Purchasing Advice

Before purchasing the 150-F43NCR, verify that your application requires a 43 A controller with 30 Hp at 460V AC and that your facility's power supply matches the 200-575V AC, 3-phase input. The open enclosure design suits panel-mounted installations. For complete technical specifications and current availability, please contact BluePLC Industrial. Our team can help confirm compatibility with your existing system and provide guidance on any required accessories.
