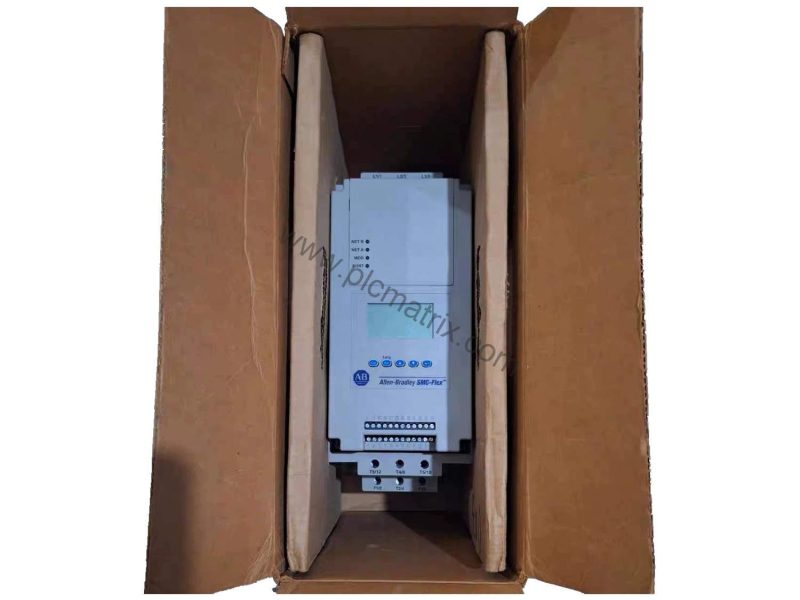

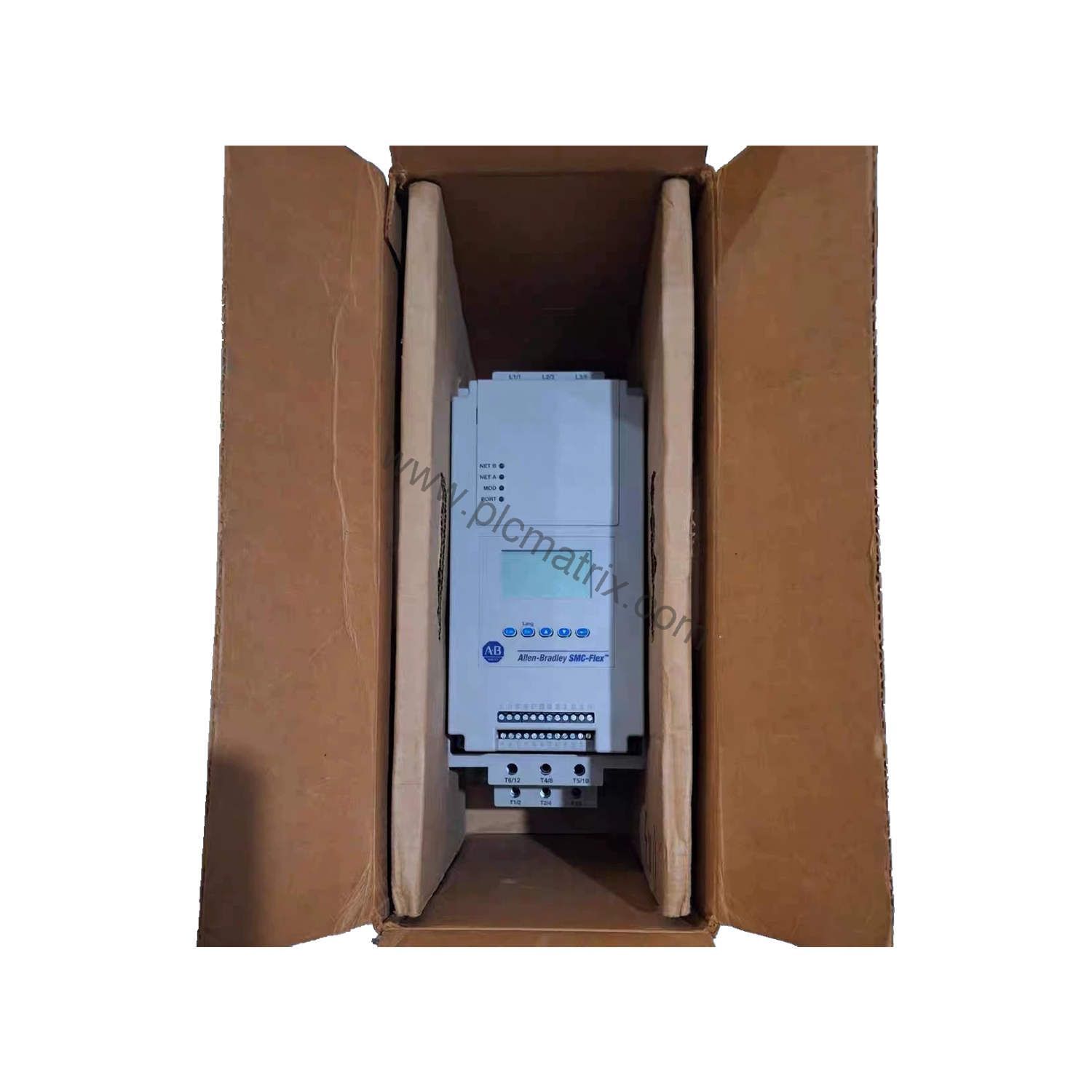

Allen-Bradley 150-F43NBRB SMC Flex Smart Motor Controller – 43A Soft Starter

Product Introduction

When a water treatment facility experiences pressure surges that damage piping and valves, the Allen-Bradley 150-F43NBRB SMC Flex Smart Motor Controller provides a solution. This soft starter delivers controlled acceleration and deceleration, reducing mechanical stress and extending equipment life. Rated at 43 A and supporting 7.5-30.0 Hp at 460V AC, it is designed for three-phase motors in industrial environments. The 150-F43NBRB includes pump control functionality, making it ideal for applications requiring smooth fluid handling.

Technical Specifications Breakdown

The 150-F43NBRB operates with a control voltage of 24V AC/DC, simplifying integration with existing control systems. Its rated operational voltage ranges from 200 to 480V AC (-15%, +10%) per UL/CSA/NEMA, ensuring compatibility with common industrial power supplies. The controller offers trip classes 10, 15, 20, and 30, allowing precise overload protection based on motor characteristics. The trip current rating is 117% of motor full-load current, providing reliable protection without nuisance tripping. For power circuit protection, it includes an RC snubber network for DV/DT protection and metal oxide varistors (220 J) for transient suppression. The dielectric withstand is 2500V per IEC, and the rated impulse voltage is 6000V per IEC, ensuring robust electrical isolation.

Industry Applications

In pumping stations, the 150-F43NBRB’s pump control feature minimizes water hammer by gradually ramping motor speed up and down. This reduces maintenance costs and extends the life of valves and pipes. In conveyor systems, the soft start capability prevents belt slippage and product spillage during startup. The controller’s internal bypass function improves energy efficiency by eliminating power dissipation after the motor reaches full speed. With an operating temperature range of -5 to 50 °C (23 to 122 °F) and IP20 protection, it suits indoor industrial environments like manufacturing plants and HVAC systems.

Installation & Setup Guidance

Mount the 150-F43NBRB in an open-type enclosure with adequate airflow. Use the specified cable sizes: lower terminals accept 0.8 to 2.5 mm² (18-14 AWG), while upper line terminals accept 2.5 to 95 mm² (14-3 AWG). Tighten power terminals to 14.7 Nm (130 in-lb). Connect control wiring to the auxiliary contacts (19/20, 29/30, 31/32, 33/34) using M3 screw clamps. Ensure the control circuit OFF-state current is below 10 mA AC or 3 mA DC. For PTC motor thermal protection, connect up to six sensors, with a cold resistance maximum of 1500 Ω. Verify the supply voltage matches the rated control supply voltage of 24V AC/DC.

Maintenance & Reliability

Inspect the heatsink and fan assembly periodically for dust buildup, as the heatsink fan rating is 20VA at 110/120V AC or 220/240V AC. Check the RC snubber network and varistors for signs of damage. The controller’s steady-state heat dissipation is 81 W, so ensure adequate ventilation. Operate within the specified altitude of 2000 m and humidity range of 5-95% (noncondensing). The SMC Flex design includes a thermoset and thermoplastic molding construction with plated brass, copper, or painted steel parts for corrosion resistance. Regular verification of trip settings and auxiliary contact operation ensures long-term reliability.

Selection Guide & Purchasing Advice

Before purchasing the 150-F43NBRB, verify the motor full-load current and supply voltage. The controller supports line-connected motors up to 40 Hp at 575V AC and delta-connected motors up to 60 Hp at 575V AC. Select appropriate short-circuit protection devices: standard fuses, circuit breakers, or high-capacity time-delay Class CC/J/L fuses. For control power, the recommended Allen-Bradley power supply is the 1606-XLP50E at 24V DC. Contact BluePLC Industrial for current lifecycle status and availability. Our team can help match the controller to your specific application requirements.
