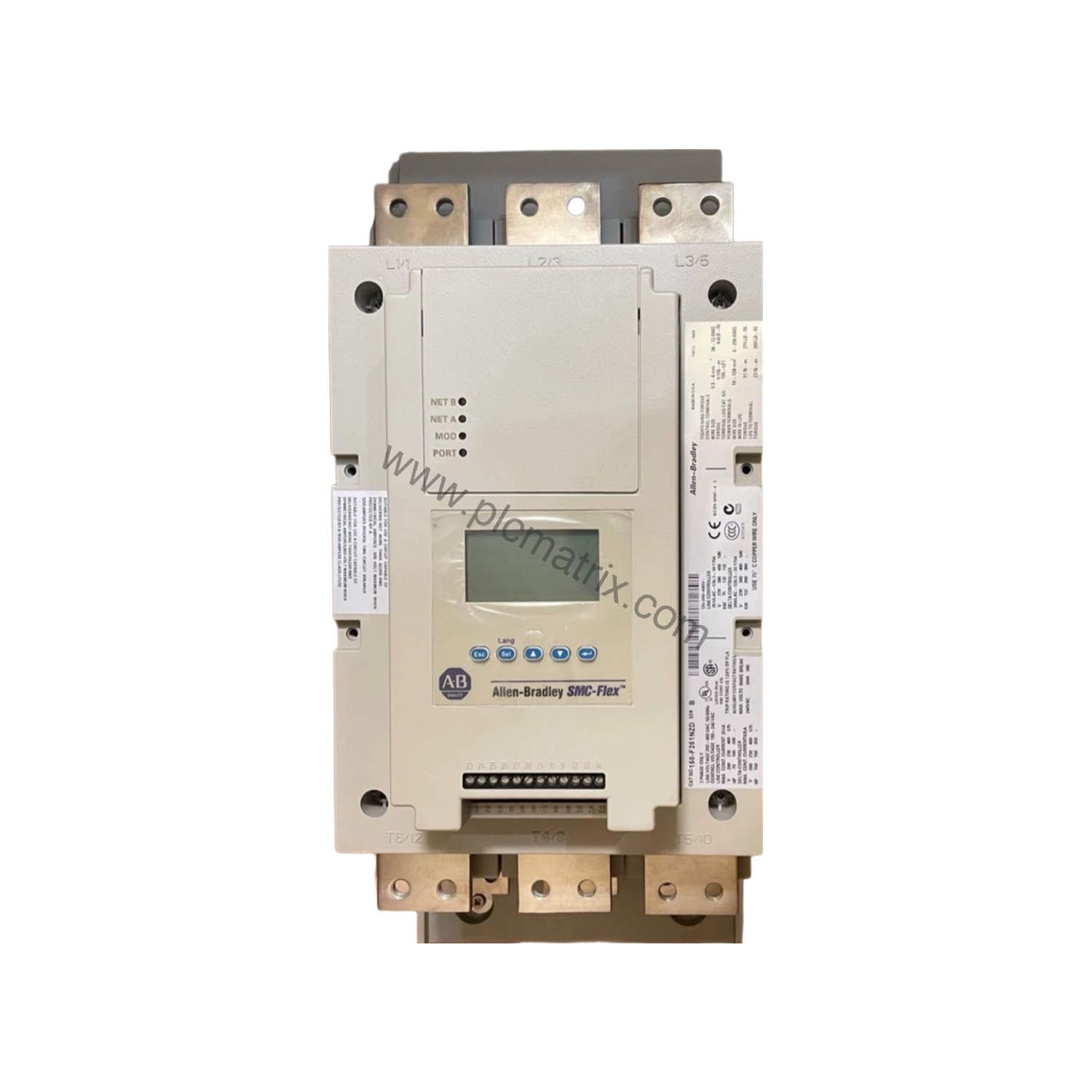

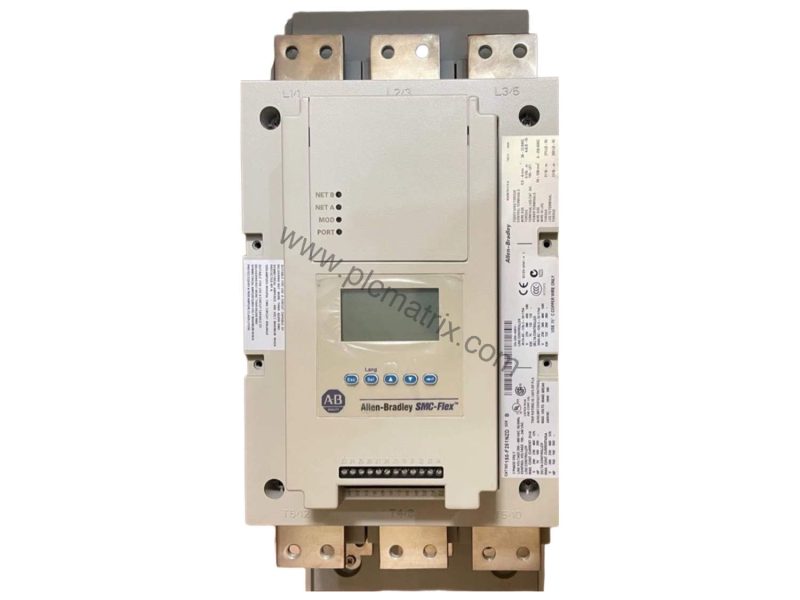

Allen-Bradley 150-F361NZD SMC-Flex Solid State Controller 361A

Product Overview

When your facility demands precise, reliable control over induction motors, the Allen-Bradley 150-F361NZD SMC-Flex Solid State Controller stands ready. This unit combines solid-state switching with robust protection features, ensuring your motors operate smoothly under varying loads. As part of the trusted SMC-Flex series, the 150-F361NZD offers a flexible, programmable solution that reduces installation complexity and lowers overall production costs.

Technical Specifications

The 150-F361NZD is rated for 361 Amps and delivers 300 Horsepower at 460V AC. It accepts an input line voltage of 230-690V AC, three-phase, at both 50 and 60 Hz. The control voltage is 100-240V AC (for 5-480 A units). The open enclosure type simplifies mounting and integration into existing systems. Weighing 32.00 lbs (14.51 kg), this controller is compact yet powerful for its class.

Industry Applications

This solid-state controller excels in applications such as conveyor systems, pumps, fans, and compressors where soft starting and controlled acceleration reduce mechanical stress. In a typical manufacturing line, the 150-F361NZD helps minimize inrush current, protecting both the motor and the electrical network. Its adjustable output voltage settings allow tailoring to specific motor requirements, making it a versatile choice for facilities upgrading from older electromechanical starters.

Installation & Setup Guidance

Mount the 150-F361NZD in a clean, dry location within its open enclosure. Ensure adequate clearance for airflow and cable routing. Connect three-phase power to the input terminals per the wiring diagram provided in the manual. Set the control voltage to 100-240V AC as needed. Program the onboard controls for desired acceleration and deceleration profiles without requiring external devices, streamlining commissioning.

Maintenance & Reliability

Regularly inspect the controller for dust accumulation and loose connections. Verify that the input line voltage remains within the 230-690V AC range and that the ambient temperature does not exceed the unit's rating. The solid-state design inherently reduces wear compared to contactor-based starters, extending service life and lowering maintenance costs. Follow the manufacturer's guidelines for periodic testing to ensure continued reliable operation.

Selection Guide & Purchasing Advice

Before ordering the 150-F361NZD, confirm that your motor's full-load current does not exceed 361 Amps and that your supply voltage matches the 230-690V AC three-phase input. Verify the control voltage requirement (100-240V AC) is available. For current lifecycle status and availability, contact BluePLC Industrial. Our team can help you select the right SMC-Flex controller for your application and ensure fast delivery.
