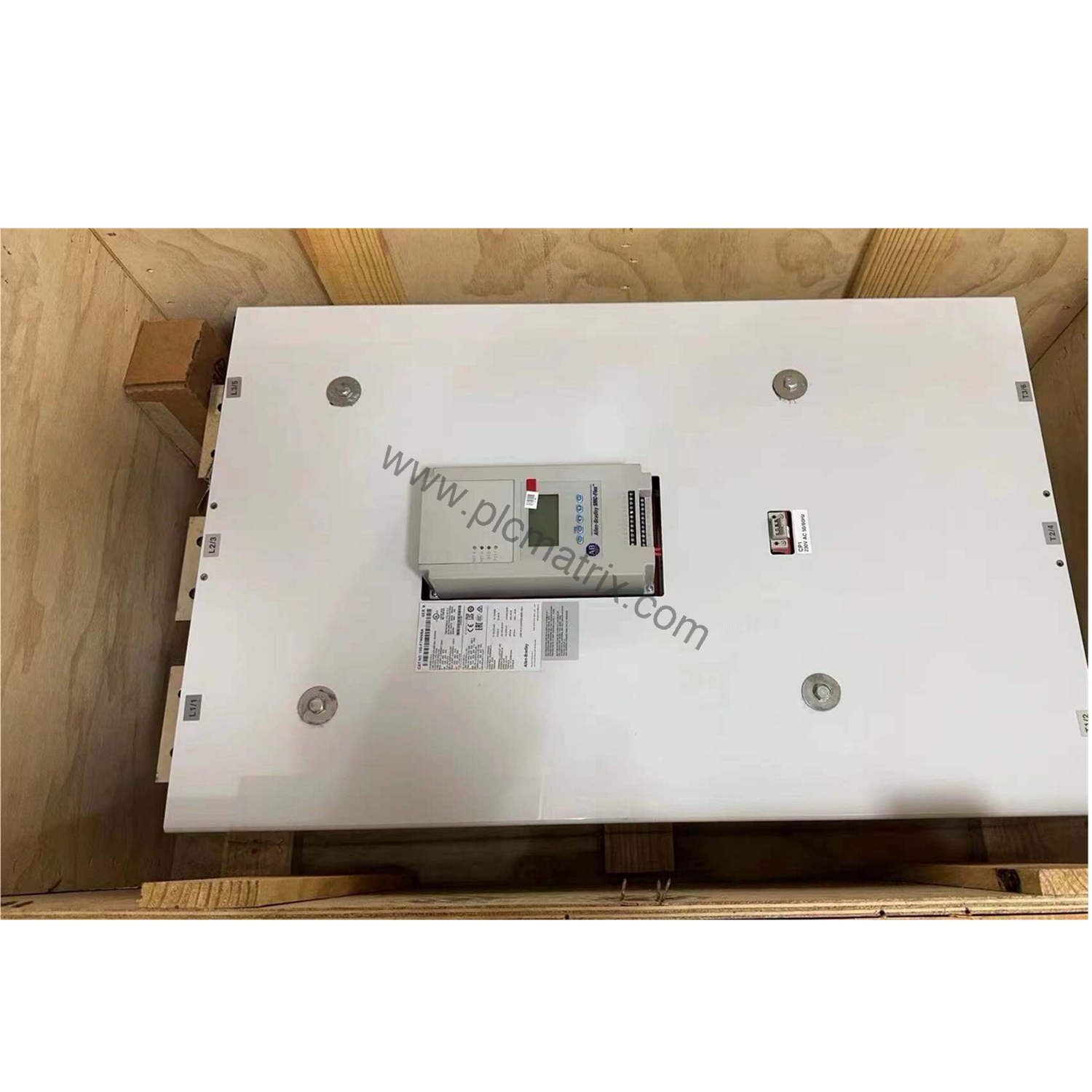

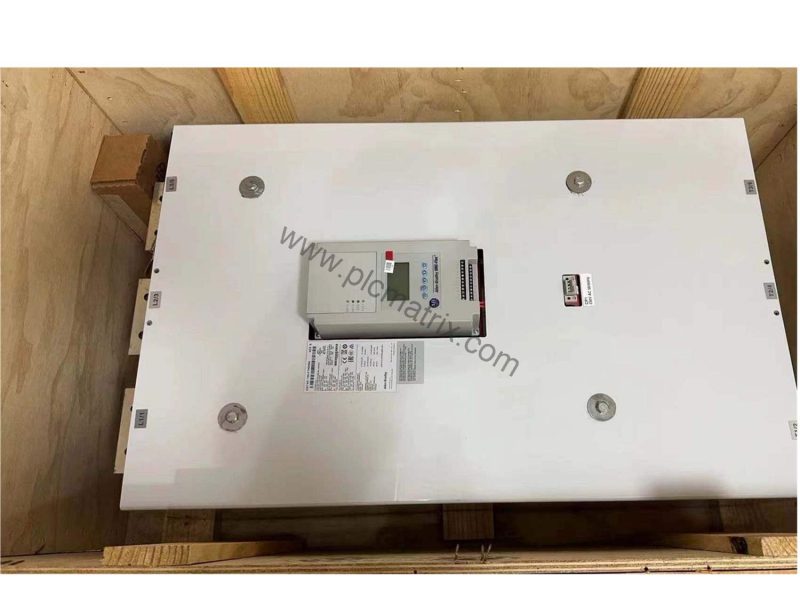

Allen-Bradley 150-F361NCD SMC-50 Solid State Controller 361A 300HP

Product Introduction

When industrial motors demand precise starting and stopping control, the Allen-Bradley 150-F361NCD SMC-50 solid state controller delivers reliable performance. This controller belongs to the SMC-Flex product line and provides microprocessor-based control for three-phase squirrel cage induction motors. With an open enclosure design, it suits panel-mounted installations where operators need easy access for configuration and maintenance.

Technical Specifications Breakdown

The 150-F361NCD handles a controller rating of 361 Amps and 300 Horsepower at 460 Volts AC. Its input line voltage spans 200-575 Volts AC, three-phase, supporting both 50 and 60 Hertz frequencies. The control voltage operates at 100-240 Volts AC for units rated 5-480 Amps. The rated voltage is 500 or 575 Volts AC. These specifications make the controller suitable for medium to large motor applications requiring robust current handling.

Industry Applications

This solid state controller excels in industries such as manufacturing, mining, and water treatment. For example, in a conveyor system moving heavy materials, the 150-F361NCD provides soft start functionality to reduce mechanical stress and extend belt life. In pump applications, torque control start minimizes water hammer and protects piping. The controller also supports linear speed acceleration for applications needing gradual speed changes, like mixers or centrifuges.

Installation & Setup Guidance

Mount the 150-F361NCD in a clean, dry enclosure with adequate ventilation. Ensure the input line voltage matches the 200-575V AC three-phase supply. Connect the control voltage to a 100-240V AC source. Use appropriately rated wiring for 361 Amps continuous current. The programmable keyboard and LCD simplify configuration of start modes like soft start, current limit start, and kickstart. Always follow the manufacturer's wiring diagram for safe installation.

Maintenance & Reliability

Routine inspection of the controller's enclosure and connections helps maintain reliable operation. Check for dust buildup on heat sinks and ensure cooling airflow remains unobstructed. The built-in electronic motor overload protection with SCR or run bypass features adds a layer of safety. Periodically verify that the controller's parameters match the motor's requirements. For critical applications, consider spare unit availability to minimize downtime.

Selection Guide & Purchasing Advice

Before purchasing the 150-F361NCD, verify your motor's full-load current and voltage rating to ensure compatibility. This controller works with standard three-phase squirrel cage induction motors and Wye-Delta (6-lead) motors. BluePLC Industrial stocks this model and can assist with availability and lifecycle status. Contact their team for current pricing and lead times. For complete technical specifications for the 150-F361NCD, please contact BluePLC Industrial.
