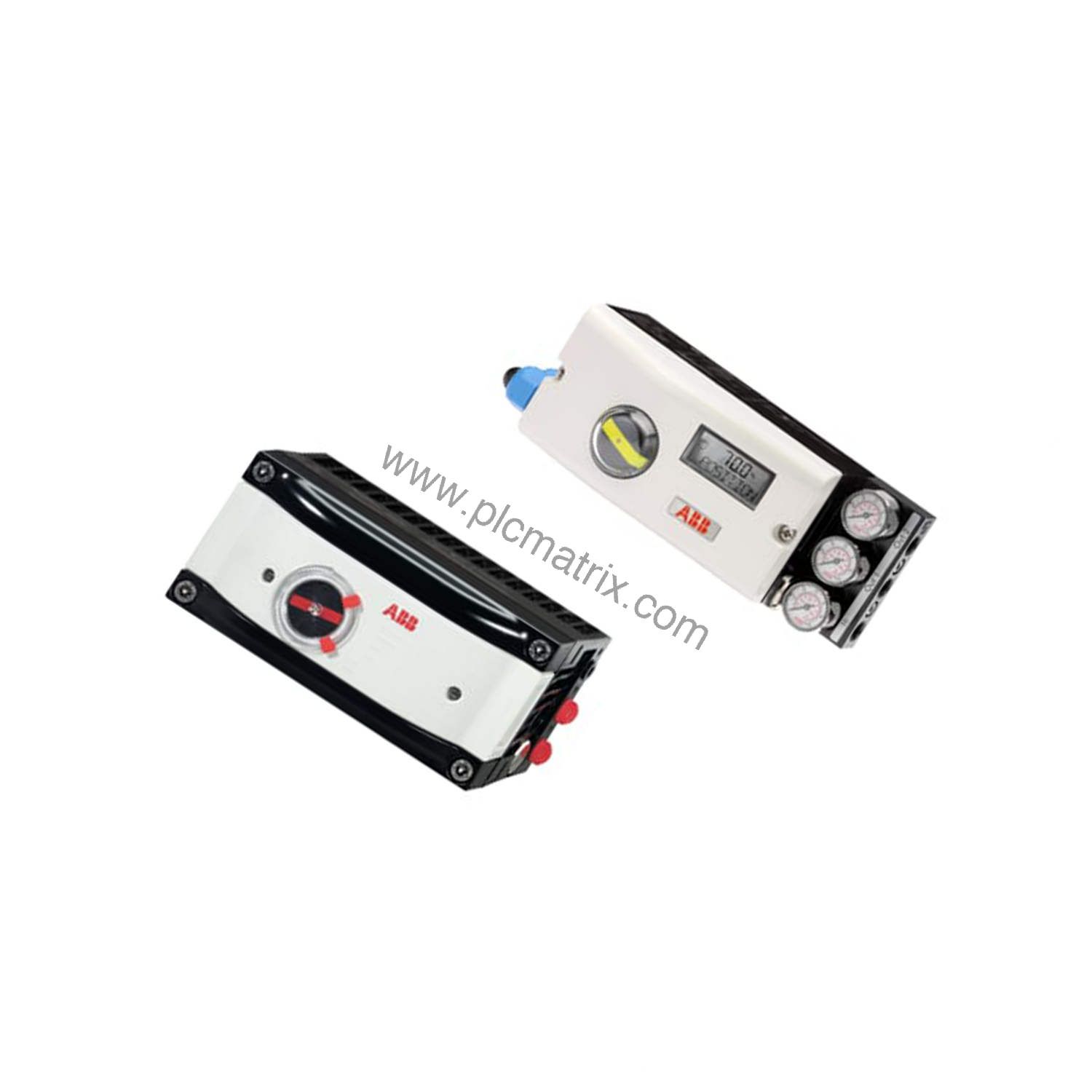

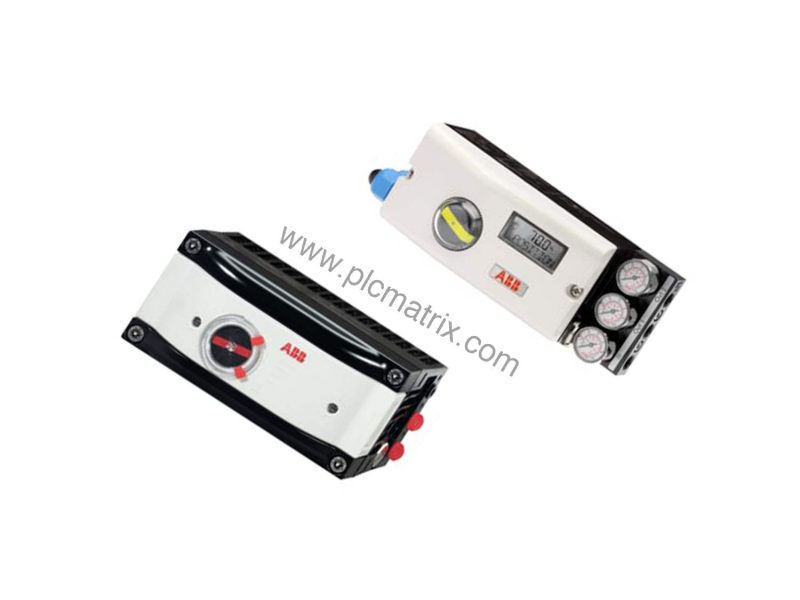

ABB V18347-2041150001 TZIDC-120 Electro-Pneumatic Positioner for FOUNDATION Fieldbus

Product Overview

When process variability drives downtime and waste, the ABB V18347-2041150001 TZIDC-120 electro-pneumatic positioner delivers precise, repeatable valve control. This intelligent, configurable unit communicates via FOUNDATION Fieldbus, reducing wiring costs and simplifying integration. Its robust design minimizes maintenance needs, directly improving your bottom line.

Technical Specifications Breakdown

The V18347-2041150001 features an aluminum case with IP65 / NEMA 4X protection, ensuring long-term reliability in dusty or wet environments. ATEX EEx ia IIC T6 certification allows safe operation in hazardous areas, avoiding costly safety retrofits. The single-acting, fail-safe output protects your process during power loss, preventing expensive product loss or equipment damage. Ambient temperature tolerance from -40 °C to +85 °C covers extreme conditions without additional climate control investments.

Industry Applications

In chemical processing, the TZIDC-120's FOUNDATION Fieldbus interface reduces installation and commissioning time, lowering project costs. For oil and gas facilities, the ATEX rating and IP65 enclosure eliminate the need for separate protective cabinets, saving capital expenditure. The mechanical position indicator and operator panel simplify local diagnostics, cutting troubleshooting labor hours.

Installation & Setup Guidance

Mount the V18347-2041150001 directly to linear actuators per DIN/IEC 534/NAMUR or to rotary actuators per VDI/VDE 3845. Use M20 x 1.5 cable threads and 1/4-18 NPT air pipe threads as specified. Ensure screw terminals are not strained — max 1.0 mm² for options, 2.5 mm² for analog signal. Proper installation avoids field failures and rework costs.

Maintenance & Reliability

The stove-hardened epoxy varnish and aluminum housing resist corrosion, extending service life. With 95% relative humidity tolerance (condensation permissible) during operation, the positioner handles challenging environments without frequent inspections. This durability reduces spare parts inventory and unplanned shutdown expenses.

Compatibility & Integration

FOUNDATION Fieldbus communication enables seamless connection to leading DCS and PLC systems, eliminating protocol converters. The configurable design allows quick parameter adjustments via the operator panel, reducing setup time. Verify compatibility with your existing fieldbus infrastructure to maximize ROI.

Buying Guide

Before purchasing the ABB V18347-2041150001, confirm your actuator type (linear or rotary) and required fail-safe action. This model includes no shutdown module or digital position feedback option — order separately if needed. Contact BluePLC Industrial for current availability and lifecycle status to ensure timely delivery and support.
