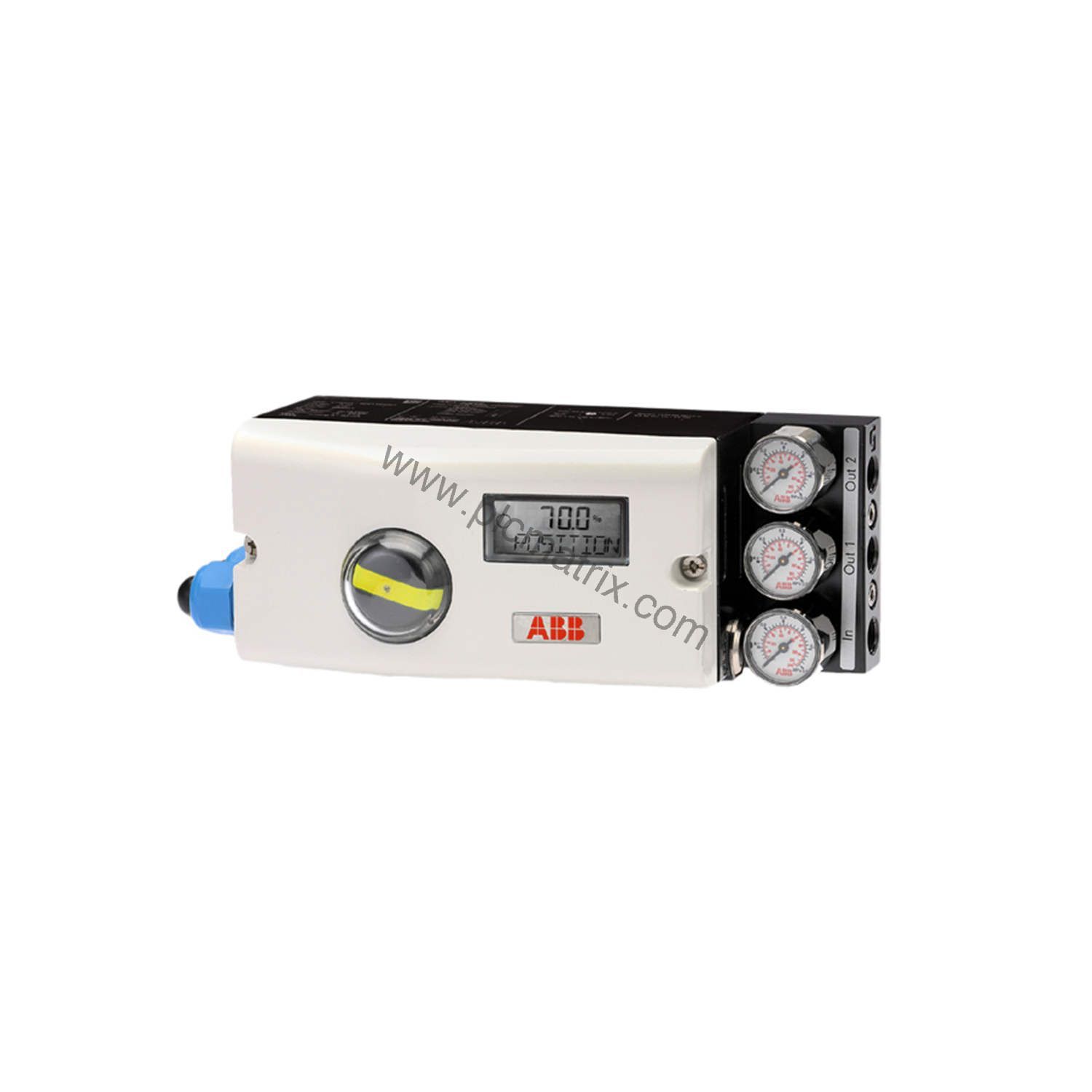

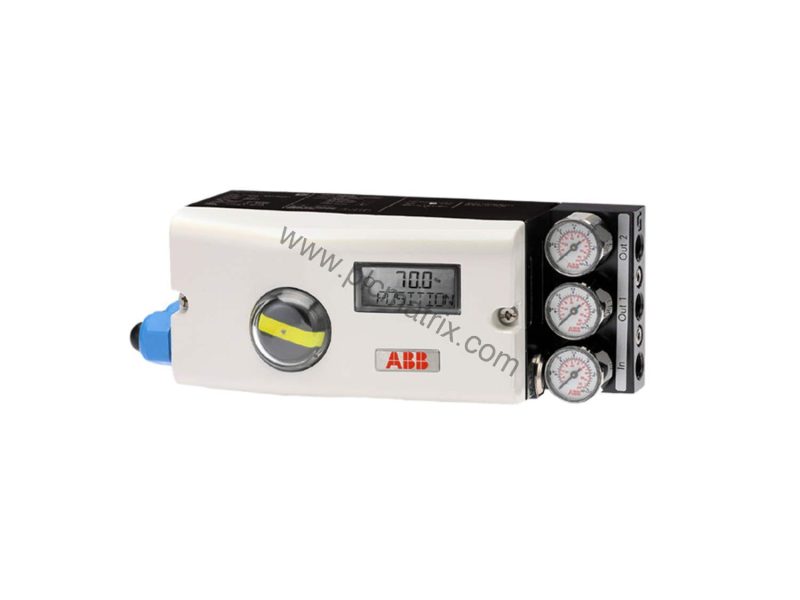

ABB V18345-2020521001 TZIDC Electro-Pneumatic Positioner Overview

Introduction

In the evolving landscape of industrial automation, precise valve control has become a cornerstone of process efficiency. The ABB V18345-2020521001 TZIDC electro-pneumatic positioner represents a significant step forward, combining robust hardware with intelligent communication. Designed for linear and rotary actuators, this positioner handles demanding environments while delivering reliable performance.

Technical Specifications Breakdown

The V18345-2020521001 operates with a nominal input signal of 4...20 mA via two-wire technology. It supports split range configuration between 20% and 100% of the nominal range. Maximum input is 25 mA at 30 V, with a minimum of 3.4 mA without analog position feedback or 3.5 mA with it. Load voltage at 20 mA is 8.7 V DC without explosion protection, and impedance is 435 ohms. The digital input accepts 24 V DC (12...30 V DC) with logic levels: 0...10 V DC for logical "0" and 12...30 V DC for logical "1". Output range is 0...6 bar (0...90 psi). Air capacity at 1.4 bar supply is 5.0 kg/h, and at 6 bar supply it is 13 kg/h. The positioner is housed in an aluminum, varnished case with IP 65 (NEMA 4X) protection. Weight is 1.7 kg.

Industry Applications

In chemical processing plants, the V18345-2020521001 ensures accurate valve positioning for critical flow control. Its double acting fail freeze output maintains the actuator position during power loss, preventing process upsets. In oil and gas applications, the HART communication module enables remote configuration and diagnostics, reducing manual intervention. The IP 65 enclosure withstands harsh outdoor conditions.

Installation & Setup Guidance

Mount the positioner to linear actuators per DIN/IEC 534 / NAMUR or to rotary actuators per VDI/VDE 3845. Use cable threads of 1/2-14 NPT and air pipe threads of 1/4-18 NPT. Connect the 4...20 mA two-wire input and ensure the digital input voltage is within 12...30 V DC. Configure the split range as needed between 20% and 100% of nominal range. For double acting actuators, set the output function to vent or block on power failure.

Maintenance & Reliability

Regularly inspect the air connections and cable entries for tightness. Verify the mechanical position indicator aligns correctly. Check the analog position feedback signal range of 4...20 mA periodically. The aluminum case resists corrosion, but keep the unit clean and free from debris. Follow manufacturer guidelines for any internal servicing.

Compatibility & Integration

The V18345-2020521001 integrates with any 4...20 mA control system supporting HART communication. It works with single or double acting actuators. The analog position feedback module provides a 4...20 mA output for monitoring. The digital output follows DIN 19234/NAMUR standards. Ensure the supply voltage for the digital output is 5...11 V DC.

Selection Guide & Purchasing Advice

Before ordering, verify the actuator type (linear or rotary) and required fail-safe action. The V18345-2020521001 offers double acting fail freeze. Confirm the input signal is 4...20 mA and that HART communication is needed. For applications without explosion protection, this standard version is suitable. Contact BluePLC Industrial for current availability and lifecycle status.
