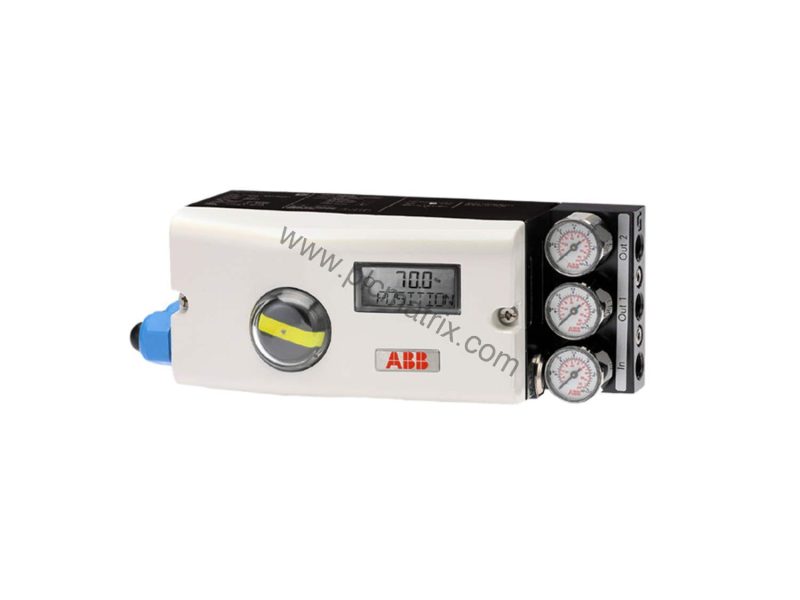

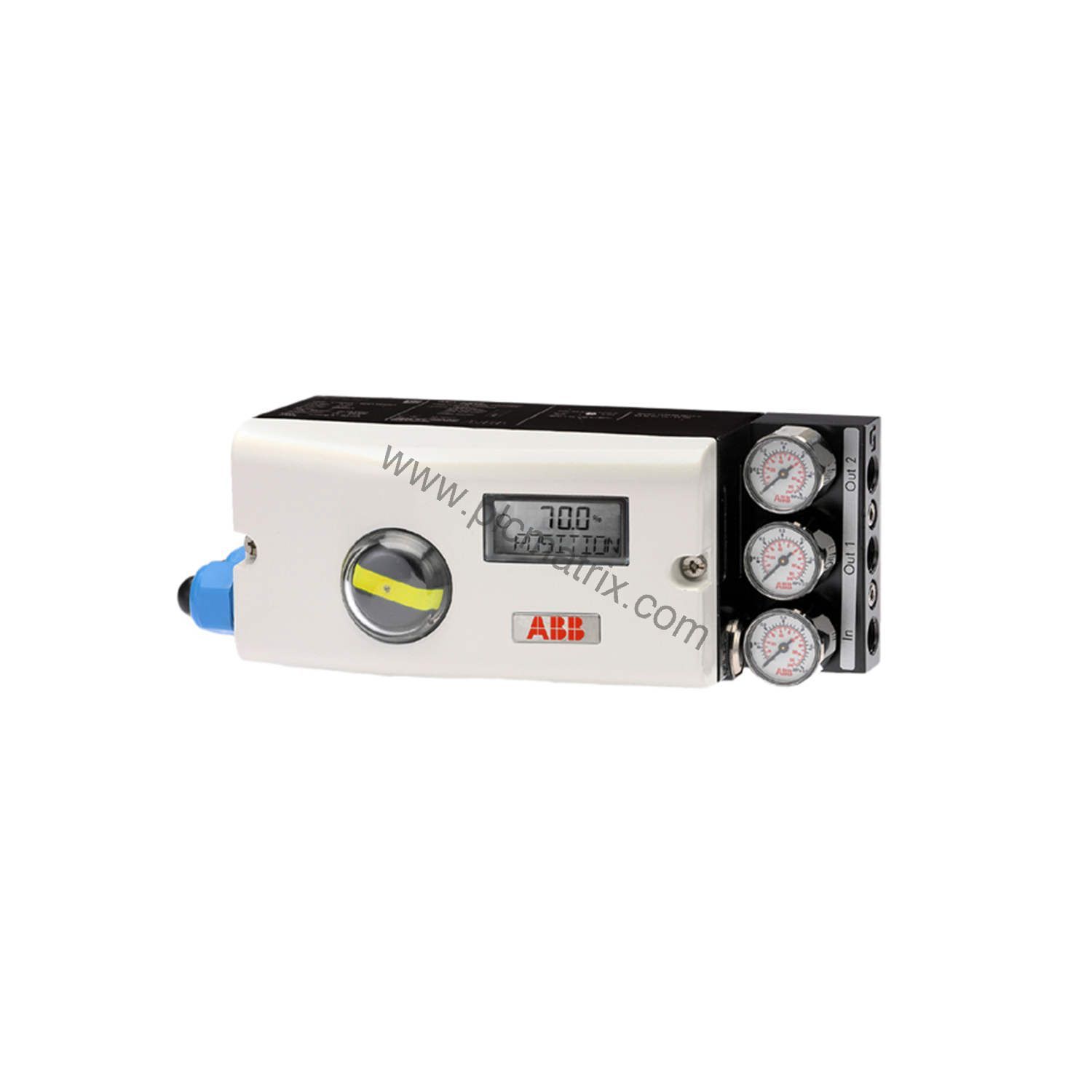

ABB V18345-2010521001 TZIDC Electro-Pneumatic Positioner for Precise Valve Control

Product Introduction: Solving Valve Positioning Challenges

When your process demands precise valve positioning, the ABB V18345-2010521001 TZIDC Electro-Pneumatic Positioner delivers reliable performance. This positioner is designed for linear actuators per DIN/IEC 534/NAMUR and rotary actuators per VDI/VDE 3845, making it a versatile solution for many industrial applications. With a robust aluminum varnished case and mechanical position indicator, it withstands harsh environments while providing clear visual feedback.

Technical Specifications Breakdown

The V18345-2010521001 operates on a 4–20 mA two-wire input signal, using a connector plug for LKS adapter. It features double-acting fail freeze action, meaning the valve holds its last position if electrical power is lost—critical for safety and process stability. The unit includes a plug-in module for analog position feedback (4–20 mA, two-wire), enabling remote monitoring. Air and cable connections use 1/4-18 NPT and 1/2-14 NPT threads respectively, ensuring compatibility with standard pneumatic and electrical fittings. Weighing only 1.7 kg, this positioner is compact yet rugged.

Industry Applications: Real-World Use Cases

In chemical processing, the ABB V18345-2010521001 ensures accurate control of flow control valves, reducing product variability and waste. For power generation plants, its fail freeze feature prevents unwanted valve movements during power interruptions, enhancing system reliability. The positioner's ability to work with both linear and rotary actuators makes it suitable for diverse applications such as steam control, water treatment, and oil & gas pipelines.

Installation & Setup Guidance

Mount the V18345-2010521001 directly onto the actuator using the appropriate bracket for your actuator type. Connect the 4–20 mA signal to the input port, and attach air supply lines to the 1/4-18 NPT ports. For electrical connections, use the 1/2-14 NPT cable entry. Commissioning is straightforward: simply press the single front panel button to start the Autoadjust function, which automatically adapts device parameters for linear or rotary actuators. The two-line LC display shows current position, setpoint, and diagnostic codes, simplifying setup and monitoring.

Maintenance & Reliability

The TZIDC positioner includes built-in monitoring functions that detect issues like out-of-range signals, positioning timeouts, and counter limit exceedances. These diagnostics help you schedule maintenance proactively, reducing unplanned downtime. The diagnosis parameters track valve travel and movement count, providing data to optimize service intervals. Regular inspection of the mechanical position indicator and air connections ensures long-term reliability. For critical applications, periodic verification of the fail freeze function is recommended.

Buying Guide & Selection Advice

Before purchasing the ABB V18345-2010521001, verify your actuator type (linear or rotary) and ensure the mounting kit matches the V18345-2010521001 case design. Confirm that your control system provides a 4–20 mA signal and that you have the necessary HART communicator for advanced diagnostics. BluePLC Industrial stocks this positioner and can help with compatibility questions. Contact us to check current availability and lead times.
