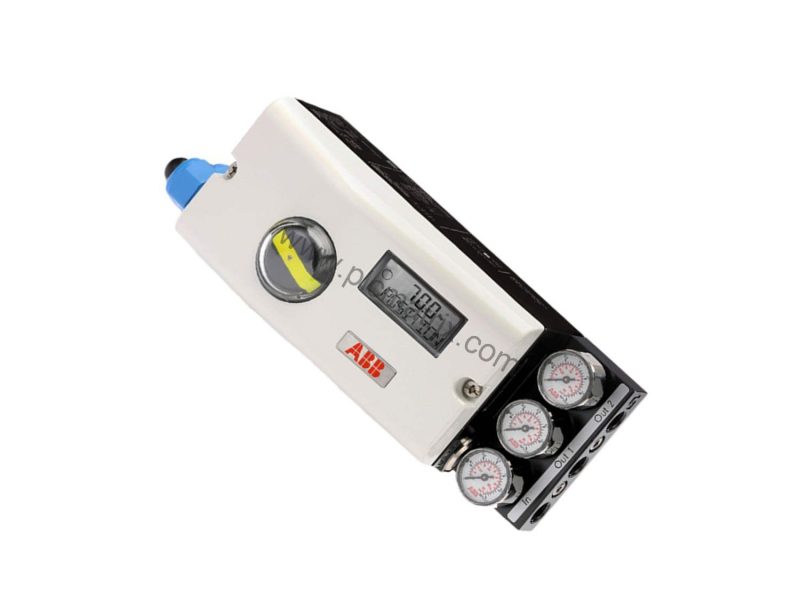

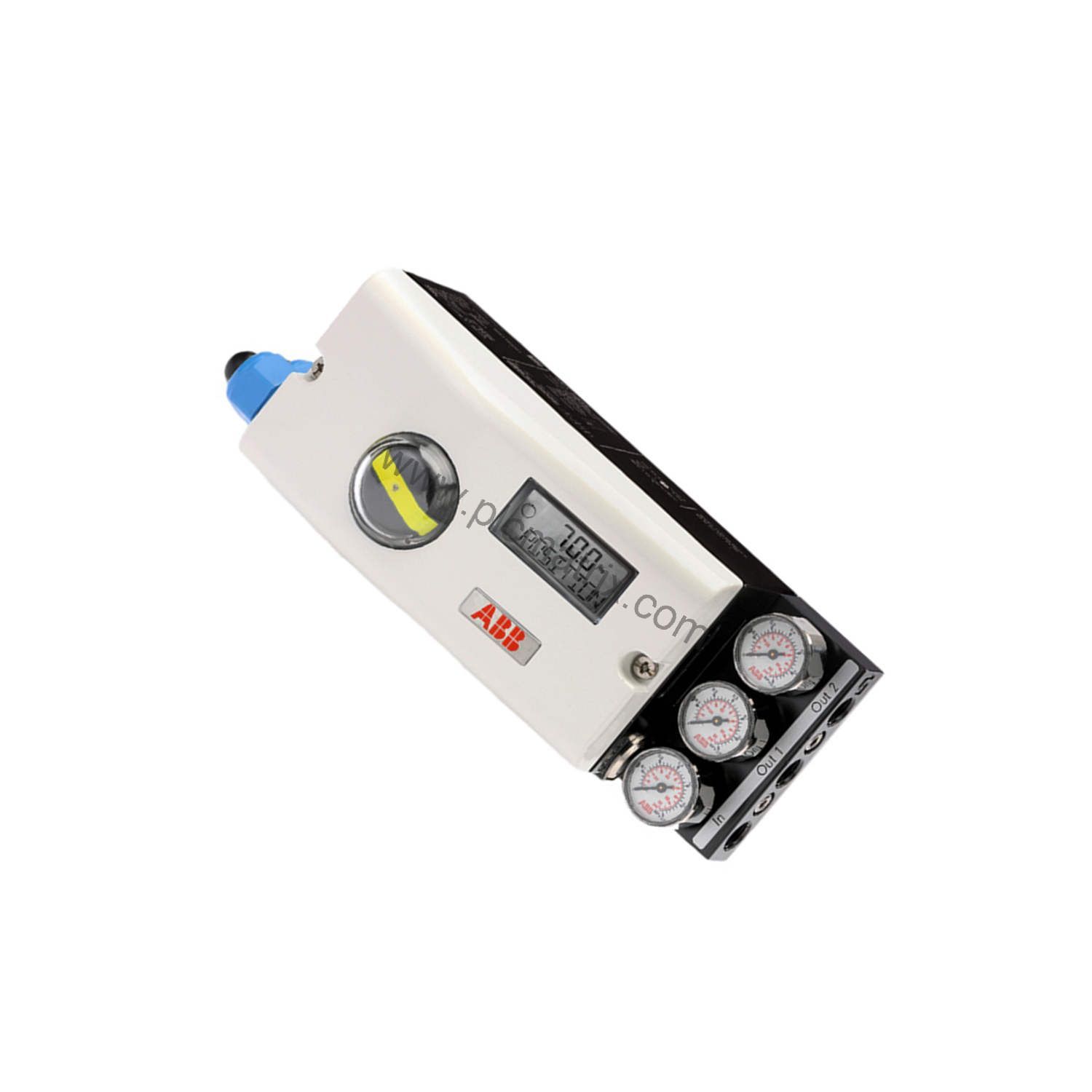

ABB V18345-2010421001 TZIDC Electro-Pneumatic Positioner – Cost-Efficient Valve Control

Product Introduction

When process valve positioning drifts or fails, production losses and safety risks escalate quickly. The ABB V18345-2010421001 TZIDC electro-pneumatic positioner delivers precise, intelligent valve control to eliminate these costly problems. Part of the TZIDC series, this configurable positioner combines an intuitive operator panel with a mechanical position indicator, making setup and monitoring straightforward. Its robust aluminum housing with IP 65 (NEMA 4X) protection withstands harsh industrial environments, reducing unplanned replacements and associated expenses.

Technical Specifications Breakdown

The V18345-2010421001 operates on a 4...20 mA two-wire input, ensuring compatibility with standard control systems while minimizing wiring costs. Its double-acting, fail-safe output maintains valve position during power loss, preventing expensive process disruptions. The analog position feedback module provides a 4...20 mA signal (configurable split ranges) with a characteristic deviation of less than 1%, enabling precise monitoring that reduces product waste and rework. Supply pressure ranges from 1.4 to 6 bar (20 to 90 psi), and air consumption stays below 0.03 kg/h (0.015 scfm), lowering compressed air energy expenses over the equipment's lifetime. The digital input accepts 0...5 V DC for logic "0" and 11...30 V DC for logic "1", while the digital output (NAMUR) operates at 5...11 V DC, simplifying integration with existing safety circuits.

Industry Applications

In chemical processing, the V18345-2010421001's fail-safe double-acting output ensures critical valves move to a safe position during power interruptions, preventing hazardous material releases and costly cleanup. For oil and gas pipelines, the analog feedback module's <1% deviation allows operators to detect drift early, scheduling maintenance before unplanned shutdowns occur. Water treatment facilities benefit from the positioner's IP 65 aluminum housing, which resists corrosion and reduces replacement frequency, directly lowering total cost of ownership.

Installation & Setup Guidance

Mount the V18345-2010421001 to linear actuators per DIN/IEC 534/NAMUR or to rotary actuators per VDI/VDE 3845 using the included mechanical position indicator. Connect pneumatic lines via 1/4-18 NPT threads and electrical cables via 1/2-14 NPT. The two-wire 4...20 mA input simplifies wiring—no separate power supply needed for the signal loop. Configure split ranges and direct/reverse action through the operator panel to match your valve stroke, reducing commissioning time and labor costs.

Maintenance & Reliability

Routine inspection of pneumatic connections and cable glands helps maintain IP 65 integrity, preventing moisture ingress that could cause corrosion. The electrostatic epoxy varnish (black RAL 9005) resists chemical exposure, extending service life. With air consumption under 0.03 kg/h, the positioner minimizes energy waste—a direct savings on compressed air costs. Periodic verification of analog feedback accuracy (within 1% deviation) ensures consistent valve positioning, avoiding off-spec production and rework expenses.

Selection Guide & Purchasing Advice

Before ordering the V18345-2010421001, verify your actuator type (linear or rotary) and mounting standard to ensure compatibility. Confirm supply pressure (1.4...6 bar) and electrical input (4...20 mA) match your system. For applications requiring digital position feedback, consider the optional proximity switch module (NAMUR). BluePLC Industrial stocks this ABB positioner and can advise on accessory modules to match your process requirements, helping you avoid costly mismatches and downtime.
