ABB V18345-1027420001 Electro-Pneumatic Positioner for Industrial Valve Control

Product Overview

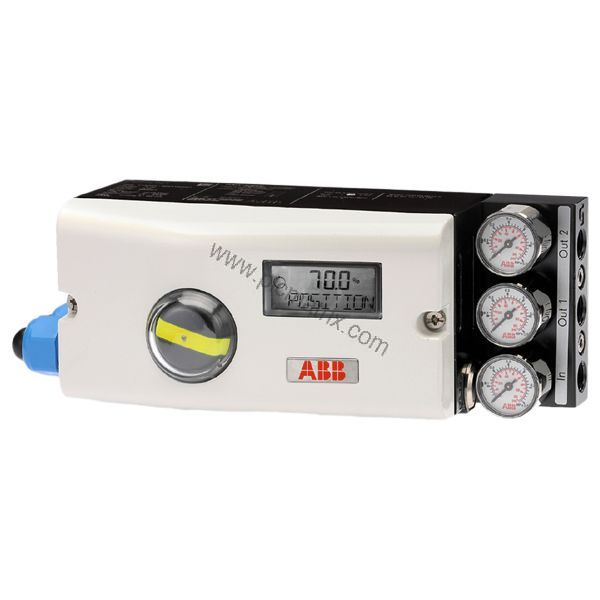

When precise valve positioning is critical in demanding industrial environments, the ABB V18345-1027420001 electro-pneumatic positioner delivers reliable performance. This positioner is designed for linear actuators per DIN/IEC 534/NAMUR and rotary actuators per VDI/VDE 3845, making it a versatile choice for process control applications. Housed in a varnished aluminum case with IP 65 (NEMA 4X) protection, it withstands dust and water ingress, ensuring long service life in harsh conditions.

Key Technical Specifications

The V18345-1027420001 operates with a 4-20 mA two-wire input signal, supporting split range configuration between 20% and 100% of the nominal range. Its input impedance is 435 ohms without explosion protection and 485 ohms for intrinsically safe devices. The output range covers 0-6 bar (0-90 psi), suitable for a wide variety of actuators. Air capacity at 1.4 bar supply pressure is 5.0 kg/h (3.9 Nm³/h, 2.3 scfm), and at 6 bar supply pressure it reaches 13 kg/h (10 Nm³/h, 6.0 scfm). Travel angle for rotary actuators ranges from 25 to 120 degrees (optionally 270 degrees), and for linear actuators 25 to 60 degrees. Travel time prolongation and positioning time limit are both configurable from 0 to 200 seconds.

Industry Applications

This positioner excels in chemical processing, oil and gas, and power generation facilities where accurate valve modulation is essential. For example, in a refinery, the V18345-1027420001 can control a double-acting actuator on a control valve, maintaining precise flow rates despite varying process pressures. Its fail-safe behavior vents or blocks the actuator upon electrical power failure, enhancing system safety. The GOST Russia Ex II 2 G EEx ib II C T6 explosion protection makes it suitable for hazardous areas with flammable gases.

Installation and Setup

Mounting the V18345-1027420001 is straightforward. For linear actuators, use the NAMUR interface; for rotary actuators, follow VDI/VDE 3845 guidelines. The unit features a cable thread of 1/2-14 NPT and an air pipe thread of 1/4-18 NPT. Ensure the input signal is within 4-20 mA and the supply air is clean and dry. Configure the split range and travel limits via the onboard settings to match your actuator's stroke. Always verify the fail-safe position matches your process requirements.

Maintenance and Reliability

Regular inspection of the air supply filter and connections helps maintain consistent performance. The aluminum case resists corrosion, but periodic checks of the enclosure seals ensure IP 65 integrity. The digital output follows NAMUR (DIN 19234) standards, providing diagnostic feedback. By monitoring the positioning time limit (0-200 seconds), operators can detect wear or sticking early, reducing unplanned downtime. This proactive approach extends the positioner's operational life and maintains process efficiency.

Selection and Purchasing Advice

When ordering the ABB V18345-1027420001, confirm your actuator type (linear or rotary) and required fail-safe action. This model includes double-acting fail-safe functionality. Verify the explosion protection class matches your zone classification—this unit carries GOST Russia Ex II 2 G EEx ib II C T6. For applications needing analog or digital position feedback, consider optional modules (not included). BluePLC Industrial offers this positioner with expert support to ensure you select the right configuration for your process control system.
